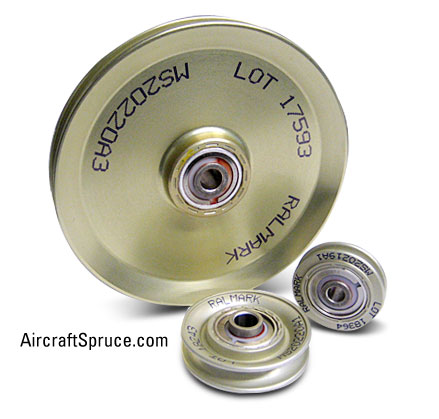

(Click image for a larger view) | Dimensions of these aluminum pulleys are same as equivalent size of MS20219 and MS20220 phenolic pulleys.
|
Part Number
|
Cable Size (in.)
|
OD
|
Grove Dia.
|
Hub Dia.
|
Bore Dia.
|
Width
|
|
MS20219A1
|
1/16, 3/32
|
1.312
|
1.00
|
.423
|
.2500
|
.438
|
|
MS20219A3
|
1/16, 3/32
|
1.750
|
1.438
|
.769
|
.6250
|
.438
|
|
MS20220A1
|
1/8, 5/32, 3/16
|
1.755
|
1.255
|
.475
|
.3125
|
.625
|
|
MS20220A2
|
1/8, 5/32, 3/16
|
3.005
|
2.505
|
.115
|
.3125
|
.625
|
|
MS20220A3
|
1/8, 5/32, 3/16
|
4.255
|
3.755
|
.115
|
.3125
|
.625
|
|
MS20220A4
|
1/8, 5/32, 3/16
|
5.505
|
5.005
|
.115
|
.3125
|
.625
|
|
