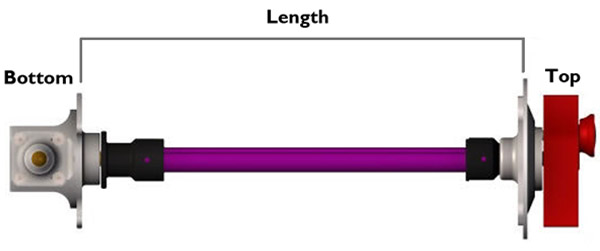

 For use with any Andair valve.
The kit includes everything needed
to operate the valve remotely
by way of a specially extruded
tube. There is no riveting
involved, just cut the tube down
to length and fit together. To
maintain the firm detent at each
tank selection, there is a detent cap on the top of the valve. The special
tube then fits into this. Then, so as to maintain the safety feature,
where the valve cannot be inadvertently switched off, the button has
been moved to the upper section. Like the standard valves, the button
must be raised to switch the fuel off. The tube is available 6” or
12” long and 4 extension options are available. These extension kits can be supplied to fit an already purchased fuel selector. |
Option |
Size(In.) |
Price |
|
Option |
Size(In.) |
Price |
ET |
6 |
Call or Email for price and availability |
|
ET |
12 |
Call or Email for price and availability |
1JL |
6 |
|
1JL |
12 |
2JU |
6 |
|
2JU |
12 |
E |
Valve Part No. |
ET
|
6 |
Length of extension tube:
6 = 6" long.
12 = 12" long. |
1JU |
12 |
2UJ |
|
ET: with one universal joint on lower part of valve
UJL: with one universal joint on the upper section
of the valve
UJU: with 2 universal joints. |
Example:
E-FS25f5-M-ET-6 = (6”long, 1/2”Left, Main, Right, Off, Straight Ext. Valve)
E-FS20-20-D2-6M-2UJ-12 = (12”long, 3/8”duplex fuel selector extension with
2 UJs and 12” tube). |

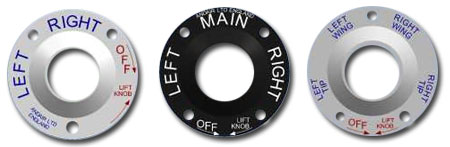

SPECIAL ENGRAVING - Andair can offer special engraving for all
of the available valves. Please contact the Aircraft Spruce technical
department for more information. Here are some examples:  |
|
|
