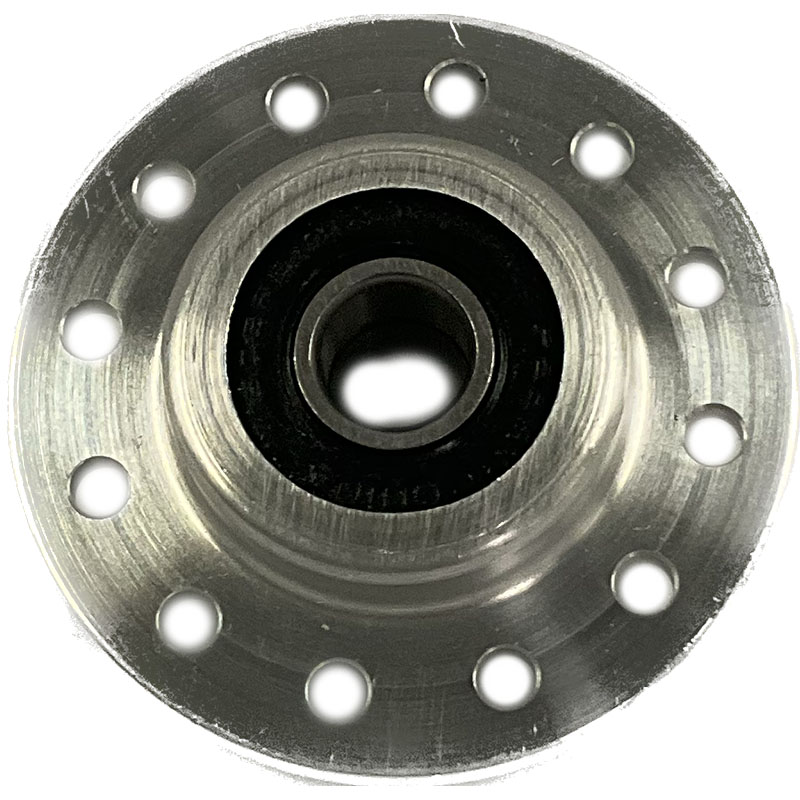

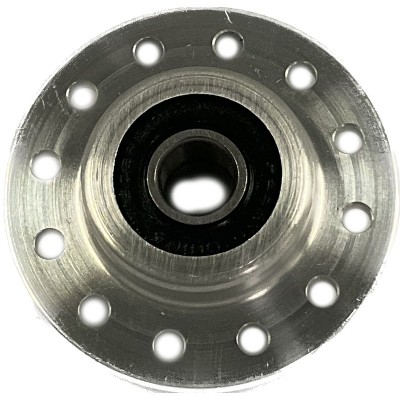

| BELLCRANK BEARINGS - HOLE DIAMETER .3125 (BC5W11) |
|
| |
(Click image for a larger view) |
| Flange thickness |
.100 |
| Flange O.D. |
1.625 |
| Hub diameter |
.870 |
| Hole diameter |
.3125 |
| O.A.L. |
.625/.630 |
| Hole Pattern |
1.375 BC w/12 holes |
| Hole Dia. |
.128 |
|
|
| |
|
|
|
- All Bearings are 100% traceable, Cert's available
- Inspected per Mil. I 45208A
- Manufactured for the Experimental
- Prepacked with lubricant conforming to Mil. -G23827
- Operating temperature range -30 Deg. F to +250 Deg. F
|
| Description |
Part No. |
Price |
Buy |
| BELLCRANK BEARING BC5W11 | 05-02101 | $24.50 |
|
|
| Similar Items |
Part No. |
Price |
Buy |
| BC4W10 BELLCRANK BEARING | 05-03451 | $19.75 |
|
| BELLCRANK BEARING BCP4W10 | 05-00552 | $94.65 |
|
|
