  Airframe Parts - Baffling Material - Cessna Baffles - 206 Late Models

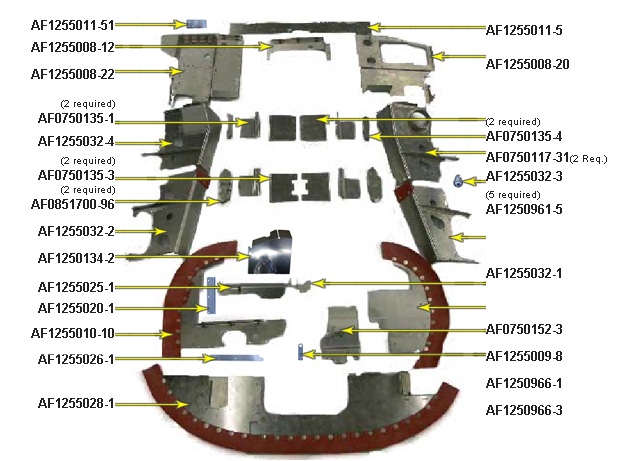

CESSNA 206 (LATE MODEL) BAFFLES
AF1255011-51
AF1255008-12
AF1255008-22
(2 required)
AF0750135-1
AF1255032-4
(2 required)
AF0750135-3
(2 required)
AF0851700-96
AF1255032-2
AF1250134-2
AF1255025-1
AF1255020-1
AF1255010-10
AF1255026-1
AF1255028-1
AF1255011-5
AF1255008-20

(2 required)
AF0750135-4
AF0750117-31(2 Req.)
AF1255032-3
(5 required)
AF1250961-5
AF1255032-1
AF0750152-3
AF1255009-8
AF1250966-1
AF1250966-3
NOTE: "AF" part numbers are Cessna P/N's
All baffles are bare 6061-T6 aluminum unless the powder coating option is chosen. The powder coating finish is a black and grey hammertone. Powder coating option available for an additional 15%.
Please email or call for more details.
The silicone baffle seal material can be special ordered in
orange, dark blue or black by calling 1-877-477-7823 or by email.
Eligibility:
U206: Serial No. U20602200 thru U20607020
Complete Cessna C-206 Baffle Set P/N 05-03285 $2778.00
Description Part No. Price Buy
Complete Cessna C-206 Baffle Set05-03285$2778.00
AF1255011-51 Baffle Component05-03232$30.00
AF1255011-5 Baffle Component05-01579$28.00
AF1255008-12 Baffle Component05-01580$99.00
AF1255008-20 Baffle Component05-01581$472.00
AF1255008-22 Baffle Component05-01560$272.95
AF0750135-4 Baffle Component05-01561$25.00
AF0750135-1 Baffle Component05-01536$45.00
AF1255032-4 Baffle Component05-01572$318.95
AF0851700-96 Baffle Component05-01574$23.00
AF1255032-2 Baffle Component05-01575$290.95
AF1255020-1 Baffle Component05-03233$31.00
AF1250134-2 Baffle Component05-03234$50.00
AF1255010-10 Baffle Component05-01577$71.00
AF1255028-1 Baffle Component05-01578$194.95
AF1255025-1 Baffle Component05-01576$40.00
AF1255026-1 Baffle Component05-03235$19.00
AF1250966-3 Baffle Component05-03236$16.00
AF0750152-3 Baffle Component05-01590$17.00
AF1250966-1 Baffle Component05-01589$69.00
AF1255009-8 Baffle Component05-01588$96.00
AF1255032-1 Baffle Component05-01587$219.95
AF0750135-3 Baffle Component05-01585$25.00
AF1250961-5 Baffle Component05-03237$29.00
AF1255032-3 Baffle Component05-01584$328.95
AF0750117-31 Baffle Component05-01582$39.00
