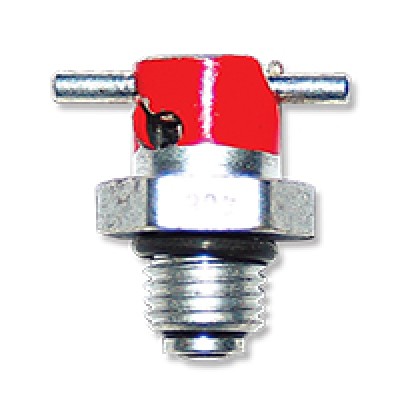

(Click image for a larger view) | Quick opening brass drain valve for aircraft oil or fuel systems. A slight twist opens valve. No safety wire needed in closed position. FAA approved. TSO-C76 Approved.
CCA-4300 SPECIFICATIONS:
Brass, Cadmium Plated
Thread Size: 7/16-Inch - 20 NF3
Length: 1.205-Inch
Lock Wire Drilled
Action: Spiral, Lock Open
Conforms To: USAF Spec. 28208, USAF 49F9798-52, ML-V-25023, MS29528-4, NSN-4820-00-107-3316, TSO-C76 |
Airframe Parts - Fuel Systems - Drain Valves
