 Airframe Parts - Bearings - DP Series

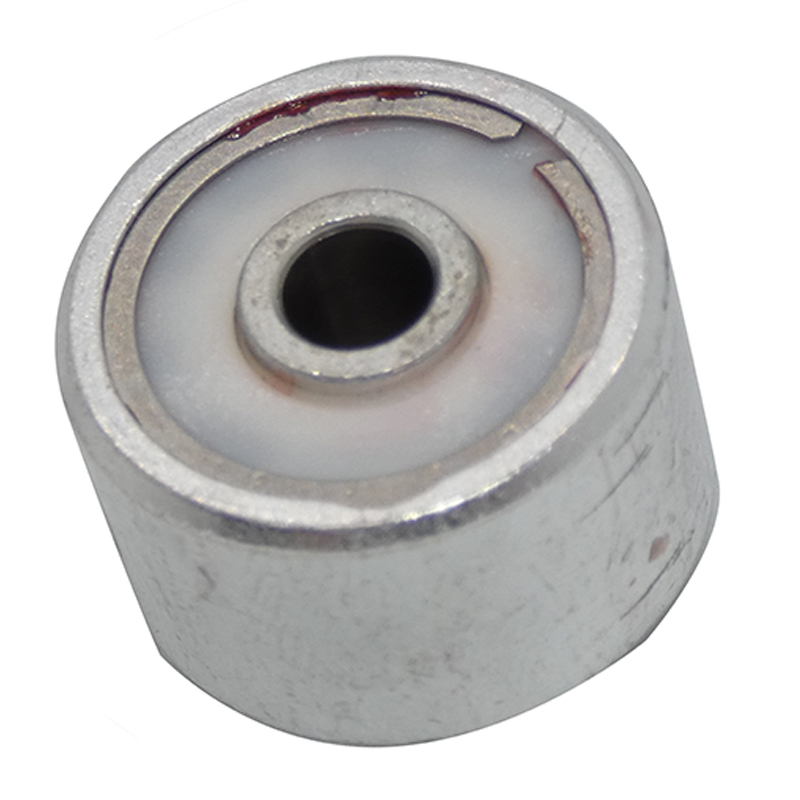

DP SERIES BEARINGS AN207 MS27644

  • Double row, ball, light and heavy duty
  • PTFE seals and CRES sealcaps
  • Exposed surfaces except bore, caps and seals are cadmium plated
  • Prelubricated for life
  • For use where high moment rigidity is required, DPP-W series only
  • Also offered with CRES 440C material and/or zinc nickel plating per OEM specifications

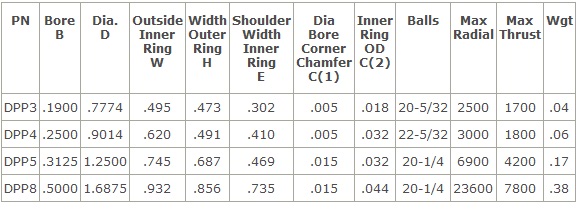

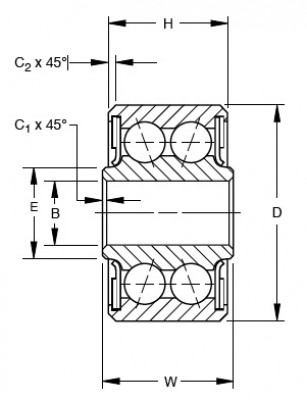

PN Bore
B		 Dia.
D		 Outside
Inner
Ring
W		 Width
Outer
Ring
H		 Shoulder
Width
Inner
Ring
E		 Dia
Bore
Corner
Chamfer
C(1)		 Inner
Ring
OD
C(2)		 Balls Max
Radial		 Max
Thrust		 Wgt Price Buy
DPP3.1900.7774.495.473.302.005.01820-5/3225001700.04$34.75
DPP4.2500.9014.620.491.410.005.03222-5/3230001800.06$27.75
DPP5.31251.2500.745.687.469.015.03220-1/469004200.17$43.70
DPP8.50001.6875.932.856.735.015.04420-1/4236007800.38$71.25
