Airframe Parts - Bearings - DSP Series

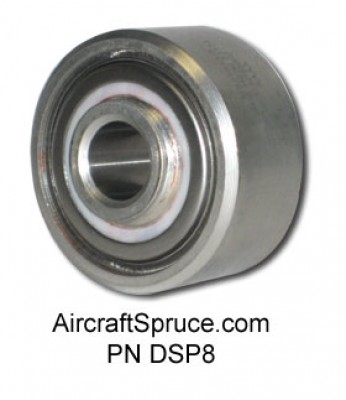

DSP SERIES BEARINGS AN206 MS27643

Double row, ball, self-aligning, heavy duty
PTFE seals and CRES sealcaps
Exposed surfaces except bore, caps, and seals are cadmium plated
Prelubricated for life
Also offered with CRES 440C material and/or zinc nickel plating per OEM specifications

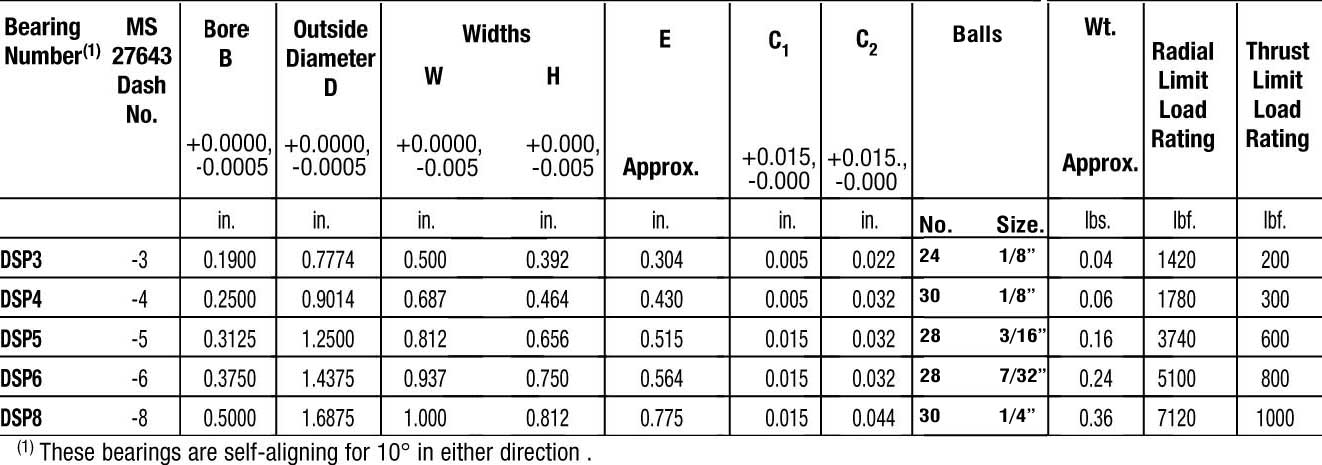

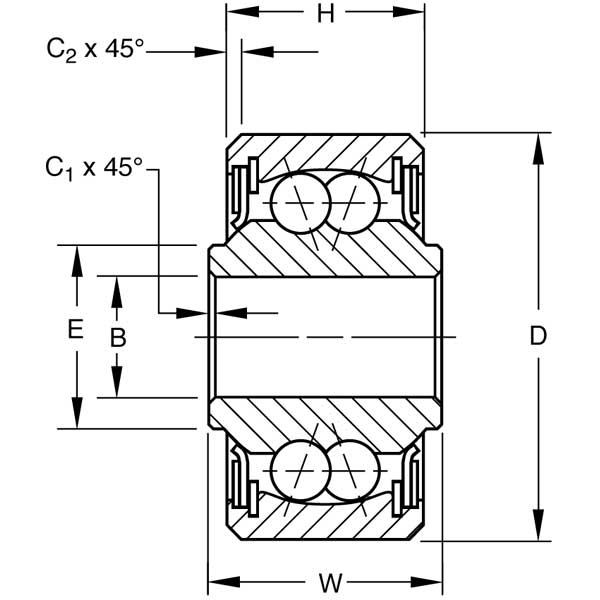

PN	Bore B	Diameter D	Outside Inner Ring W	Width Outer Ring H	Shoulder Width Inner Ring E	Dia Bore Corner Chamfer C(1)	Inner RIng OD C(2)	Balls	Max Radial	Max Thrust	Wgt	Price	Buy
DSP3	.1900	.7774	.500	.392	.304	.005	.022	24-1/2	1000	200	.04	$29.95
DSP4	.2500	.9014	.687	.464	.430	.005	.032	30-1/8	13000	300	.06	$30.65
DSP5	.3125	1.2500	.812	.656	.515	.015	.032	28-3/16	2600	600	.16	$34.80
DSP6	.3750	1.4375	.937	.750	.564	.015	.032	28-7/32	3600	800	.24	$79.60
DSP8	.5000	1.6875	1.000	.812	.775	.015	.044	30-1/4	5000	1000	.36	$115.95
