DUC FC WINDSPOON PROPELLERS
(ADJUSTABLE PITCH ON THE GROUND) |
|
| |

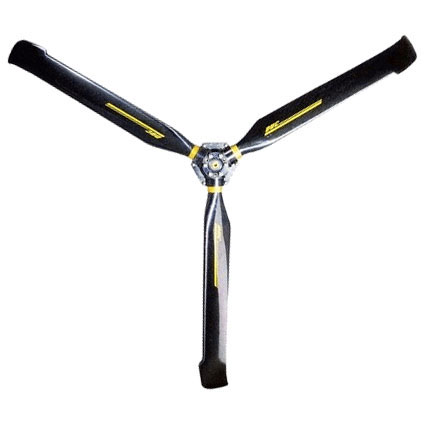

(Click image for a larger view) | The FC WINDSPOON propeller, with its revolutionary shape called WINDSPOON, offers unrivalled performance.
Its technical innovations have several consequences:
- Better performance.
- Lower fuel consumption
- Less Noise
The very special profile of the FC WINDSPOON blade has been calculated to optimize the airflow over the whole surface of the WINDSPOON.
The offset of the twisting results in better reduction of friction and a longer life.
The FC WINDSPOON propellers are produced in accordance with the strictest standards of the industry, with unique equipment specially made to ensure the highest quality.
Propeller is available in Two-Blade and Three-Blade.
For engines with high power, its structure can be reinforced (FC-R WINDSPOON).
The Inconel FC WINDSPOON blade is protected with Inconel metallic reinforcement. It increases the life of the propeller and also its performance due to a change in its inertial behavior.
Available Diameter:
068"
Weight:
- Two-blade Standard FC WINDSPOON 068" (6.62 lb)
- Three-blade Standard FC WINDSPOON 068" (8.93 lb)
- Two-blade Inconel FC WINDSPOON 068" (6.84 lb)
- Three-blade Inconel FC WINDSPOON 068" (9.26 lb)
Carbone ForgeŽ hub
The hub of the propeller is manufactured using the patented Carbon ForgedŽ. Made from layers of inidirectional carbon fiber epoxy prepregs, it saves the weight while having outstanding mechanical strength.
Spare parts are available for the Adjustable Pitch on the Ground FC WINDSPOON propellers. See "Spare Parts" below. |
|
| |
|
|
|
|
FC WINDSPOON PROPELLERS
(TWO-BLADE & THREE-BLADE) | Part No. | Price | Buy | | Two-blade FC WINDSPOON, Right | 05-06664 | $1150.00 |
| | Two-blade FC WINDSPOON, Left | 05-06665 | $1150.00 |
| | Two-blade Inconel FC WINDSPOON, Right | 05-06666 | $1730.00 |
| | Two-blade Inconel FC WINDSPOON, Left | 05-06667 | $1730.00 |
| | Two-blade FC WINDSPOON-R, Right | 05-06668 | $1259.00 |
| | Two-blade FC WINDSPOON-R, Left | 05-06669 | $1259.00 |
| | Two-blade Inconel FC WINDSPOON-R, Right | 05-06670 | $1838.00 |
| | Two-blade Inconel FC WINDSPOON-R, Left | 05-06671 | $1838.00 |
| | Three-blade FC WINDSPOON, Right | 05-06683 | $1502.00 |
| | Three-blade FC WINDSPOON, Left | 05-06684 | $1502.00 |
| | Three-blade Inconel FC WINDSPOON, Right | 05-06685 | $2372.00 |
| | Three-blade Inconel FC WINDSPOON, Left | 05-06686 | $2372.00 |
| | Three-blade FC WINDSPOON-R, Right | 05-06687 | $1665.00 |
| | Three-blade FC WINDSPOON-R, Left | 05-06688 | $1665.00 |
| | Three-blade FC WINDSPOON-R, Right (until 140hp) | 05-06689 | $1905.00 |
| | Three-blade FC WINDSPOON-R, Left (until 140hp) | 05-06690 | $1905.00 |
| | Three-blade Inconel FC WINDSPOON-R, Right | 05-06691 | $2534.00 |
| | Three-blade Inconel FC WINDSPOON-R, Left | 05-06692 | $2534.00 |
| | Three-blade Inconel FC WINDSPOON-R, Right (until 140hp) | 05-06693 | $2775.00 |
| | Three-blade Inconel FC WINDSPOON-R, Left (until 140hp) | 05-06694 | $2775.00 |
|
|
| Accessories | Part No. | Price | Buy | | FC WINDSPOON Right blade | 05-06727 | $352.00 |
| | FC WINDSPOON Left blade | 05-06728 | $352.00 |
| | Inconel FC WINDSPOON Right blade | 05-06729 | $642.00 |
| | Inconel FC WINDSPOON Left blade | 05-06730 | $642.00 |
| | FC WINDSPOON-R Right blade | 05-06731 | $406.00 |
| | FC WINDSPOON-R Left blade | 05-06732 | $406.00 |
| | Inconel FC WINDSPOON-R Right blade | 05-06733 | $696.00 |
| | Inconel FC WINDSPOON-R Left blade | 05-06734 | $696.00 |
| | Complete two-blade hub, 2 strokes | 05-06743 | $459.00 |
| | Complete two-blade hub, 4 strokes | 05-06744 | $446.00 |
| | Complete two-blade hub, 4 strokes (140hp) | 05-06745 | $687.00 |
| | Complete three-blade hub, 2 strokes | 05-06746 | $459.00 |
| | Complete three-blade hub, 4 strokes | 05-06747 | $446.00 |
| | Complete three-blade hub, 4 strokes (140hp) | 05-06748 | $687.00 |
| | Half two-blade hub (100hp) | 05-06749 | $169.00 |
| | Half two-blade hub (100hp) | 05-06750 | $268.00 |
| | Half three-blade hub (140hp) | 05-06751 | $169.00 |
| | Half three-blade hub (140hp) | 05-06752 | $268.00 |
| | Kit of nuts & bolts 0200 (37/21) | 05-06753 | $87.00 |
| | Kit of nuts & bolts 0200 (39/25) | 05-06754 | $87.00 |
| | Kit of nuts & bolts 0200 (72/56) | 05-06755 | $87.00 |
| | Kit of nuts & bolts 0200 (78/63) | 05-06756 | $135.00 |
| | Kit of nuts & bolts 100mm (Rotax ST. & Jabiru propeller shaft) | 05-06757 | $34.00 |
| | Kit of nuts & bolts (912 & Jabiru spacers in 30,50,80mm) | 05-06758 | $39.00 |
| | Kit of nuts & bolts 120mm (912 spacers in 10mm) | 05-06759 | $42.00 |
| | Kit of nuts & bolts 120mm cutted (Rotax 4ST. without spacer) | 05-06760 | $43.00 |
|
|
|
