Airframe Parts - Bearings - KP Series

KP-A SERIES BEARINGS AN201 MS27641

Single row, ball, deep groove, medium duty
PTFE seals and CRES sealcaps
Exposed surfaces except bore, caps, and seals are cadmium plated
Prelubricated for life
Also offered with CRES 440C material and/or zinc nickel plating per OEM specifications

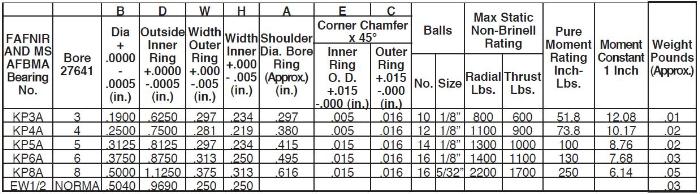

PN	Bore B	Outside Inner Ring D	Width Outer Ring W	Width Inner H	Shoulder Width Bore Ring E	Inner Ring OD C(1)	Outer Ring Corner Chamfer C(2)	Balls	Max Radial	Max Thrust	Pure Moment	Moment Constant	Wgt	Price	Buy
KP3A	.1900	.6250	.297	.234	.302	.005	.016	10-1/8	800	600	51.8	12.08	.01	$13.50
KP4A	.2500	.7500	.281	.219	.380	.005	.016	12-1/8	1100	900	73.8	10.17	.02	$12.75
KP5A	.3125	.8125	.297	.234	.415	.015	.016	14-1/8	1300	1000	100	8.76	.02	$14.95
KP6A	.3750	.8750	.313	.250	.495	.015	.016	16-1/8	1400	1100	130	7.68	.03	$13.95
KP8A	.5000	1.125	.375	.313	.616	.015	.016	16-5/32	2200	1700	250	6.14	.05	$16.70
