PIPER CHEROKEE 140 BAFFLES from Aircraft Spruce

Airframe Parts - Baffling Material - Piper

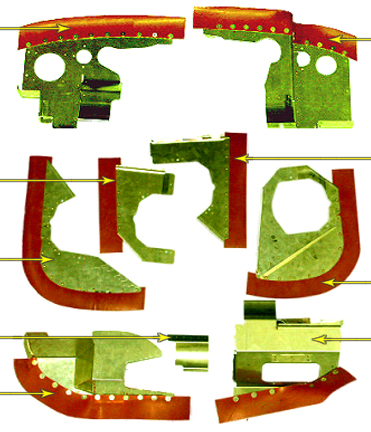

PIPER CHEROKEE 140 BAFFLES

(Click image for a larger view)

Part Number

Description

Select Part:

Price

Buy

05-03284

PA 28-140 BAFFLE SET

Complete Baffle Set

$1128.00

05-03223

AF66677-00 BAFFLE COMPONENT

AF66677-00 Baffle Component

$183.95

05-03224

AF63615-04 BAFFLE COMPONENT

AF63615-04 Baffle Component

$63.00

05-03225

AF63612-11 BAFFLE COMPONENT

AF63612-11 Baffle Component

$106.95

05-03226

AF667722 BAFFLE COMPONENT

AF667722 Baffle Component

$50.00

05-03227

AF63693-00 BAFFLE COMPONENT

AF63693-00 Baffle Component

$195.95

05-03228

AF66722-00 BAFFLE COMPONENT

AF66722-00 Baffle Component

$183.95

05-03229

AF63614-05 BAFFLE COMPONENT

AF63614-05 Baffle Component

$63.00

05-03230

AF63613-00 BAFFLE COMPONENT

AF63613-00 Baffle Component

$106.95

05-03231

AF65480-00 BAFFLE COMPONENT

AF65480-00 Baffle Component

$139.95

All baffles are bare 6061-T6 aluminum unless the powder coating option is chosen. The powder coating finish is a black and grey hammertone. Powder coating option available for an additional 15%.
Please email or call for more details.
The silicone baffle seal material can be special ordered in
orange, dark blue or black by calling 1-877-477-7823 or by email.

AF66677-00

AF63615-04

AF63612-11

AF667722

AF63693-00

AF66722-00

AF63614-05

AF63613-00

AF65480-00

Eligibility:
PA28 140 - Serial No. 28-20002 thru 28-7125471
