 Airframe Parts - Piper Parts - Wing Ribs and Parts

PIPER ONE PIECE STAMPED ALUMINUM RIBS

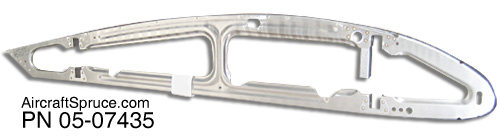

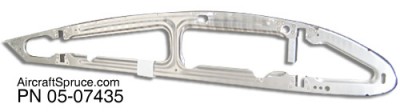

(Click image for a larger view)		These durable ribs are direct replacements for the original style "Truss" type ribs originally used by Piper. These ribs are designed for the various modes of Piper including J-3 and PA-18 with metal spars. The ribs listed are the more commonly requested ribs for this series.

PN Description Replaces Price Buy
05-07365Nose Rib12662-002$23.50
05-07370Nose Rib, Tip L/H16192-000$24.85
05-07375Nose Rib, Tip R/H16192-001$23.25
05-07380Full Rib13052-002$94.50
05-07385Full Butt Rib, L/H10634-000$109.95
05-07390Full Butt Rib, R/H10634-008$105.95
05-07395Full Tank Bay Rib, L/H10653-000$97.50
05-07405Full Tank Bay Rib, R/H10653-006$100.00
05-07410Full I.B. Ail. Bay, L/H13042-000$109.95
05-07415Full I.B. Ail. Bay, R/H13042-001$99.75
05-07420Full O.B. Ail. Bay, L/H12902-000$93.75
05-07425Full O.B. Ail. Bay, R/H12902-001$90.75
05-074303/4 Rib13022-002$74.75
05-074353/4 Butt Rib, L/H10634-005$80.75
05-074403/4 Butt Rib, R/H10634-007$81.25
05-023973/4 Tank Bay Rib10635-002$79.00
