SA-100 SERIES 3.5 GALLON SMOKE SYSTEMS

You Might Also Be
Interested In:

CARBON MONOXIDE DETECTOR 18MO+

$6.85

Make Selection(s) Below To Order

( 0 ) review this

Model:

Part Number:

Quantity:

Pin It

Overview
Specifications
Accessories
Reviews
Q+A

SA-101H

For continious inverted flight.
Side / End mounted oil pump.
All hardware for complete installation.
Height (To top of fill cap is) is 11”
Width (End where oil pump is mounted) is 12”
Depth (Pump to opposite end of tank) is 15”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-02889 SA-102

For Level and Non-Continuous inverted, positive G flight.
Bracket mounted oil pump end or side.
All hardware for complete installation.
Step by step instructions.
Height (To top of fill cap is) is 13”
Width (End where oil pump is mounted) is 11”
Depth (Pump to opposite end of tank) is 13”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-01440 SA-103

For continious inverted flight.
Bracket mounted oil pump end or side.
All hardware for complete installation.
Step by step instructions.
Height (To top of fill cap is) is 13”
Width (End where oil pump is mounted) is 11”
Depth (Pump to opposite end of tank) is 13”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-01441

SA-100

For Level and Non-Continuous inverted, positive G flight. Top mounted oil pump.
All hardware for complete installation.
Step by step instructions.
Height (To top of fill cap is) is 15”
Width (End where oil pump is mounted) is 11”
Depth (Pump to opposite end of tank) is 8.5”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-01438
SA-101

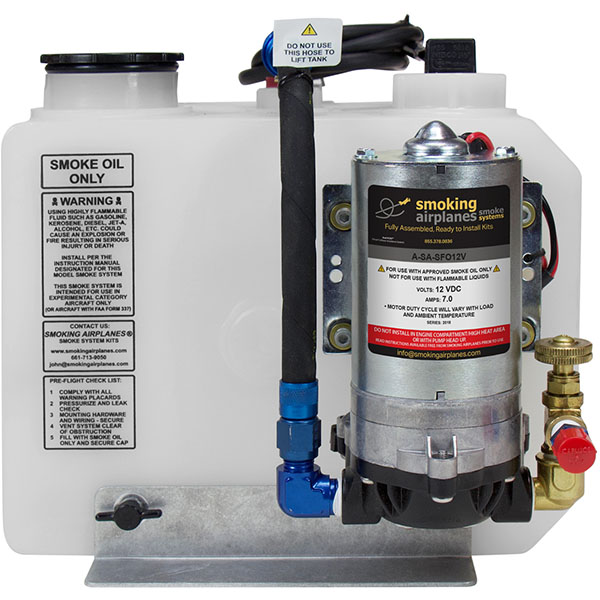

For continious inverted flight.
Top mounted oil pump
All hardware for complete installation
Step by step instructions.
Height (To top of fill cap is) is 15”
Width (End where oil pump is mounted) is 11”
Depth (Pump to opposite end of tank) is 8.5”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-01439 SA-100H

For Level and Non-Continuous inverted, positive G flight.
Side / End mounted oil pump.
All hardware for complete installation.
Step by step instructions.
Height (To top of fill cap is) is 11”
Width (End where oil pump is mounted) is 12”
Depth (Pump to opposite end of tank) is 15”
Oil tank capacity: 3.5 US Gallons
Approx. oil used per minute: .8 Us Gallons
Approx. total run time: 5+ minutes

P/N 05-02888

3.5 GALLON SMOKE SYSTEM CAPACITY AND RUN TIME

OIL TANK CAPACITY

SA-100 SERIES KITS

APPROXIMATE GALLONS OF OIL USED PER MINUTE

APPROXIMATE TOTAL RUN TIME AT BEST OIL MIXTURE VALVE SETTING

3.5 US GALLONS

5+ MINUTES

3.5 GALLON SMOKE SYSTEM WEIGHT AND BALANCE

OIL TANK EMPTY

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

OIL TANK FULL

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

OIL PUMP

Includes side mount bracket and hardware.

COMPONENTS

Hoses, switches, injector, etc.

SMOKE OIL

3.5 US gallons at 8 pounds per gallon

SA-100 SERIES KITS TOTAL WEIGHT FULL (everything included)

12.5 POUNDS

40.5

POUNDS

43.5

POUNDS

Note: The weights shown are based on the SA-103 (inverted flight w/oil pump bracket) single injector,smoke system kit. Weights may vary with addition or subtraction of components.

NOTE: SMOKE OIL TANK FULL + COMPONENTS = TOTAL WEIGHT FULL.

Enter the quantity desired of each item in the Buy column.
Click "Add Accessories to Cart" below the list to add the items to your shopping cart.
Click "Add to Wishlist" below the list to store them for ordering later.

Accessories	Description	Part Number	Price	Buy
All components less the oil tank	Virtually every part you will need to complete your smoke system except the oil tank	05-03366	$669.00
External Fill Kit	This kit has everything right down to the vinyl letter transfer “Smoke Oil Only” and detailed installation instructions.	05-03595	$134.00
Second Injector Kit	Everything you'll need to convert a single injector system into a double injector system.	05-02890	$118.00
