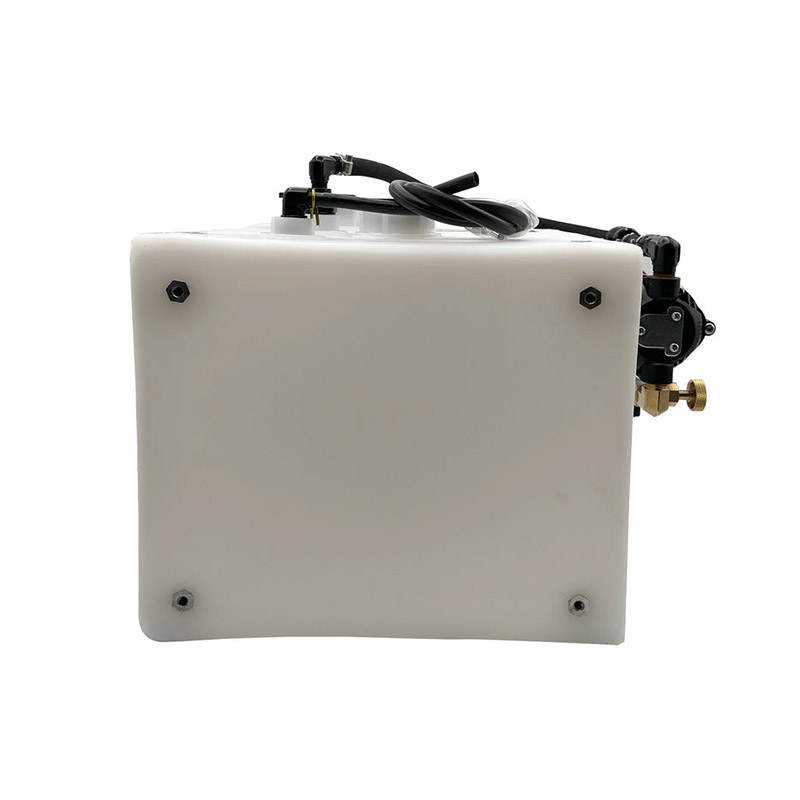

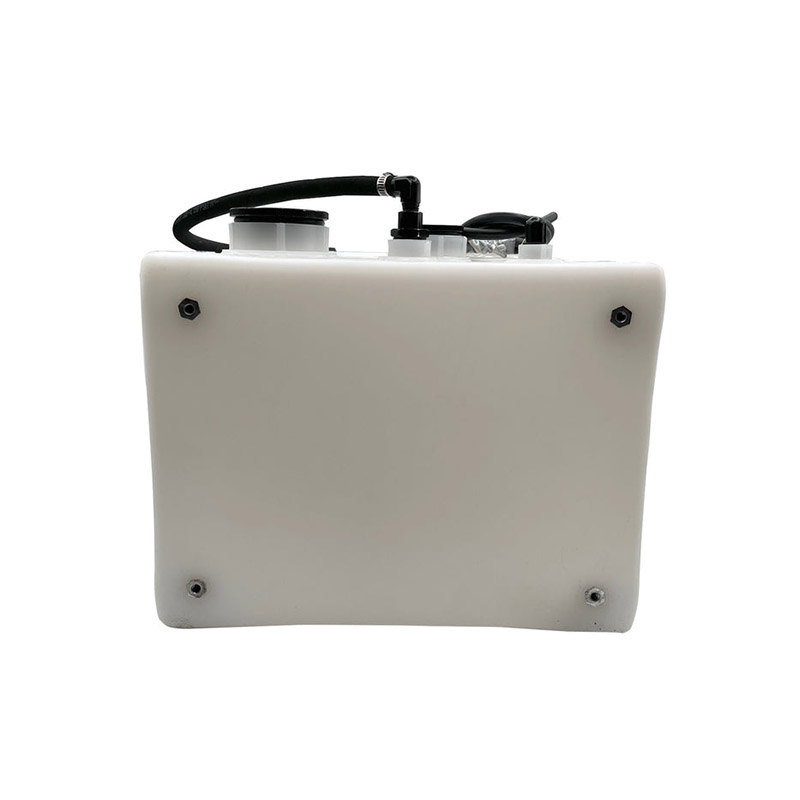

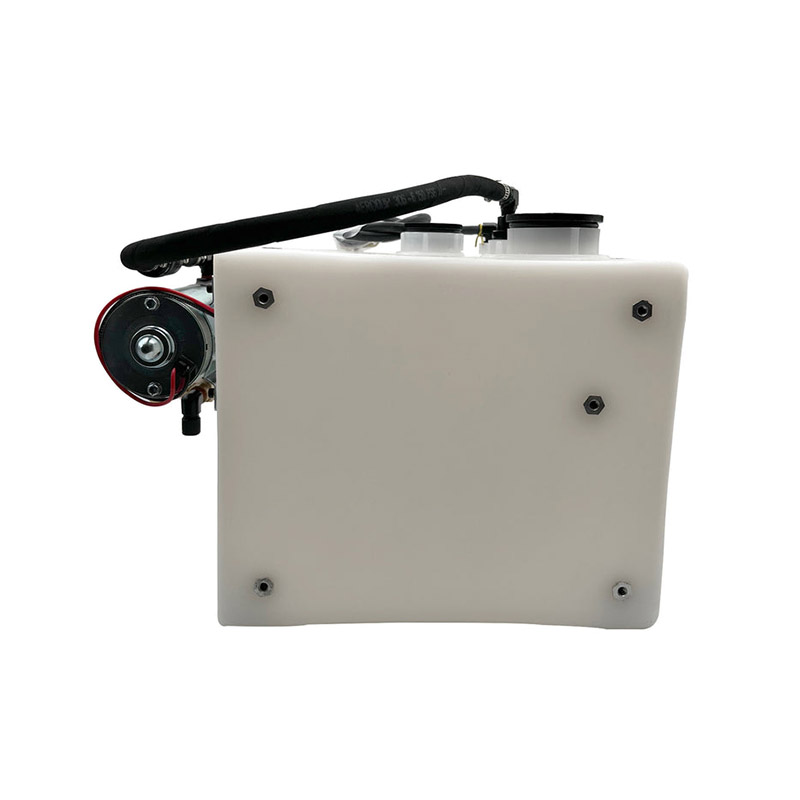

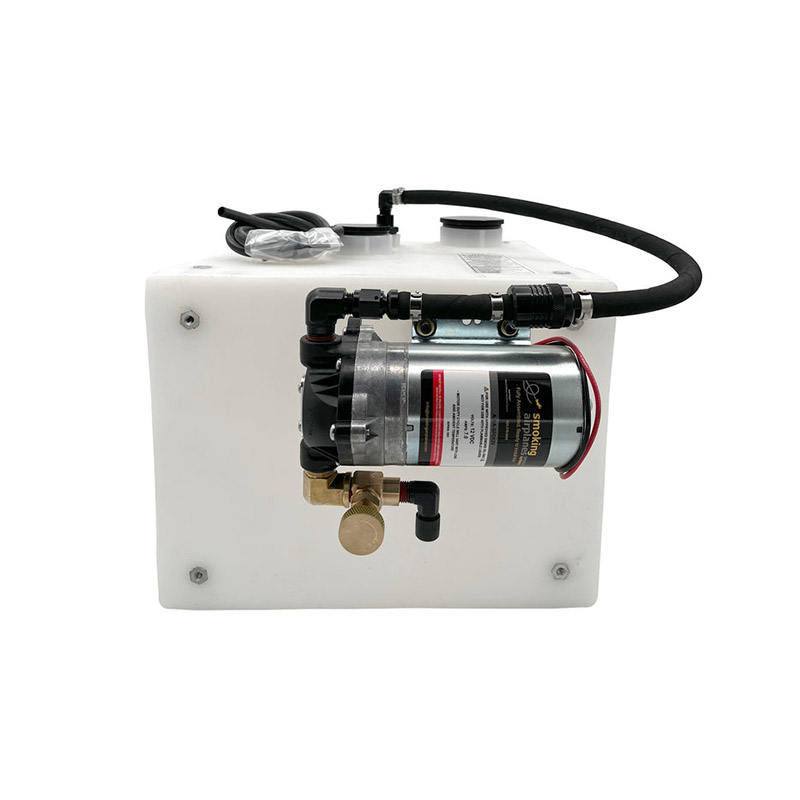

SA-200 SERIES 5.5 GALLON SMOKE SYSTEM

Part Number

Description

Select Model:

Price

Buy

05-02887

SA-200 SMOKE SYSTEM KIT

SA-200

$930.00

05-02891

SA201 5.5 GAL SMOKE SYSTEM KIT

SA-201

$930.00

05-04479

SMOKE SYS KIT 5.5 GAL SA-200T

SA-200T

$930.00

05-03398

SA-201T SMOKE SYSTEM KIT

SA-201T

$930.00

SA-200:

For level and non-continuous inverted, positive G flight.

Any dimension top.

Pump can be mounted on top or any side.

Fill cap and other fittings installed where you want them.

All hardware included for complete installation.

Height (to top of fill cap) is 14"

Width (end where oil pump is mounted) is 10"

Depth (pump to opposite end of tank) is 17.25"

Oil tank capacity: 5.5 US Gallons

Approx. oil used per minute: .8 US Gallons

Approx. total run time: 7+ Minutes

P/N 05-02887

SA-201:

For continuous inverted flight

Any dimension top.

Pump mounted on top or any side.

Fill cap and other fittings installed where you want them.

All hardware for complete installation.

Height (to top of fill cap) is 14"

Width (end where oil pump is mounted) is 10"

Depth (pump to opposite end of tank) is 17.25

Oil tank capacity: 5.5 US Gallons

Approx. oil used per minute: .8 US Gallons

Approx. total run time: 7+ Minutes

P/N 05-02891

SA-200T and SA-201T:

Same as SA-200 and 201 except the oil pump is mounted on the top of the oil tank instead of bracket mounted on the side.

Height (to the top of fill cap) is 14"

Width (end where oil pump is mounted) 10"

Depth (pump to opposite end of tank) is 17.25"

Oil tank capacity: 5.5 US Gallons

Approx. oil used per minute: .8 US Gallons

Approx. total run time: 7+ Minutes

P/N 05-04476 and 05-03398

5.5 GALLON SMOKE SYSTEM CAPACITY AND RUN TIME

OIL TANK CAPACITY

SA-200 SERIES KITS

APPROXIMATE GALLONS OF OIL USED PER MINUTE

APPROXIMATE TOTAL RUN TIME AT BEST OIL MIXTURE VALVE SETTING

5.5 US GALLONS

7+ MINUTES

5.5 GALLON SMOKE SYSTEM WRIGHT AND BALANCE

OIL TANK EMPTY

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

OIL TANK FULL

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

OIL PUMP

Includes side mount bracket and hardware.

COMPONENTS

Hoses, switches, injector, etc.

(includes Remote Switch Kit)

SMOKE OIL

5.5 US gallons at 8 pounds per gallon

SA-200 SERIES KITS TOTAL WEIGHT FULL (everything included) �

�16 POUNDS

�60

POUNDS

�5

POUNDS

�3

POUNDS

Accessories	Description	Part Number	Price	Buy
All components less the oil tank	Virtuall every part you will need to complete your smoke system except the oil tank.	05-03366	$630.00
Second injector kit with initial order	Not Necessary for good smoke, but will make the smoke trail more dense.	05-02890	$108.00
Second injector kit post order	Not Necessary for good smoke, but will make that smoke trail more dense.	05-02892	$108.00
External Fill Kit	This kit has everything right down to the vinyl letter transfer "Smoke Oil Only" and detailed installation instructions.	05-03595	$124.95
