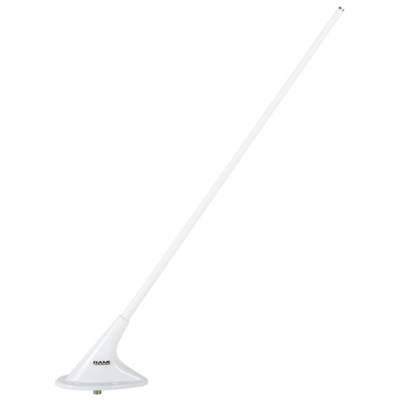

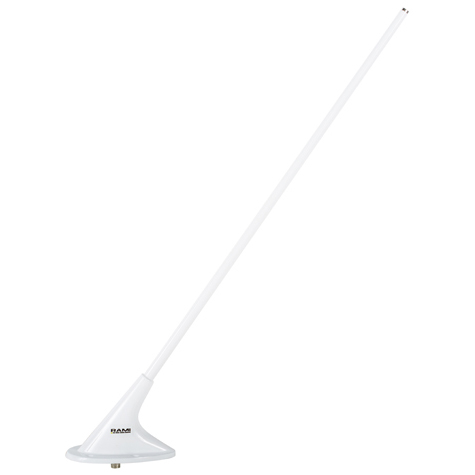

RV MILLER PUBLIC SERVICE/BUSINESS BAND ANTENNA AV-14


(Click image for a larger view)		 The AV-14 is similar to the AV-10 using the same 4-bolt mounting base except it has a shorter radiating whip element. The antenna is designed to operate in the Public Service and Business Bands 138-174 MHz. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.

Download the product outline in PDF format.

Download the product footprint in PDF format.

  • Application: Airborne Communications
  • Frequency: 138 to 174 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 8 oz
  • Max Height: 14-1/2"
  • RF Power Capacity: 25 Watts
Description Part No. Price Buy
RA MILLER AV-14 PS/BB ANTENNA11-12600$186.95
