RA MILLER ANTENNA (AV-569)

Click to Enlarge

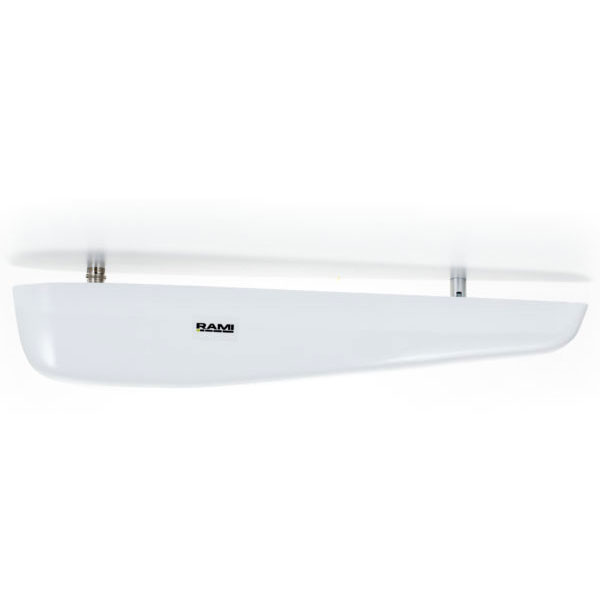

The AV-569 is a Boat Type Marker Beacon antenna designed for very low drag. It is constructed of an acrylonitrile-styrene-acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows maximum performance without losses due to color pigments or unseen dirt. It is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.20 lb @ 250 mph.

Click here to download
Outline Drawing in PDF format.

Application: Marker Beacon
Frequency: 75 MHz
Impedance: 50 Ohms Nominal
VSWR: 1.6 to 1 Maximum
Connector: Type "BNC" Female
Max Weight: 6.25 oz
Max Height: 2-1/2"
RF Power Capacity: Receive only

Description	Part No.	Price	Buy
RA MILLER AV-569 MB ANTENNA	AV-569	$124.95

Accessories	Part No.	Price	Buy
RA MILLER AV-570 NAV DIPLEXER	AV-570	$96.95
