  Avionics - Antennas - Transceiver

RA MILLER COM ANTENNA AVT-4

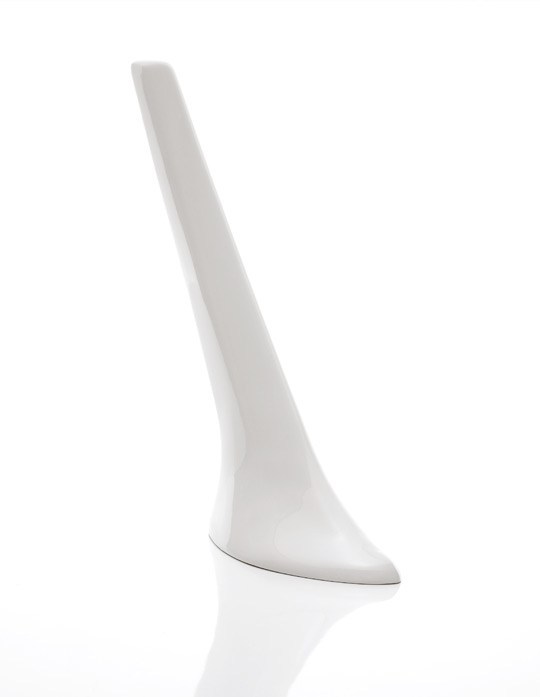

The AVT-4 is a broad-band VHF communications antenna. It incorporates a low drag blade housing design made of LURAN-S plastic for high strength and a radiating element encapsulated in rigid polyurethane foam. The housing is finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.

Download the product outline in PDF format.

Download the product footprint in PDF format.
  • Application: Airborne Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 20 oz
  • Max Height: 13-1/2"
  • RF Power Capacity: 30 Watts
Description Part No. Price Buy
RA MILLER AVT-4 COM ANTENNAAVT-4$283.95
Accessories Part No. Price Buy
BNC MALE CONNECTOR RG 5811-03992$2.75
BNC MALE CONNECT RG 400 14211-01802$2.95
COAX CABLE RG 58C/U NON-CERT11-04258$0.46
COAX CABLE RG 400 CERTIFIED11-09202$2.75
Similar Items Part No. Price Buy
RA MILLER AV-10 COM ANTENNAAV-10$116.95
RA MILLER AV-17 COM ANTENNAAV-17$141.95
RA MILLER AV-529 COM ANTENNAAV-529$107.95
RA MILLER AV-534 COM ANTENNAAV-534$59.95
RA MILLER AV-534L COM ANTENNAAV-534L$76.95
RA MILLER AV-530 COM ANTENNA11-06696$134.95
