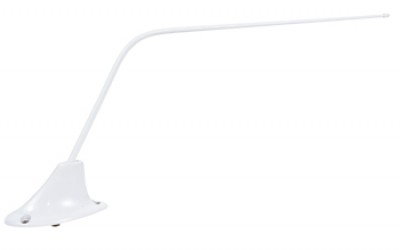

(Click image for a larger view) | 118-137MHz BENT ROD
Frequency Range 118-137 MHz
The DM C63-Series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications. The DM C63-2 is a low profile "bentback" radiating element designed for mounting on the bottom of the fuselage. All DM C63-Series antennas are supplied with a gasket and a doubler plate.
Electrical Frequenc y Range 118 - 137 MHz VSWR 3.0:1 Polarization Vertical Radiation Pattern Omnidirectional Gain Equivalent to a quarter wave stub Impedance 50 Ohms Power 50 W TSO C37d and C38d Mechanical Weight 8 oz Height 8.0 in. Max Finish White Connectors BNC Female Environmental Per D0160C F2-ABCXXXXXXXXXXXXXXXX
|
|
| |
|
| Description |
Part No. |
Price |
Buy |
| DORNE DM C63-2 COM ANTENNA | 11-02765 | $206.95 |
|
|
| Accessories |
Part No. |
Price |
Buy |
| DORNE DM H69-1 NAV QUADPLEXER | 11-02775 | $167.95 |
|
| DORNE DM H24-1 NAV DIPLEXER | 11-02776 | $166.95 |
|
|
