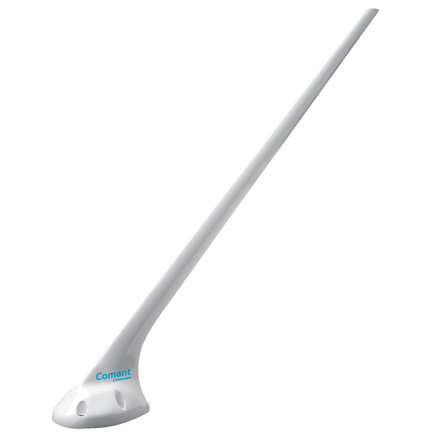

COMANT COMDAT VHF COMMUNICATION
(CI-248-5)
(CI-248-5)
Part # 11-05585
You Might Also Be
Interested In:
Interested In:
 |
|
Frequencies Covered This sleek new design was developed for Cessna 182 and 182T aircraft. Impressive with its low-drag and good looks. The first totally new look in VHF antennas in decades, the CI 248-5 was tested to some of the most rigorous requirements outlined in RTCA DO-160D. Designed for single engine and helicopter applications. Truly unique, the CI 248-5 is the only VHF antenna with a built-in notch filter, that allows installation in close proximity to GPS antennas without co-sight interference. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately. Applications |
MODEL CI 248-5 | |
Electrical | |
Frequency | 118-137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power RF | 25 Watts |
Harmonic Rejection | 80 dB Typical |
Mechanical | |
Weight | 0.52 lb. Maximum |
Height | 17 in. Maximum |
Finish | Molded Glass Filled Nylon |
Material | White Polyurethane |
Connector | BNC (Female) |
Environmental | |
Temperature | -55șC to +85șC |
Altitude | 45,000 ft. |
Federal Specifications | |
RTCA Environmental | C37d, C38d |
FAA TSO | C37d, C38d |
Gasket | |
Cork Neoprene | |
Click "Add Accessories to Cart" below the list to add the items to your shopping cart.
Click "Add to Wishlist" below the list to store them for ordering later.
| Description | Part Number | Price | Buy | |
 |
ANTENNA SEALANT AC236B1/2 | 09-00532 | $24.75 |
