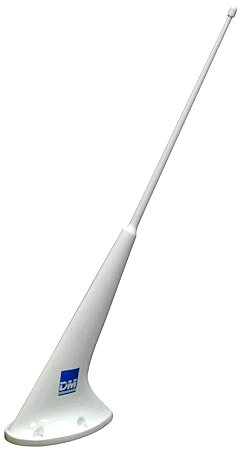

(Click image for a larger view) | 118-137MHz TRIMLINE ROD
(DM C70-1/A)
Frequency Range 118-137 MHz
The DM C70 Series VHF Communication Antennas are designed for top or bottom installation on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. The lightweight profile is unobtrusive, resists icing and offers low drag. Electrical Frequenc y Range 118 - 137 MHz VSWR 2.0:1 Polarization Vertical Radiation Pattern Omnidirectional Impedance 50 Ohms Power 50 W TSO C37d and C38d Mechanical Weight 12 oz (0.34 kg) Height 15.00 in. Max Finish White Polyurethane Connectors BNC Female Speed Rating 400 MPH Environmental D0160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX |
