 Avionics - Cooling Fans - Lone Star

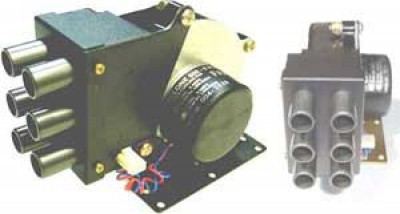

CYCLONE 600 - 6 PORT
AVIONICS COOLING FAN


(Click image for a larger view)

The Cyclone-600 is a light weignt, highly reliable brushless DC avionics blower that delivers 45-50 CFM of forced air to onboard aircraft electronics. The universal mounting system mounts vertical, horizontally or at 45 degrees for straight forward installations for all aircraft make and models.

Brochure Download document
Instructions Download document
Cable Drawing Download document

  • New DC Brushless Motor with FAA/PMA Approval.
  • High Performance 626ZZ Bearing for Extended Life.
  • High Impact Phenolic Housing.
  • Laser Balanced Impeller wheel.
  • Universal Front Plate (4,5,6, Ports).
  • Cable Harness (36"), included.
  • Over Current Protection
  • Locked Rotor Protected
  • Reverse Polarity Protected
  • FAA/PMA Approved
  • DO160 D Tested
  • Low Noise
  • Voltages: 12-14 VDC 600mA; 24-48 VDC 500mA
  • CFM: 45/50 CFM at 6000 RPM
  • Dimensions: 4.5in (H) x 3.0in (W) x 6.25in (L)
Description Part No. Price Buy
CYCLONE 600 6 PORT FAN 12-14V11-05221$319.95
CYCLONE 600 6 PORT FAN 24/28V11-05222$324.00
Accessories Part No. Price Buy
5/8" CYCLONE TUBING FAA/PMA11-00504$4.95
Similar Items Part No. Price Buy
3 PORT COOLING FAN 12V FAA/PMA11-18380$165.95
3 PORT COOLING FAN 24V FAA/PMA11-18381$165.95
