  Avionics - Antennas - RA Miller

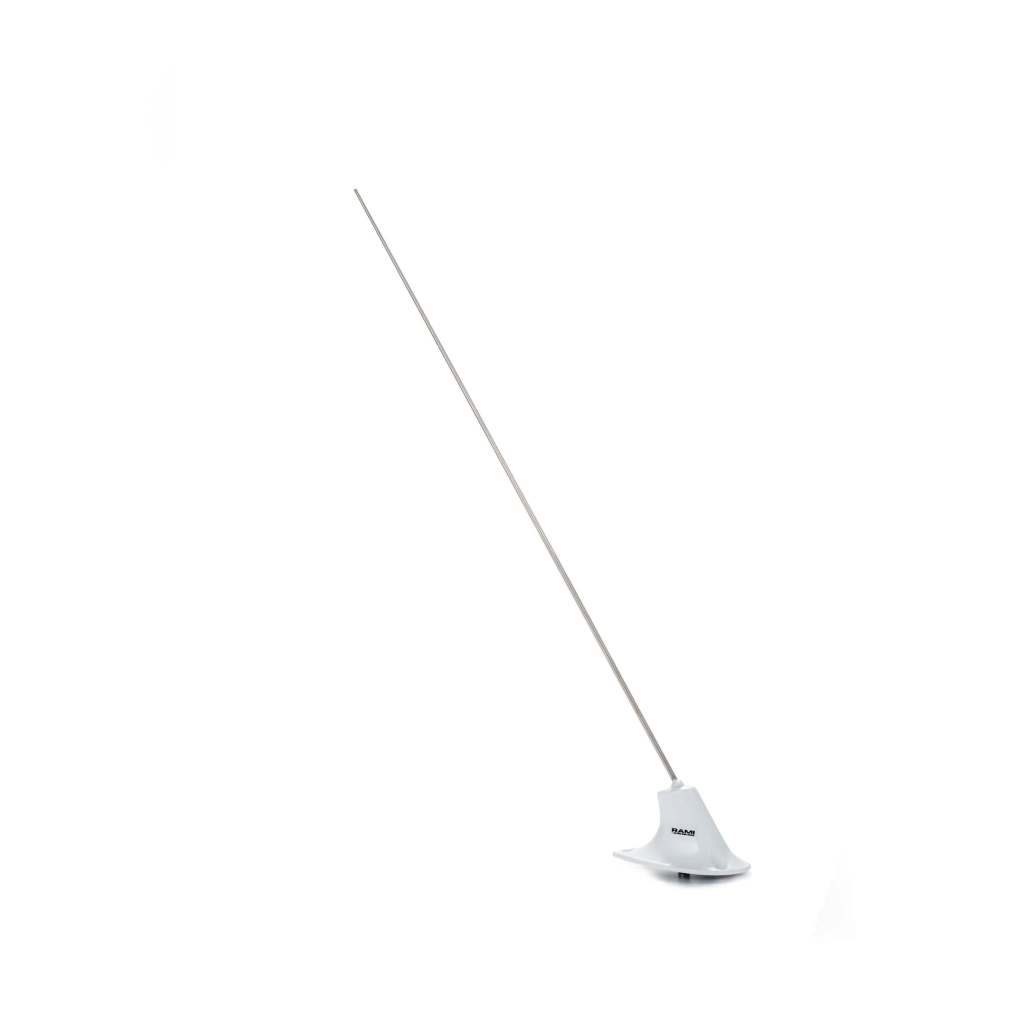

RA MILLER AV-530 ANTENNA
The AV-530 is designed for broadband communications. The antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph.

Click here to download the
Outline Drawing in PDF format.

Click here to download the
Foot Print in PDF format.
  • Application: Airborne Communications"
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 0.5 lb
  • Max Height: 24-1/2"
  • RF Power Capacity: 25 Watts
Description Part No. Price Buy
RA MILLER AV-530 COM ANTENNA11-06696$134.95
Accessories Part No. Price Buy
BNC MALE CONNECTOR RG 5811-03992$2.75
BNC MALE CONNECT RG 400 14211-01802$2.95
COAX CABLE RG 58C/U NON-CERT11-04258$0.46
COAX CABLE RG 400 CERTIFIED11-09202$2.75
Similar Items Part No. Price Buy
RA MILLER AV-10 COM ANTENNAAV-10$116.95
RA MILLER AV-17 COM ANTENNAAV-17$141.95
RA MILLER AV-529 COM ANTENNAAV-529$107.95
RA MILLER AV-534 COM ANTENNAAV-534$59.95
RA MILLER AV-534L COM ANTENNAAV-534L$76.95
RA MILLER AVT-4 COM ANTENNAAVT-4$283.95
