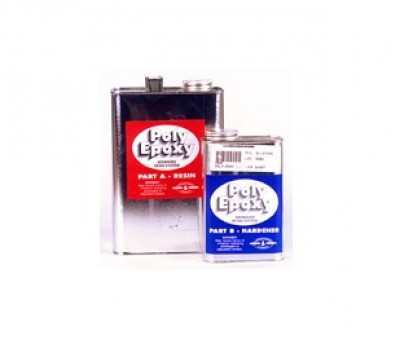

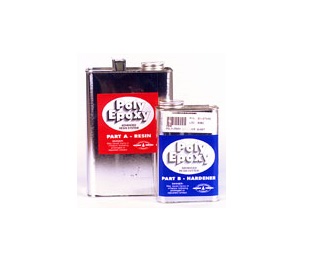

Poly Epoxy is a true
high-performance epoxy resin with unmatched tensile, compressive, and
flex strengths. It also has unbeatable peel, shear, and fatigue resistance,
as well as impact strength and fracture behavior. Its great for wings,
canards, fuselages, tail feathers, and landing gear.
Use it in molds or
moldless construction. It parts easily and works beautifully in vacuum
bagging. (Avoid silicone-treated peel ply.) It has TWO cure phases, while
all other resins-epoxy, polyester, or vinylester-have just one. The two
phases occur all by themselves during the curing process. The resulting
bond is tougher and stronger than any other.
POLY EPOXY TECHNICAL DATA
Mechanical Properties:
w/Post Cure
w/o Post Cure
Tensile Strength, psi
9600
8800
Elongation at Break, %
7.5
3.6
Tensile Modulus, psi
470,000
460,000
Flexural Strength, psi
19,000
14,500
Flexural Modulus, psi
515,000
500,000
Compressive Strength, psi
32,000
33,000
Shore D Hardness
82
70
Glass Transition Temp., °C
72
62
Heat Distortion Temp., °C
64
50
Water Immersion Weight Gain, %
(140 °F, 30 days)
2.8
2.9
Rheology:
Mixing Ratio:3 parts Resin to 1 part Converter by Weight 10 parts Resin to 4 parts Converter by Volume
Kinetics:
Pot Life, 100 grams .............. 105 mins 1 quart......................75 mins
Mold Open Time.......................3-4 hrs Tack Free Time......... 5-6 hrs
