 Electrical - Switches - RockRack by Aveo

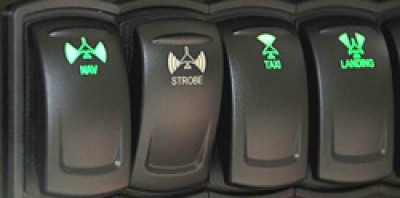

AVEO ROCKRACK SWITCHES

ORDERING INSTRUCTIONS
Step 1: Select a switch faceplate 10 pack. These only come in packs of 10 as shown above and cannot be order individually. The only two that can be ordered individually are the red battery & avionics master.

Step 2: Select a switch based on voltage, color (lights are LED), and position type. Position marked (on) are for momentary on.

Step 3: Select a tab terminal pack. On each switch there are 8 tabs that are 14 gauge (please refer to wire diagram to confirm how many tabs you will be using for each switch).

Step 4: Based on how many switches you plan you use you will need a mounting modules for each switch. For example if you are using ten switches you will need two ends modules and eight middle modules. If you plan just to use a single switch you will need a single module. Also you will need one connector for each switch.

Steps Description Part No. Price Buy
1. Choose
Faceplates		Lighting 10 pack- Nav, Strobe, Taxi,
Landing, Beac/AC, Cockpit, Map, Panel
Wig-Wag,Avionics Master		11-07826$22.85
-Avionics 10 pack - Autopilot, NAv1, Nav2, Generator,
Avionics master, Battery Master, Weather,
Strobe, Standby Vacuum, Comm, Music		11-07827$22.85
-Ice & Heat 10 pack - De-ice, Prop De-ice,
Cabin Heater, Fan, Defrost, Carb Heat,
Pitot Heat, Seat Heat, Battery Master,
Alternator		11-07829$22.85
-Pumps - 10 pack - Fuel Pump, AUX, Transfer Pump,
HYD Pump, Boost Pump, Boost Pump High/Boost
Pump Low, Prime, High/Low, On/Off		11-07832$22.85
-General 10 pack - Emerg Bus, Up/Down, Arrow,
MagL, MagR, Strobe, Battery Master, Aux Master,
Avionics Master, Pitot Heat		11-07830$22.85
-Engine & Airframe 10 pack - Pitot Heat, Battery
Master, Avionics Master, Starter, Elec Ignition, Nav,
Strobe, Elec Trim, Left Mag, Right Mag		11-07831$22.85
-Black switch top, Pack of 1911-06640$72.59
-Red switch top with icon Battery Master11-06641$4.70
-Red switch top with icon Avionics Master11-06642$4.70
-Red switch top - Blank11-08420$4.70
-Black switch top - Blank11-08421$4.70
2. Choose
Switches		AVEO 12V switch on-off red11-06643$18.75
-AVEO 12V switch on-off green11-06644$18.75
-AVEO 12V switch led on-off blue11-06645$18.75
-AVEO 12V switch on-off white11-06646$18.75
-AVEO 12V switch on-on green/white11-08178$24.95
-AVEO 12V switch on-on blue/white11-08179$24.95
-AVEO 12V switch on-on white/white11-08180$24.95
-AVEO 12V switch on-on red/red11-08207$24.95
-AVEO 12V switch on-on green/red11-08208$24.95
-AVEO 12V switch on-on blue/red11-08209$24.95
-AVEO 12V switch on-on white/red11-08211$24.95
-AVEO 12V switch on-on red/white11-08213$24.95
-AVEO 12V switch on-(on) red11-08181$24.95
-AVEO 12V switch on-(on) green11-08182$24.95
-AVEO 12V switch on-(on) blue11-08183$24.95
-AVEO 12V switch on-(on) white11-08184$24.95
-AVEO 12V switch on-(on) red/red11-08185$24.95
-AVEO 12V switch on-(on) green/red11-08186$24.95
-AVEO 12V switch on-(on) blue/red11-08187$24.95
-AVEO 12V switch on-(on) white/red11-08188$24.95
-AVEO 12V switch on-(on) red/white11-08189$24.95
-AVEO 12V switch on-(on) green/white11-08190$24.95
-AVEO 12V switch on-(on) blue/white11-08191$24.95
-AVEO 12V switch on-(on) white/white11-08192$24.95
-AVEO 12V switch on-off-on green11-08193$24.95
-AVEO 12V switch on-off-on white11-08194$24.95
-AVEO 12V switch on-off-on blue11-08195$24.95
-AVEO 12V switch on-off-on red11-08196$24.95
-AVEO 12V switch (on)-off-(on) red11-08197$24.95
-AVEO 12V switch (on)-off-(on) green11-08198$24.95
-AVEO 12V switch (on)-off-(on) blue11-08199$24.95
-AVEO 12V switch (on)-off-(on) white11-08201$24.95
3. Choose
Tab Terminals		Aveo 14 gauge Tab Terminal 12 pack11-07833$3.75
-Aveo 14 gauge Tab Terminal 24 pack11-07834$6.25
-Aveo 14 gauge Tab Terminal 60 pack11-07835$15.75
-Aveo 14 gauge Tab Terminal 100 pack11-08422$26.00
4. Choose
Mounting
Components		End Module11-06648$2.60
-Middle Module11-06649$2.70
-Single Module11-06650$4.85
-Connector (1 per switch)11-06651$4.65
-Removing Tool - 2 required to remove the switch11-06652$6.50
Accessories Part No. Price Buy
AVEO ROCKRACK BLANK RED TOP11-08420$4.70
AVEO ROCKRACK BLANK BLACK TOP11-08421$4.70
