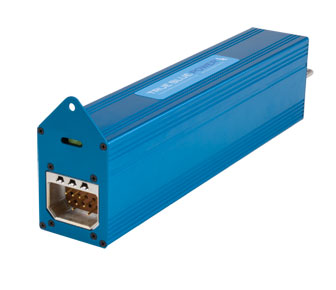

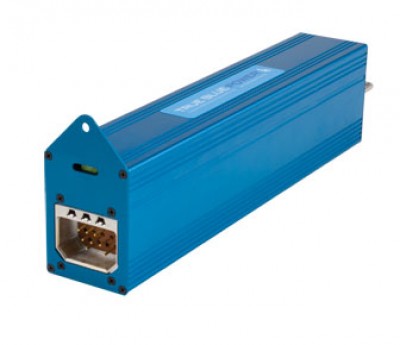

EMERGENCY POWER SUPPLY MD835

An industry first — Mid-Continent Instruments brings you the first emergency power supply featuring Lithium Nanophosphate™ technology. The MD800 Series weighs merely 4.8 pounds – 8 pounds less than the competition. It charges faster, costs less and has an improved ten-year life expectancy. Did we mention it uses the same mating connector and install rack as existing power supplies? Never underestimate the power of innovation.

Download the brochure (PDF)

In the event of aircraft power failure, the MD800 series automatically supplies 24.5 VDC power for critical or standby equipment
4.5 Amp-hour battery with friendly Lithium Nanophosphate™ cell chemistry
Lightweight 4.8 lbs. – 8 lbs. less than legacy lead acid designs
Input Voltage: 24–32 VDC
MD855 model available in 2011 with adjustable 5 VDC output for emergency lighting
Direct replacement for PS-835/PS-855 or forward-fit installations
Minimal scheduled maintenance required: 2-year capacity check, 10-year replacement life
Dimensions (approx.): 3.1”H x 12.6”L x 2.3”W Mounts in standard ¼ ATR Rack
Maintains full charge by recharging during normal flight operations
Remote mounted self-test switch required
FAA TSO C179 certified
Part 23 AML STC pending
Qualified to RTCA/DO-160F and RTCA/DO-311
Designed and built in Wichita, Kansas, USA
One year limited warranty

Input: 24–32 VDC, 5.0 Amps max.
Output: 24.5 VDC nominal, 20 Amps max.
Protection: Field Replaceable Fuse
Battery Capacity: 4.5 Amp-hours nominal
Lighting Output (MD855 only): 0–5 VDC adjustable, 5 Amps max.
Certification: FAA TSO C179
Qualified to RTCA/DO-160F and RTCA/DO-311
Connector: DPBX-13-34P-0101
Color: Case: Black
Weight: 4.8 lbs.
Scheduled Maintenance: 2 years
Life Expectancy: 10 years

Description	Part No.	Price	Buy
TRUE BLUE MD835 POWER SUPPLY	11-08713	$3195.00

Accessories	Part No.	Price	Buy
MCI 5V MODULE CONNECTOR	10-04776	$995.00
