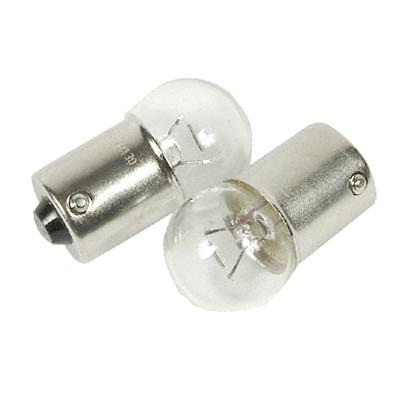

The GE 67 miniature lamp is an 8 watt, 13.5 volt miniature G Shape Lame Type lamp.

General Characteristics:

• G6 Bulb
• Single Contact Bayonet Base
• C-2R Filament
• 5,000 Hrs. Rated Life
• Gas-filled Atmosphere
• Primary Application: Clock, tail, cargo area

Dimensions:

• 1.4400 inches Maximum Overall Length (MOL)
• 0.750 inches Bulb Diameter (DIA)
• 0.810 inches Light Center Length (LCL)

Photometric Characteristics:

• 50 Initial Lumens
• 60 Nominal Lumens per Watt
• 4 Means Spherical Candlepower (MSCP)
