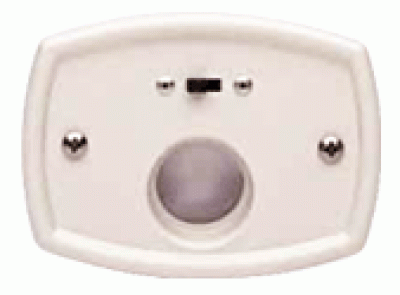

MODEL A325FL & A325ML SERIES
Interior reading/compartment light assemblies. The A325FL is designed for compartmental flooding & general lighting. The A325ML is a reading light and replaces original equipment on 14 VDC Piper aircraft. An On/Off slide switch is standard on all units. Uses a 14 VDC #1414 or a 28 VDC #1495 lamp.

Specifications:
• Depth Behind Mounting Flange: 1.38”
• Lamp Wattage: 6 watts
• Weight: 0.1 lbs.
• Power Consumption: 0.46 amps @ 14 VDC
0.3 amps @ 28 VDC

Flood Light Assembly - A325 FL Series
(14VDC) PN 11-03681 $148.95
(28VDC) PN 11-03656 $146.95

Reading Light Assembly - A325 ML Series
(14VDC) PN 11-03294 $154.95
(28VDC) PN 11-03682 $154.95

MODEL A360 SERIES
Interior light assemblies designed for compartment flooding and general lighting. The A360SW is identical to the A360 but includes an On/Off slide switch. Suffix in model number
indicates lamp required. Lamp desired determines the voltage.

Specifications:
• Weight: 0.2 lbs.
• Length: 4.0”
• Width: 2.75”
• Depth Behind Mounting Flange: 1.40”

Dome Light Assembly Overhead
(14VDC) - PN 11-03685 $110.95
(28VDC) - PN 11-03686 $109.95
Dome Light Assembly w/ Switch
PN 11-03629 $113.95

MODEL A315LO & A315HI SERIES
Cockpit utility light assembly which rotates for convenience in reading maps and illuminating instrument panels. Furnished with a right angle bracket for ease of mounting. Available with Instrument White (blue) lens, Red or Clear. Uses a 14 VDC #1414 or a 28 VDC #1495 lamp (Model A315-HI Series only)

Model A315-HI Specifications:
• Weight: 0.07 lbs.
• Height: 2.2”
• Depth: 0.93”
• Width: 0.87”
• Power Consumption: 0.46 amps @ 14 VDC, 0.3 amps @ 28 VDC

Cockpit Utilitiy Light A315-HI Series
(14VDC) - PN 11-03675 $70.75

Cockpit Utilitiy Light A315-LO Series
(14VDC) - PN 11-03679 $30.75
(28VDC) - PN 11-03680 $30.75
