| WHELEN LED BEACON FOR ROTORCRAFT 71080 SERIES |
|
| |
| 71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.
ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12” Flying Leads
Models: -07, -17, -08, -18: MS3102R10SL-3P Connector
MECHANICAL:

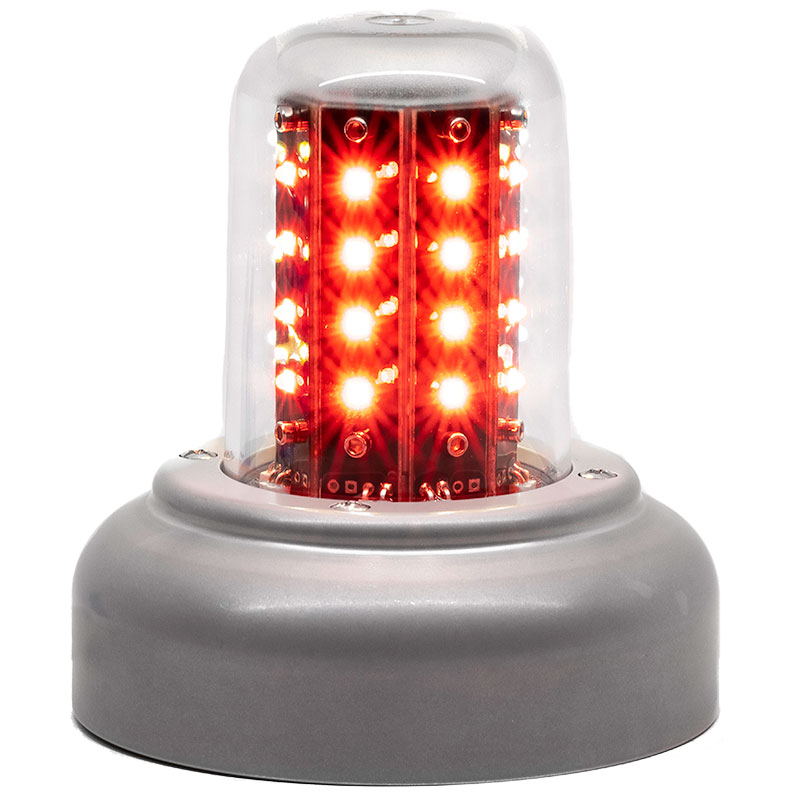

Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons. |
|
| |
|
|
|
| Mfg Model# | Description | Part No. | Price | | 7108001 | LED red, 28 VDC & mount
(FAA TSO-C96a Class I (150 ecp) | 11-06174 | $567.00 | | 7108051 | LED red, 14 VDC & mount
(FAA TSO-C96a Class I (150 ecp) | 11-07686 | $643.00 | | 7108004 | LED red, 28 VDC & 5-Hole mount
(FAA TSO-C96a Class I (150 ecp) | 11-07687 | $643.00 | | 7108014 | LED red, 28 VDC & 5-Hole lower mount
(FAA TSO-C96a Class I (150 ecp) | 11-07688 | $643.00 | | 7108005 | LED red, 28 VDC, 3.75" adapter
(FAA TSO-C96a Class I (150 ecp) | 11-07689 | $665.00 | | 7108015 | LED red, 28 VDC, 3.75" adapter, lower mount
(FAA TSO-C96a Class I (150 ecp) | 11-07690 | $665.00 | | 7108007 | LED red, 28 VDC, 3.75" adapter
(FAA TSO-C96a Class I (150 ecp) | 11-07691 | $665.00 | | 7108017 | LED red, 28 VDC, 3.75" adapter, lower mount
(FAA TSO-C96a Class I (150 ecp) | 11-07692 | $665.00 | | 7108008 | LED red, 28 VDC, 5 hole mount
(FAA TSO-C96a Class I (150 ecp) | 11-07693 | $665.00 | | 7108018 | LED red, 28 VDC, 5 hole lower mount
(FAA TSO-C96a Class I (150 ecp) | 11-07694 | $665.00 |
|
|
|
- Current: 0.87 amps average, 3.0 amps peak
- Weight: 0.65 lbs. (295gm) (-01 & -51)
- Lens: Clear polycarbonate

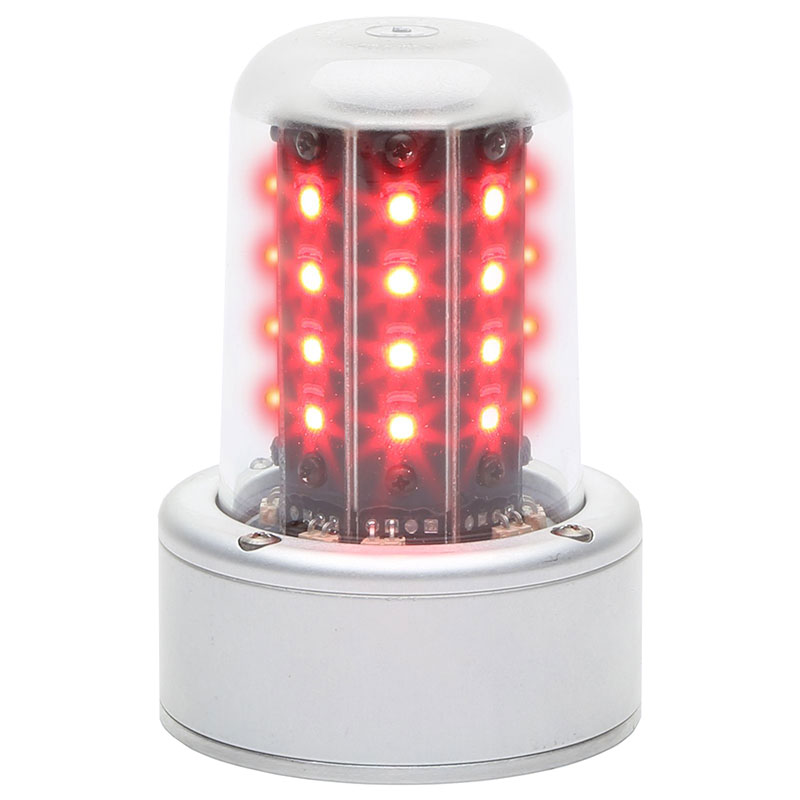

- Dimensions: 2.6” (66mm) diameter, exposed height, 3.74” (95mm) (-01 & 51)
|
| Description | Part No. | Price | Buy | | LED red, 28 VDC & mount (150 ecp) | 11-06174 | $567.00 |
| | LED red, 28 VDC & 5 hole mount (150 ecp) | 11-07687 | $643.00 |
| | LED red, 28 VDC & 5 hole lower mount (150 ecp) | 11-07688 | $643.00 |
| | LED red, 28 VDC, 3.75" adapter (150 ecp) | 11-07689 | $665.00 |
| | LED red, 28 VDC, 3.75" adapter, lower mount (150 ecp) | 11-07690 | $665.00 |
| | LED red, 28 VDC, 3.75" adapter (150 ecp) | 11-07691 | $665.00 |
| | LED red, 28 VDC, 3.75" adapter, lower mount (150 ecp) | 11-07692 | $665.00 |
| | LED red, 28 VDC, 5 hole mount (150 ecp) | 11-07693 | $665.00 |
| | LED red, 28 VDC, 5 hole lower mount (150 ecp) | 11-07694 | $665.00 |
|
|
|
