MODEL 90361 SERIES
LED LANDING LIGHT (EXTERNAL MOUNT) PAR-36 STYLE
90361 series is a self-contained all LED landing light assembly. The design is intended to
provide a solution to the needs for a taxi & landing light on a wide variety of aircraft. All current
source and electronic circuitry is contained within the housing. Unit is available in several
mounting configurations to retrofit existing typical PAR-36 lighting. Outer lens allows for
mounting externally on aircraft, option of diffusion lens available upon request. Item ships
with flying leads.
SPECIFICATIONS:
Power Consumption: 1.5 amps
@ 28 VDC
Weight: 1.3 lbs. (590gm)
Exposed Diameter: 4.70" (119mm), Overall
Depth: 2.87" (73mm)
Lens: Clear Polycarbonate
Mfg Model#
Description
Part No.
Price
Buy
9036110
"U" bracket mounting
11-06181
$549.00 ($598.41CAN)
9036115
LED taxi, assembly with spreader optic, 14 VDC
11-06182
$549.00 ($598.41CAN)
9036120
"U" bracket mounting
11-06183
$571.95 ($623.43CAN)
9036125
LED taxi, assembly with sprader optic, 28 VDC
11-06184
$541.00 ($589.69CAN)
MODEL 71141 SERIES
LED LANDING LIGHT (INTERNAL MOUNT) PAR-36 STYLE
71141 series is a self-contained all LED landing light assembly. The design is intended to
provide a solution to the needs for a taxi & landing light on a wide variety of aircraft. All current
source and electronic circuitry is contained within the housing. Unit is available in several
mounting configurations to retrofit existing typical PAR-36 lighting. Unit is designed to
be mounted internally behind existing lens. Item ships with flying leads. Contact your OEM
for installation eligibility on your aircraft.
SPECIFICATIONS:
Power Consumption: 1.5 amps
@ 28 VDC
Weight: 1.0 lbs. (454gm)
Exposed Diameter: 4.46" (113mm), Overall
Depth: 1.90" (48mm)
Lens: Clear Polycarbonate
Mfg Model#
Description
Part No.
Price
Buy
7114112
LED landing/taxing light internal mount
11-06185
$519.00 ($565.71CAN)
7114122
LED landing/taxing light internal mount
11-06186
$519.00 ($565.71CAN)
MODEL 90352 SERIES
LED LANDING LIGHT (EXTERNAL MOUNT) PAR-46 STYLE
90352 series is a self-contained all LED landing light assembly. The design is intended to
provide a solution to the needs for a taxi & landing light on a wide variety of aircraft. All current
source and electronic circuitry is contained within the housing. Unit is available in several
mounting configurations to retrofit existing typical PAR-46 lighting. Unit is designed to be
mounted "externally (in the airstream)". Special models available with MS power input connector
vs. flying leads as standard option.
SPECIFICATIONS:
Power Consumption: 3 amps
@ 28 VDC
Weight: 2.2 lbs. (998gm)
Exposed Diameter: 5.90"
(150mm), Overall
Depth: 3.18" (81mm)
Lens: Clear Polycarbonate
Mfg Model#
Description
Part No.
Price
Buy
9035200
LED landing/taxing light (natual finish)
11-06179
$912.00 ($994.08CAN)
9035220
LED landing/taxing light (black finish)
11-06180
$875.00 ($953.75CAN)
QUARTZ HALOGEN PAR LAMPS
Whelens family of quartz halogen PAR lamps offer two distinct features over standard incandescent
PAR lamps; sustained light intensity and 10 times the average life. Tests have shown
250 hours lab life versus 25 for standard off-the-shelf lamps. This dramatically reduces costs
associated with replacement labor and parts. Where incandescent lamps decline in intensity
(beam candlepower) over time due to filament deterioration, Whelens family of lamps maintain
their rated intensity throughout their life providing a constant level of visibility. FAA/PMA
SPECIFICATIONS:
Power Consumption: 3 amps
@ 28 VDC
Weight: 2.2 lbs. (998gm)
Exposed Diameter: 5.90"
(150mm), Overall
Depth: 3.18" (81mm)
Lens: Clear Polycarbonate
Mfg Model#
Voltage
Wattage
Candela
Style
Part No.
Price
Buy
Q5596
28
250
150,000
Par-36 landing
11-03269
$74.95 ($81.70CAN)
Q5587
28
250
40,000
Par-36 taxi
11-05092
$76.85 ($83.77CAN)
Q4509
14
100
140,000
Par-36 landing
11-03234
$77.50 ($84.48CAN)
Q4591
28
100
90,000
Par-36 landing
11-03241
$76.00 ($82.84CAN)
Q4566
28
450
150,000
Par-46 landing
34-08508-10
$76.85 ($83.77CAN)
MODEL 90195 SERIES
90195 series are fixtures that accommodate a standard PAR-36 lamp assembly, available with
or without a lamp.
SPECIFICATIONS:
Drawing Number: 90195
Depth: 3.03 (77mm)
Diameter: 4.88 (124mm)
Weight w/lamp: 1.0 lbs. (454gm)
Weight less lamp: 0.5 lbs. (227gm)
Mfg Model#
Description
Part No.
Price
Buy

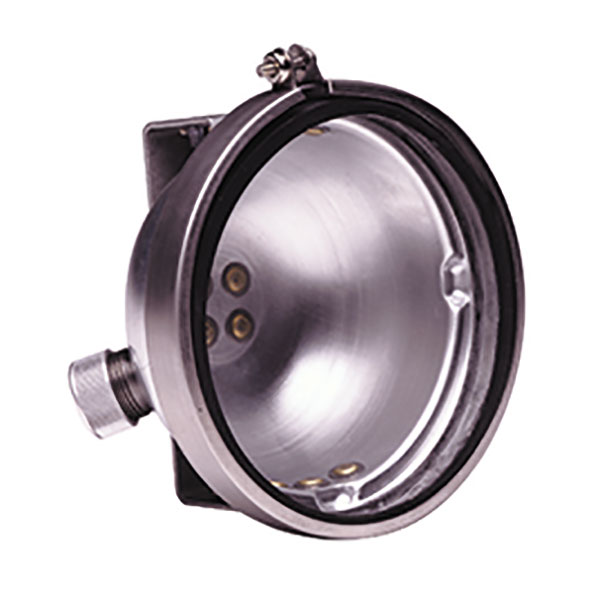

9019500
Housing only, less lamp
01-07901-9500
$255.95 ($278.99CAN)
9035220
With #4596 lamp
11-03286
$290.95 ($317.14CAN)
MODEL A715-1 SERIES
A715-1 series are fixtures that accommodates a standard PAR-36 lamp assembly, available
with or without a lamp. Used on Beechcraft.
SPECIFICATIONS:
Drawing Number: 70155
Depth: 2.12 (54mm)
Diameter: 4.75 (121mm)
Weight w/lamp: 1.0 lbs. (454gm)
Weight less lamp: 0.4 lbs. (181gm)
Mfg Model#
Description
Part No.
Price
Buy
A7151
Housing only, less lamp
(FAA/PMA)
11-03281
$143.95 ($156.91CAN)
MODEL 70346 SERIES
70346 series recognition/landing light assembly which produces up to 80,000 beam candlepower
using only a 35 watt lamp. Available with an optic spreader lens for taxiing, a clear lens
for spot or without a lens for custom applications.
71125 series LED recognition light is designed to provide supplemental lighting for a wide
variety of aircraft applications. Provides all of the advantages of LED's as a light source, no
EMI/RFI, low current draw, low heat, long life. Perfect for vibration prone areas. Item ships
with flying leads. Several different beam spreads available. Designed to replace the Whelen
A775 series. Version containing integrated MS connector also available. Can be used in conjunction
with 71115 Flasher control assembly.
