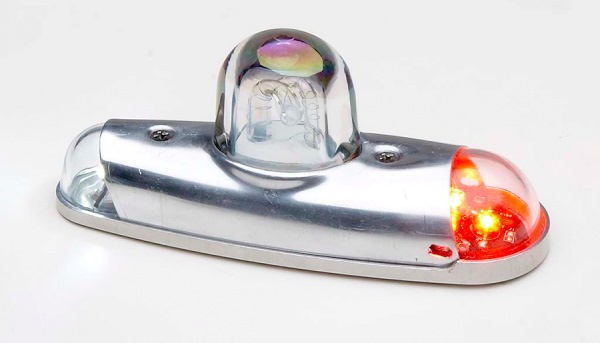

MODEL 90340 SERIES
STROBE ANTI-COLLISION/LED
POSITION LIGHT ASSEMBLY
90340 series is an all inclusive wing tip mounted strobe anti-collision/position light assembly
utilizing LED's for both the forward & tail position lights, eliminating the need for a tail
mounted position light. The LED's provide a significant reduction in current draw over conventional
position light bulbs. The strobe light lens assembly is radio shielded for maximum
EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A600PG/PR
series without replacing the current strobe power supply. Single set of flying leads operates
both forward & tail nav on 28 VDC version, and one set each of flying leads for the forward &
tail nav on the 14 VDC version.
SPECIFICATIONS:
LED Navigation Light Power Consumption: 0.5 amps @
14 VDC, 0.25 amps @ 28 VDC
Position green, 14 VDC
(FAA TSO-C96a / TSO-C30c Types II & III)
11-05625
$336.95
9034002
Position red, 14 VDC
(FAA TSO-C96a / TSO-C30c Types I & III)
11-05626
$336.95
9034003
Position green, 28 VDC
(FAA TSO-C96a / TSO-C30c Types II & III)
11-05627
$336.95
9034004
Position red, 28 VDC
(FAA TSO-C96a / TSO-C30c Types I & III)
11-05628
$336.95
MODEL 90375 SERIES
STROBE ANTI-COLLISION/LED
POSITION LIGHT ASSEMBLY
(For Composite Wingtip Structure)
Same as 90340 series with addition of 3 feet of braided bonded protection.
Mfg Model#
Description
Part No.
Price
Buy
9037501
Position green, 28 VDC
(FAA TSO-C96a / TSO-C30c Types II & III)
11-06598
$437.95
9037502
Position red, 28 VDC
(FAA TSO-C96a / TSO-C30c Types I & III)
11-06599
$437.95
MODELS A610 & A612
A612
A610
A610 flash tube and A612 glass lens are used for installing wing tip strobes in single engine
Cessna’s 1972 and later. The existing position light retainer is modified to accommodate the
lens, and the flash tube is mounted directly behind. The unique magnifying design of the A612
lens increases the light intensity by two to three times in the horizontal plane. These items
may be used for custom installations or as spare parts for existing light assemblies. The A612
lens is available in Aviation Red and an RFI coated version. Lenses meet material requirements
of MIL-C-7989B Class B.
SPECIFICATIONS:
Drawing Number A610: 50276
Drawing Number A612: 90005
A610 Flash Tube Weight: 0.09 lbs. (41gm)
A612 Lens Weight: 0.08 lbs. (36gm)
Mfg Model#
Description
Part No.
Price
Buy
A610
Standard unit, 6" leads
11-03213
$69.85
A610M
Molex connector, 6" leads
11-03734
$73.25
5027601
14" leads
11-07611
$66.75
5027602
12.5" leads
11-07612
$66.75
A612
Standard clear lens
11-03222
$29.50
A612D
Radio-shielded, clear lens
11-03735
$86.25
A612R
Standard red lens
11-07613
$81.75
A612DR
Radio-shielded, red lens
11-07614
$111.95
MODEL A600 PG/PR SERIES
A600 PG/PR series wing tip anti-collision, forward position and tail position lights, all in one
compact unit. Tail position light eliminates the need for a tail mounted position light. Available
in 14 or 28 VDC and in a radio-shielded version. The forward position lamp is 26 watts and
the taillight lamp is 25 watts.
SPECIFICATIONS:
rawing Number: 90006
Weight: 0.8 lbs. (363gm)
Position Lamps Power Consumption: 4 amps @ 14 VDC; 2 amps @ 28 VDC
Exposed Height: 2.4” (61mm)
Length: 5.63” (143mm)
Width: 1.7” (43mm)
Mfg Model#
Description
Part No.
Price
Buy
A600PG14
Position green, 14 VDC
(FAA TSO-C30b / FAA/PMA)
11-03220
$193.95
A600PG28
Position green, 28 VDC
(FAA TSO-C30b / FAA/PMA)
11-03245
$193.95
A600PR14
Position red, 14 VDC
(FAA TSO-C30b / FAA/PMA)
11-03221
$193.95
A600PR28
Position red, 28 VDC
(FAA TSO-C30b / FAA/PMA)
11-03246
$193.95
A600PGD1
Position green,
14 VDC, radio-shielded
(FAA TSO-C30b / FAA/PMA)
11-03636
$255.95
A600PGD2
Position green,
28 VDC, radio-shielded
(FAA TSO-C30b / FAA/PMA)
11-03732
$249.95
A600PRD1
Position red, 14 VDC,
radio-shielded
(FAA TSO-C30b / FAA/PMA)
11-03638
$259.95
A600PRD2
Position red, 28 VDC,
radio-shielded
(FAA TSO-C30b / FAA/PMA)
11-03636
$255.95
9000612
Position green, 28 VDC,
radio-shielded on Cirrus Design
(FAA TSO-C30b)
11-07602
$224.95
9000613
Position red, 28 VDC,
radio-shielded on Cirrus Design
(FAA TSO-C30b)
11-07603
$224.95
MODEL 71110 SERIES
STROBE ANTI-COLLISION/LED
POSITION LIGHT ASSEMBLY
71110 series is a wing tip mounted strobe anti-collision/position light assembly utilizing
LED's for the forward position lights. The LED's provide a significant reduction in current
draw over conventional position light bulbs. The strobe light lens assembly is radio shielded
for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model
A650PG/PR series without replacing the current strobe power supply. Navigation light portion
is wired with flying leads.
SPECIFICATIONS:
LED Colors: Aviation Red,
Aviation Green
LED Navigation Light Power Consumption: 0.25 amps @
14 VDC or 28 VDC
Position green, 14 VDC
(FAA TSO-C96a / TSO-C30c Type II)
11-05630
$293.50
7111002
Position red, 14 VDC
(FAA TSO-C96a / TSO-C30c Type I)
11-05633
$293.50
7111003
Position green, 28 VDC
(FAA TSO-C96a / TSO-C30c Type II)
11-05635
$293.50
7111004
Position red, 28 VDC
(FAA TSO-C96a / TSO-C30c Type I)
11-05636
$293.95
MODEL A650 PG/PR SERIES
A650 PG/PR series wing tip with anti-collision & forward position lights can be used to convert
non-Whelen position lights into a position/anti-collision light system. The small size
allows for mounting into a wing tip enclosure. Available in 14 or 28 VDC and in a radioshielded
version. The forward position lamp is 26 watts.
SPECIFICATIONS:
Drawing Number: 70054
Weight: 0.6 lbs. (272gm)
Position Lamp Power
Consumption: 2 amps @ 14
VDC; 1 Amp @ 28 VDC
Exposed Height: 2.4” (61mm)
Length: 4.0” (102mm)
Width: 1.7” (43mm)
Mfg Model#
Description
Part No.
Price
Buy
A650PG14
Position green, 14 VDC
(FAA/PMA)
11-03217
$172.95
A650PG28
Position green, 28 VDC
(FAA/PMA)
11-03239
$173.95
A650PR14
Position red, 14 VDC
(FAA/PMA)
11-03218
$172.95
A650PR28
Position red, 28 VDC
(FAA/PMA)
11-03247
$172.95
A650PGD1
Position green, 14 VDC,
radio-shielded
(FAA/PMA)
11-03639
$222.95
A650PGD2
Position green, 28 VDC,
radio-shielded
(FAA/PMA)
11-06336
$222.95
A650PRD1
Position red, 14 VDC,
radio-shielded
(FAA/PMA)
11-03642
$218.95
A650PRD2
Position red, 28 VDC,
radio-shielded
(FAA/PMA)
11-06337
$219.95
MODEL A650 SERIES
A650 series converts W1285 position lights into a position/anti-collision system by removing
the existing retainer & replacing it with the A650 assembly. Radio-shielded version available.
SPECIFICATIONS:
Drawing No: 70053
Weight: 0.2 lbs. (91gm)
Exposed Height: 2.4” (61mm)
Mfg Model#
Description
Part No.
Price
Buy
A650
Standard unit
(FAA/PMA)
11-03215
$107.95
A650D
Radio-shielded
(FAA/PMA)
11-07604
$136.95
MODEL A625 SERIES
A625 series has many different applications. It can be used for aircraft with tip-tanks with
enclosed position lights (under a fairing), or as an add-on strobe on the wing or the tail.
Available in a radio-shielded version.
SPECIFICATIONS:
Drawing No: 70058
Weight: 0.2 lbs. (91gm)
Exposed Height: 1.7” (43mm)
Mfg Model#
Description
Part No.
Price
Buy
A625
Standard unit, clear lens
(FAA/PMA)
11-03228
$104.95
A625D
Radio-shielded, clear lens
(FAA/PMA)
11-03659
$157.95
A625R
Standard unit, red lens
11-07605
$95.00
A625DR
Radio-shielded, red lens
11-07607
$153.95
7005815
Radio-shielded,
3/c cable, 12" ground braid
11-07608
$132.95
7005816
Radio-shielded,
24" 3/c cable, w/MS connector
11-07609
$159.95
MODEL 70821 SERIES
70821 series remote streamlined strobe light assembly. Easily mounted on the wing tip for
anti-collision or on the vertical fin for ground recognition. It is recommended for the wing tips
on Cessna single engine aircraft 1970-71. Its sleek aerodynamic shape allows it to be mounted
where surface area is at a premium, or to simply “clean-up” the look of the airplane. It can
be added as a low profile ground recognition light when mounted on the vertical fin or fuselage.
A mounting adapter plate facilitates mounting.
SPECIFICATIONS:
Drawing Number: 70821
Weight: 0.3 lbs. (136gm)
Exposed Height: 1.8” (46mm)
Length: 3.5 (89mm)
Width: 1.8” (46mm)
Mfg Model#
Description
Part No.
Price
Buy
7082100
Standard unit, clear lens
11-03287
$159.95
7082101
Radio-shielded, clear lens
11-70821-01
$223.95
7082102
Standard unit, red lens
11-07610
$271.95
7082103
Radio-shielded, red lens
11-70821-03
$235.95
MODEL 50626 SERIES
STROBE TUBE ASSEMBLY
50626 series strobe tube assemblies are used with the following model numbers listed in
chart below:
Mfg Model#
Description
Part No.
Price
Buy
5062600
Strobe tube assembly. 6" long
11-07681
$69.50
5062601
Strobe tube assembly 6" long with grommet
11-07682
$69.50
5062602
Strobe tube assembly 12.5" long with grommet
11-07683
$69.50
5062603
Strobe tube assembly 2" long with grommet
11-07685
$69.50
MODELS A500A SERIES
A500A series combination strobe/tail navigation light used when the wing tip anti-collision
lights are mounted in an enclosure and can’t provide 360º of strobe coverage. It is a direct
replacement for the standard tail position light. Available in a radio-shielded version. Voltage
(14 or 28) and mounting (horizontal or vertical) must be specified when ordering.
Vertical Mount, 28VDC,
50" cables, no connectors
(FAA/PMA, FAA TSO-C30b)
11-03720
$264.95
A500ABV1
Beech Special 14VDC,
MS connector
11-03715
$275.95
A500ABV2
Beech Special 24VDC,
MS connector
11-03716
$275.95
MODEL A470A SERIES
A470A series remote strobe light assembly is compatible with all Whelen power supplies. It
can be installed on the fuselage or the vertical fin. The unique polycarbonate optic lens and
reflector design, re-directs stray light rays into the horizontal plane to provide the maximum
360º of uniform light coverage possible. Available in three different lens colors, aviation red,
aviation white and split aviation red/white. Available in radio-shielded configurations. All
assemblies require either the model H102 or H103 mounting adapter.
Designed for the model A470A or model A450 series remote strobe lighthead assemblies. The
model H102 allows flush mounting of the lighthead to the skin of the fuselage or the vertical
stabilizer on later model Cessna Single engines. The H103 is designed for strobe assemblies
to be installed in the standard 3-3/4” (95mm) dia. rotating beacon mounting hole.
SPECIFICATIONS:
Drawing Number H102: 30068
Drawing Number H102: 30079
Mfg Model#
Description
Part No.
Price
Buy
H102
Flush mount adapter
(FAA/PMA)
11-03243
$11.75
H103
Rotating beacon mount adapter
11-03284
$39.90
MODEL A450 SERIES
A450 series remote strobe light assembly is compatible with all Whelen power supplies. It
can be installed on the fuselage or the vertical fin. The Pyrex® Glass lens (clear only) makes
the assembly suitable for use in severe vibration, chemical and moisture conditions (i.e. agricultural
aircraft). Requires either the model H102 or model H103 mounting adapter.
SPECIFICATIONS:
Drawing Number: 70032
Weight: 0.3 lbs. (136gm)
Exposed Height: 2.25” (57mm)
Diameter: 2.5” (64mm)
Mfg Model#
Description
Part No.
Price
Buy
A450
Standard assembly, clear lens
(FAA/PMA)
11-03280
$102.95
MODEL 90028 SERIES
90028 series wing tip strobe light used on Beech aircraft with commonality
wing tip 1974 & later. It is a direct replacement for 30-0467-( ),
30-1331-( ) and
the 30-1467-( ) series.
SPECIFICATIONS:
Drawing Number: 90028
Weight: 0.4 lbs. (181gm)
Exposed Height: 1.87” (48mm)
Length: 4.37” (111mm)
Depth: 2.25” (57mm)
Mfg Model#
Description
Part No.
Price
Buy
D900283
Wing tip light assembly, 45° mounting bracket
11-00712
$161.95
MODELS H102 & H103
90358 series is a self-contained all LED wing tip mounted anti-collision/position light assembly
utilizing LED's for both the anti-collision, forward & tail position lights, eliminating the
need for a tail mounted position light. The LED's provide a significant reduction in current
draw over conventional position light bulbs, and strobe power supplies. The all inclusive LED
design virtually eliminates EMI/RFI interference. All current source and flasher circuitry is
contained within the attached flasher box.
SPECIFICATIONS:
LED Navigation Light Power Consumption: 0.25 amps
@ 28 VDC EACH
LED Anti-Collision Light Power Consumption: 0.5 amps @ 28 VDC
LED Colors: Aviation Red, Aviation Green & Aviation White
Weight: 1.3 lbs. (590gm)
Exposed Height: 2.80" (71mm)
Exposed Width: 2.64" (67mm)
Exposed Length: 7.29" (185mm)
Depth: 3.00" (76mm)
Lens: Clear Hard Coated Polycarbonate
Mfg Model#
Description
Part No.
Price
Buy
9035801
Position green, 28 VDC
(FAA TSO-C96a /
TSO-C30c Types II & III)
11-06170
$1157.95
9035802
Position red, 28 VDC
(FAA TSO-C96a /
TSO-C30c Types I & III)
Electrical - Whelen - Strobe Systems - Lightheads
