70963 series is designed to replace existing incandescent & halogen position lights used on
most business and commuter jets. The benefits of LED technology will drastically reduce
operating costs and improve reliability over the existing lighting. The 70963 series are warranted
to comply with FAA color & light output regulations for 5 years or 10,000 hours.
SPECIFICATIONS:
Power Consumption: 0.3 amps
@ 28 VDC
Weight: 0.25 lbs. (113gm)
Input Voltage: 22-30 VDC
LED Color: Aviation Red,
Aviation Green
Exposed Height: 1.98" (50mm)
Diameter: 2.10" (53mm)
Mfg Model#
Description
Part No.
Price
Buy
7096303

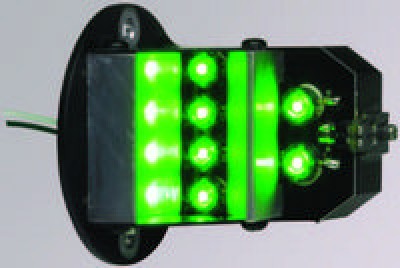

Green position light
(FAA TSO-C30c Type II)
11-05007
$361.95
7096304

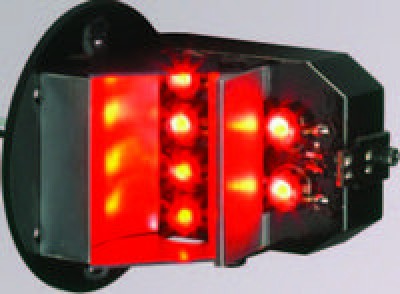

Red position light
(FAA TSO-C30c Type II)
11-05008
$361.95
MODEL 71105 SERIES LED
POSITION LIGHT ASSEMBLY
71105 series are fully FAA TSO compliant forward position lights. LED's provide a significant
reduction in electrical current draw over conventional light bulbs. The 71105 is our latest
design and lowest priced forward position light. Direct replacement for Whelen Model W1285
series (Version STC'd on Learjet Aircraft).
SPECIFICATIONS:
LED Navigation Light Power Consumption: 0.25 amps @
14 VDC or 28 VDC
W1285 series wing tip position light which uses a 26-watt incandescent lamp. It is a direct
replacement for the brand G A1285 series. Specify 14 or 28 VDC.
71015 series are FAA TSO compliant forward position lights. They are compatible with the
Whelen W1250 position light mounting as well as any other make that uses the same mounting
pattern.
SPECIFICATIONS:
Power Consumption: 0.3 amps
@ 28 VDC
LED Color: Aviation Red; and Aviation Green
Weight: 0.2 lbs. (91gm)
Exposed Height: 1.33" (34mm)
Length: 2.41" (61mm)
Mfg Model#
Description
Part No.
Price
Buy
7101501
Green position light,
28 VDC
(FAA TSO-C30c Type II)
11-05011
$274.95
7101502
Green position light,
28 VDC
(FAA TSO-C30c Type II)
11-05012
$270.00
MODEL W1250 SERIES
W1250 series wing tip position light is designed for use under a wing tip fairing. It uses a 26
watt incandescent lamp and is a direct replacement for the brand G A1815A Series. Specify
14 or 28 VDC.
90377 series is a wing tip mounted position light assembly utilizing LED's for both the forward
& tail position lights, eliminating the need for a tail mounted position light. The LED's
provide a significant reduction in current draw over conventional position light bulbs. Direct
replacement (exact footprint) for the Whelen Model A675PG/PR series. Single set of flying
leads operates both forward & tail nav on 28 VDC version, and one set each of flying leads for
the forward & tail nav on the 14 VDC version.
SPECIFICATIONS:
LED Navigation Lights Power Consumption: 0.5 amps @ 14 VDC, 0.25 amps @ 28 VDC
LED Colors: Aviation Red, Aviation Green and Aviation White
Weight: 0.35 lbs. (159gm)
Exposed Height: 1.08" (27mm)
Exposed Width: 1.87" (47mm)
Exposed Length: 5.69" (145mm)
Lens: Clear Polycarbonate
Mfg Model#
Description
Part No.
Price
Buy
9037701
Position green, 14 VDC
(FAA TSO-C30c Type II & III)
11-06175
$271.95
9037702
Position red, 14 VDC
(FAA TSO-C30c Type I & III)
11-06176
$271.95
9037703
Position green, 28VDC
(FAA TSO-C30c Type II & III)
11-06177
$282.95
9037704
Position red, 28 VDC
(FAA TSO-C30c Type I & III)
11-06178
$282.95
MODEL A675 SERIES
A675 series wing tip position and taillight designed to eliminate the need for a tail mounted
position light. It uses a 26 watt incandescent lamp for the forward position light and a 25 watt
halogen for the tail position light. Specify 14 or 28 VDC.
Position green, 14 VDC
(FAA TSO-C30b Type II & III)
11-01895
$212.95
A675PR14
Position red, 14 VDC
(FAA TSO-C30b Type I & III)
11-01896
$202.95
A675PG28
Position green, 28VDC
(FAA TSO-C30b Type II & III)
11-01897
$212.95
A675PR28
Position red, 28 VDC
(FAA TSO-C30b Type I & III)
11-01898
$212.95
MODEL 71011 SERIES LED
TAIL POSITION LIGHTS
71011 series are LED tail position lights designed to replace the existing old style tail lights
typically seen mounted on most general aviation, corporate, and helicopter applications. They
have all the advantages associated with using LEDs as a light source, improved reliability, and
reduced operating costs. Now offered with a 14 Volt version.
A555A series tail mounted position light which uses a 25 watt halogen lamp. The suffix V or
H in the part number designates the aircraft mounting screw locations in respect to the light
shield. V designates vertical mounting and H indicates horizontal mounting on the aircraft.
Supplied with a 2 position AMP connector. Specify 14 VDC or 28 VDC.
Replaces the brand G A2064 series.
70966 series LED tail position light, is a high quality, long lasting, modern alternative to
incandescent & halogen tail position lights. It offers significant technological upgrades over
previous products. Utilizing LED technology, the following advantages are offered: Long Life
(approx. 20,000 hours); Reduced Power Consumption (compared to alternative light sources);
Shock & Vibration Resistant (no fragile filament to burn out); Light (produces bright
white light) and No EMI or RFI Interference. 3 Year Warranty.
SPECIFICATIONS:
Drawing Number: 70966
Exposed Height: 1.64 (42mm)
Length: 2.60 (66mm)
Width: 1.74 (44mm)
Power Consumption: 0.3 amps
@ 28 VDC
Weight: 0.3 lbs. (136gm)
Mfg Model#
Description
Part No.
Price
Buy
7096600
28 VDC - no connectors
Note: Replaces 01-0770805-00
(FAA TSO-C30c Type III)
11-01228
$438.95
7096601
28 VDC - connectors, case ground used on Beechjet
Note: Replaces 01-0770805-01
(FAA TSO-C30c Type III)
