WHELEN POWER SUPPLIES

HOW TO CHOOSE A POWER SUPPLY AND ABOUT COMETFLASH® The power supply needed depends on the application, and the mounting location. Model HDACF Series is a fuselage mounted power supply that will power two or three lights. Model A490ATSC Series is designed for installation adjacent to the strobe lighthead and will power one light assy. Model A490TCF Series is the most economical power supply when adding only one light. It mounts adjacent to the strobe lighthead assembly (not legal for light output with red strobe light). Most other Whelen power supplies are application specific, contact factory for details. Unless otherwise noted, all power supplies are CometFlash®. Whelen Engineering is proud to have introduced the CometFlash CF, a major advancement in the field of safety lighting. By pulsing the flash tube four times in rapid succession, the effective “on-time” of the strobe is increased from 2/1000 of a second to 4/10 of a second. This increases your airplane’s visibility. The development of the CometFlash reflects Whelen’s dedication to safety.

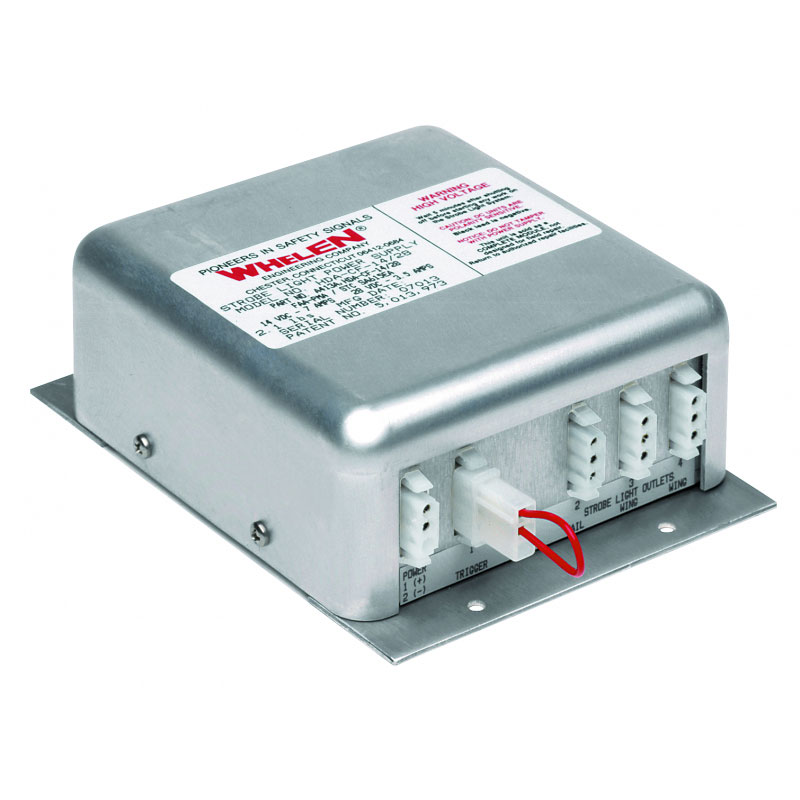

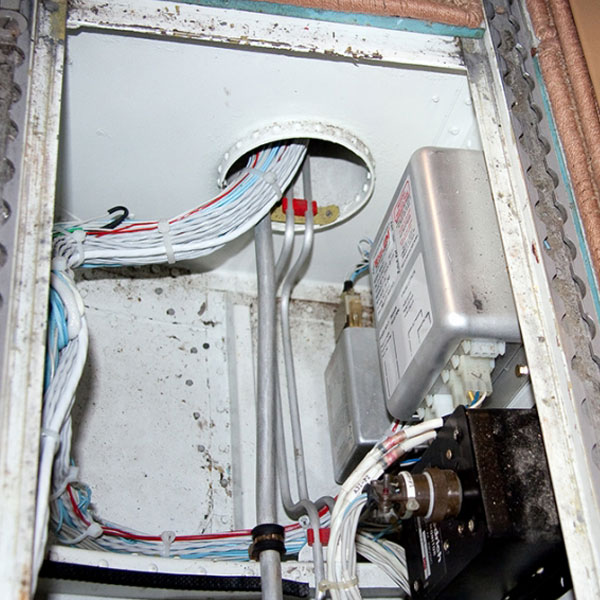

	MODEL HDACF SERIES HDACF series provides simultaneous flashing, alternate flashing or both. It will operate one, two or three strobe lightheads. Operating the wing tip strobes in the alternating mode will provide an accumulated 42 joules of power to each light. When in the simultaneous mode, the accumulated power to each light is 21 joules. In the three light mode, the wing tips will flash simultaneous at an accumulated 21 joules each, they alternate with a third light operating at an accumulated 42 joules. On the trigger selector outlet, a switch mounted in place of the jumper will allow wing tip outlets 2 & 3 to be turned off, while the tail outlet 1 will remain on. This function is commonly used when the third light is for ground operations. This power supply will operate from 10 to 30 VDC. SPECIFICATIONS: Drawing Number: 70028 • Power Consumption: 7.0 amps @ 14 VDC; 3.5 amps @ 28 VDC • Weight: 2.1 lbs. (953gm) • Length: 5.50” (140mm) • Width: 5.0” (127mm) • Height: 2.37” (60mm) PN 11-16218 FAA/PMA WHELEN HDACF 14V-24V $385.95 ($420.69CAN)


	MODEL A490ATSC SERIES A490ATSC series operates one strobe lighthead. Its compact size allows mounting in the wing tip and/or the tail, adjacent to the lighthead. It produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector. This power supply will operate from 10 to 30 VDC. SPECIFICATIONS: Drawing Number: 70062 • Power Consumption: 4.0 amps @ 14 VDC; 2.0 amps @ 28 VDC • Weight: 1.7 lbs. (771gm) • Length: 5.0” (127mm) • Width: 3.12” (79mm) • Height: 3.06” (78mm) PN 11-02666 FAA/PMA WHELEN A490ATSC POWER SUPPLY $291.95 ($318.23CAN)


	MODEL A490TCF SERIES A490TCF series operates one strobe lighthead. It is our most compact unit and can be mounted in the wing tip and/or the tail adjacent to the lighthead. It produces an accumulated 19 joules of power. It will only meet 400 CP when used with the A470A-W. This unit cannot be synchronized. This power supply operates from 10 to 30 VDC (not approved for use with red strobe light). SPECIFICATIONS: Drawing Number: 70006 • Power Consumption: 1.7 amps @ 14 VDC; 0.85 amps @ 28 VDC • Weight: 1.2 lbs. (544gm) • Length: 5.0” (127mm) • Width: 3.12” (79mm) • Height: 2.38” (60mm) PN 11-14714 FAA/PMA Power Supply with 20” leads, amp connectors $229.95 ($250.65CAN) PN 11-06406 Power Supply with 20” leads, Molex connectors $228.95 ($249.56CAN) PN 11-07600 Power Supply with 20” leads, no connectors $213.95 ($233.21CAN)


	MODEL A490TCCF SERIES A490TCCF series is the same as the A490TCF but has a mounting plate with additional holes that directly replaces factory installed systems on single engine Cessna’s, Aero Commanders, and Grumman Americans. SPECIFICATIONS: Drawing Number: 70006 • Power Consumption: 1.7 amps @ 14 VDC; 0.85 amps @ 28 VDC • Weight: 1.2 lbs. (544gm) • Length: 5.0” (127mm) • Width: 3.12” (79mm) • Height: 2.38” (60mm) PN 11-14714 FAA/PMA Power Supply with 20” leads, amp connectors $228.95 ($249.56CAN) PN 11-04493 Power Supply with 9” output, 7” input, leads (Cessna 172) $237.95 ($259.37CAN) PN 11-07601 Power Supply with 20” lds, ms conn on output ld $213.95 ($233.21CAN) PN 11-04494 Power Supply with 3” output, 7” input & 4 pos. amp conn (Cessna) (182,206) $237.95 ($259.37CAN)

	MODEL 90101 SERIES 90101 series is similar to the HTCF but has military connectors. It is available in SingleFlash or CometFlash®. Several different configurations are available for application specific installations. FAA TSO-C96a SPECIFICATIONS: •Drawing Number: 90101 •Power Consumption: 4 amps @ 14 VDC; 2 amps @ 28 VDC •Weight: 1.7 lbs. (771gm) •Length: 5.0” (127mm) •Width: 3.12” (79mm) •Height: 3.50” (89mm) PN 11-01972 WHELEN 9010104 POWER SUPPLY $468.95 ($511.16CAN)

	MODEL 90079 SERIES 90079 series is similar to the HDACF series, but has military connectors. Connectors 2 & 3 (wing tips) will operate simultaneously and will alternate with connector 1 (tail). When operating two lights, use connectors 1 & 2 to operate in the alternating mode. SPECIFICATIONS: • Drawing Number: 90079 • Power Consumption: 7 amps @14 VDC; 3.5 amps @28 VDC • Weight: 2.3 lbs. (1043gm) • Length: 5.50” (140mm) • Width: 5.0” (127mm) • Height: 2.40” (61mm) PN 11-04670 WHELEN 9007904 HDA POWER SUPPL $561.00 ($611.49CAN)

	MODEL HDHCF SERIES HDHCF series provides simultaneous flashing, alternate flashing or both (see HDACF for functions). It directly replaces factory installed units on Hughes 500 Series Helicopters. Unit can directly replace 60-1431 -1 & -3 power supplies without wiring or baseplate modifications. This power supply will operate from 10 to 30 VDC. SPECIFICATIONS: • Drawing Number: 70117 • Power Consumption: 7.0 amps @ 14 VDC; 3.5 amps @ 28 VDC • Weight: 2.1 lbs. (953gm) • Length: 5.50” (140mm) • Width: 5.0” (127mm) • Height: 2.37” (60mm) PN 11-03632 WHELEN HDHCF POWER SUPPLY $465.95 ($507.89CAN)

	MODEL HDS SERIES HDS series produces 20 joules of energy, SingleFlash, alternating between two light assemblies. The SingleFlash allows for a low current draw. This power supply will operate from 10 to 30 VDC. SPECIFICATIONS: • Drawing Number: 70169 • Power Consumption: 4.0 amps @ 14 VDC; 2 amps @ 28 VDC • Weight: 2.0 lbs. (907gm) • Length: 5.50” (140mm) • Width: 5.0” (127mm) • Height: 2.37” (60mm) PN 11-03279 WHELEN HDS1428 POWER SUPPLY $376.95 ($410.88CAN)

	MODEL C701881 C701881 series produces 15 joules of energy, SingleFlash. It can be synchronized with other like units by connecting with 18 gauge wire. This power supply operates from 10 to 30 VDC. Beech/Raytheon P/N - 100-384118-21. SPECIFICATIONS: • Drawing Number: 70188 • Power Consumption: 1.5 amps @ 14 VDC; 0.75 amps @ 28 VDC • Weight: 1.8 lbs. (816gm) • Length: 5.0” (127mm) • Width: 3.12” (79mm) • Height: 3.06” (78mm) PN 11-04133 WHELEN C701881 POWER SUPPLY $454.95 ($495.90CAN)

	MODEL C70178 C70178 series produces 20 joules of energy, SingleFlash. This power supply operates from 10 to 30 VDC. SPECIFICATIONS: • Drawing Number: 70178 • Power Consumption: 1.75 amps @ 14 VDC; 0.8 amps @ 28 VDC • Weight: 1.5 lbs. (680gm) • Length: 5.0” (127mm) • Width: 3.12” (79mm) • Height: 3.06” (78mm) PN 11-04132 WHELEN C701781 POWER SUPPLY $373.95 ($407.61CAN)

	MODEL A1610 SERIES A1610 series produces 22 joules of energy. This wing tip mounted power supply will operate from 10 to 30 VDC. Piper P/N 481-228 SPECIFICATIONS: • Drawing Number: 70168 • Power Consumption: 4 amps @ 14 VDC; 2 amps @ 28 VDC • Weight: 1.5 lbs. (680gm) • Length: 5.18” (132mm) • Width: 2.18” (55mm) • Height: 4.15” (105mm) PN 11-03666 WHELEN A1610TSC POWER SUPPLY $397.95 ($433.77CAN)
