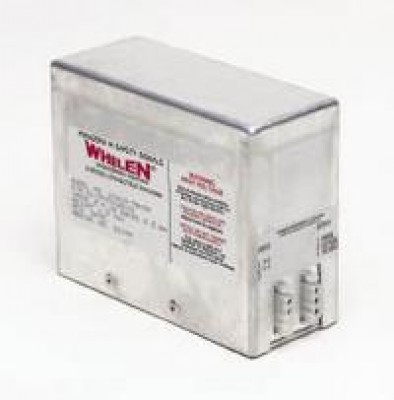

| WHELEN POWER SUPPLIES MODEL A1610 SERIES |
|
| |
(Click image for a larger view) | A1610 series produces 22 joules of energy. This wing tip mounted power supply will operate from 10 to 30 VDC. Piper P/N 481-228 |
|
| |
|
|
|
- Drawing Number: 70168
- Power Consumption: 4 amps @ 14 VDC; 2 amps @ 28 VDC
- Weight: 1.5 lbs. (680gm)
- Length: 5.18” (132mm)
- Width: 2.18” (55mm)
- Height: 4.15” (105mm)
|
| Description |
Part No. |
Price |
Buy |
| WHELEN A1610TSC POWER SUPPLY | 11-03666 | $493.95 |
|
|
