| WHELEN POWER SUPPLIES MODEL C701881 |
|
| |

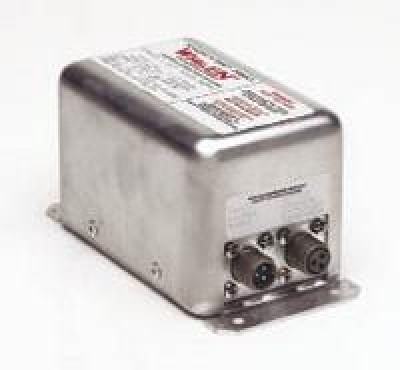

(Click image for a larger view) | C701881 series produces 15 joules of energy, SingleFlash. It can be synchronized with other like units by connecting with 18 gauge wire. This power supply operates from 10 to 30 VDC. Beech/Raytheon P/N - 100-384118-21. |
|
| |
|
|
|
- Drawing Number: 70188
- Power Consumption: 1.5 amps @ 14 VDC; 0.75 amps @ 28 VDC
- Weight: 1.8 lbs. (816gm)
- Length: 5.0” (127mm)
- Width: 3.12” (79mm)
- Height: 3.06” (78mm)
|
| Description |
Part No. |
Price |
Buy |
| WHELEN C701881 POWER SUPPLY | 11-04133 | $464.00 |
|
|
