DONALDSON AIR FILTERS

Donaldson has been the OEM source for Cessna, Piper, Beechcraft, and Maule & Mooney since the 1960's. They currently supply Cessna all of their SE Piston aircraft filters, Beech Bonanza & Baron filters, Mooney & Maul with their filters. For Piper they currently supply all of their Turbo charge aircraft with filters. Aircraft Spruce is a factory authorized distributor for Donaldson filters

*Images are representative of the product and may not be the exact item shown.

High Performance Engine Intake Filters
Synthetic media: offers improved air flow and better dust capturing efficiency
Engineered to last 500 Flight Hours
Washable filter element, use compressed air/warm soapy water
Visually inspect the filter at 100 hours remove and clean only as needed
See document P46-9075 for complete servicing details
Clean installation: dry media, no sticky/messy oil to trap dirt
OEM choice for GA aircraft for over 30 years
Meets All Flammability requirements per FAR 23.853
Solid Construction with no removable parts - no loose screens,
elements or screws
Dedicated Website to General Aviation products www.donaldson.aero/ga
Exceptional wet weather performance, no oil to wash away in wet weather
Moisture passes thru the filter, doesn't build up an oiled surfaces
(no oil present)
Only filters with * after part number have cellulous media
All filters starting with "P" feature our Premium Synthetic filter media
No Airworthiness Directives against Synthetic media filters
Cost efficient over the life of the filter, 3 years, 500 FH 5 cleanings

Click here to download 2010 Donaldson Cross-Reference Sheet in PDF format.

Donaldson	OEM	Description	PN	Price	Buy
P107150	C-294510-0201, 13203	C-150/152 & Various others Engine Intake air filter	08-06027	$91.50
P107172	C-294510-0301, 13219	C-170/172 Engine Intake air filter	08-06024	$106.95
P15-1936	PS600073 / 561-020	Piper PA-32R *(Engine Intake air filter)	08-06029	$72.25
P107336	C-294510-0401	C-172XP/ 337 Engine Intake air filter	08-06038	$91.50
AM102035FP	C-294510-0501	Engine Intake air filter	08-06052	$112.95
P106150	0750038-4	C-180/182/185 Engine Intake air filter	08-06023	$116.95
P131367	C-294510-0901	TR182/182R Engine Intake air filter	08-06042	$147.95
P107188	C-294510-0101	C-188 Engine Intake air filter	08-06043	$196.95
AM102135FP	1250704-3	C-206/207/210 Engine Intake air filter	08-06033	$119.50
AM102235FP	1250704-4	C-210 Engine Intake air filter	08-06046	$129.95
P107210	1250846-1	T206/T207/T210 Engine Intake air filter	08-06047	$89.50
P131364	C-294510-0801	T210N/P Engine Intake air filter	08-06049	$131.95
P108421	99100181	T310/320/335/401/402/421 Engine Intake air filter	08-06056	$74.50
P109337	C-294510-0701	337/T337 Engine Intake air filter	08-06051	$162.95
AM102035FP	C-294510-0501	Engine Intake air filter	08-06052	$112.95
P148670	C-294510-0902	T303 Engine Intake air filter	08-06053	$138.95
AM102735EA	9910018-2	310/401/402 Engine Intake air filter	08-06054	$88.50
AM102935EA	9910200-1	310R Engine Intake air filter	08-06055	$110.95
P128156	9913001-1	340/414 Engine Intake air filter	08-06028	$87.50
P128157	9910141-1	404 Engine Intake air filter	08-06057	$96.75
EBG03-0001	C-294501-0101	Instrument Air Filter Assembly, Cover & Filter element	08-06059	$111.95
P105290	C-294501-0203	Replaceable instrument Instrument air filter only, part of EBG03-0002 assy	08-06060	$35.50
AM103435IA	C-294501-0301	Instrument Air Filter	08-06035	$59.95
AM103535IA	C-294501-0302	Instrument Air Filter	08-06036	$53.25
P122322	169-380064-3	B19 Engine Intake air filter	08-06061	$91.95
P130374	45-91210, 13917	Debonair & Early Bonanza Engine Intake air filter	08-06062	$129.95
P105304	35-38005-5, -1	Bonanza Engine Intake air filter	08-06032	$96.50
P137627	35-380035-7	Bonanza Engine Intake air filter	08-06026	$88.50
P136680	105-389000-3	B76 Engine Intake air filter	08-06063	$116.95
P133881	P13-3881	B77 Engine Intake air filter	08-06064	$117.95
P128219	P12-8219, 122601, AM101020FP	95-55, A55, B55 Baron Engine Intake air filter	08-06065	$71.95
P127996	P12-7996, 121128-2, AM101120FP	C55, D55, E55 & 58 Baron Engine Intake air filter	08-06066	$79.75
P12-8167	96-389005-1	E55 & 58 Baron Engine Intake air filter	08-06025	$61.75

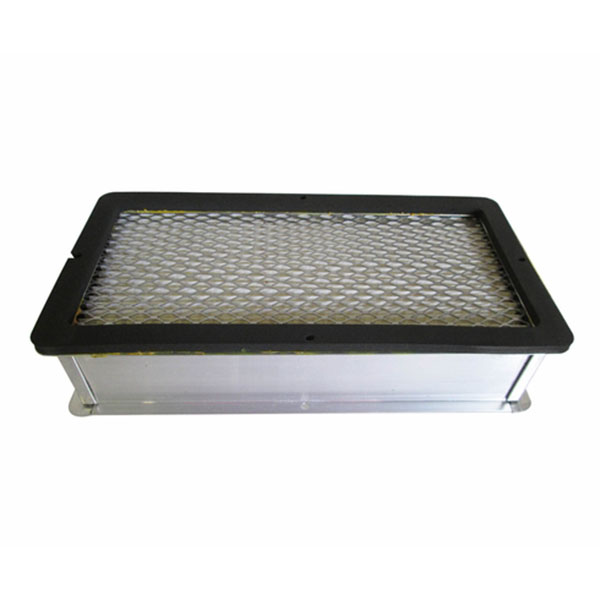

P108700	50-389070-15	Duke Engine Intake air filter	08-06067	$93.95
P124439	50-389070-23	58P Baron Engine Intake air filter	08-06069	$58.50
P105798	50-389070-11	A65, 70, B80 Engine Intake air filter	08-06070	$72.25
AM101720FP	50-389070-11	Engine Intake air filter	08-06071	$84.50
EBG03-0003	205538-089	Instrument air filter	08-06072	$101.95
EBG03-0018	101-380039-1	King Air Instrument air filter	08-06034	$45.75
P114419	26874-00 / 460-889	PA 23-250 Engine Intake air filter	08-06073	$162.95
P136602	560-584	PA-28-236 Engine Intake air filter	08-06074	$136.95
P138683	560-904	PA-28-236 Engine Intake air filter	08-06075	$134.95
P106590	560-747	PA-31 Engine Intake air filter	08-06076	$73.50
	460-609	PA-31P Engine Intake air filter	08-06077	$136.95
P136739	560-947	PA-32 Engine Intake air filter	08-06078	$203.95
P138580	86881-2, 560-953	PA-44T Engine Intake air filter	08-06080	$116.95
AM108365FP	P13-6287	M20K Engine Intake air filter	08-06081	$149.95
204418-156	77852	Lycoming Engine Spin on oil Filter adapter	08-06037	$161.95
P11-0172	C-294510-0601	Engine Intake air filter	08-06228	$213.95
P198281	P198281, CA3559	172R & 172S Engine Intake Filter	08-07051	$108.95
P198290	P198290, CA3717	182S Engine Intake Filter	08-07052	$108.95
P197268	P197268	T206H Engine Intake Filter	08-07053	$169.95
P13-0234	125997-010, BA6210	M20J Engine Intake Filter	08-07054	$97.25
ED04011	600417-501	M20K (s/n 25-1000 and up) engine intake Filter	08-07055	$92.50
ED04028	600417-503	M20M/R/S Engine Intake Filter	08-07056	$92.75
P10-5225	C-294501-0103	Various Instrument Air Filter	08-07057	$30.75

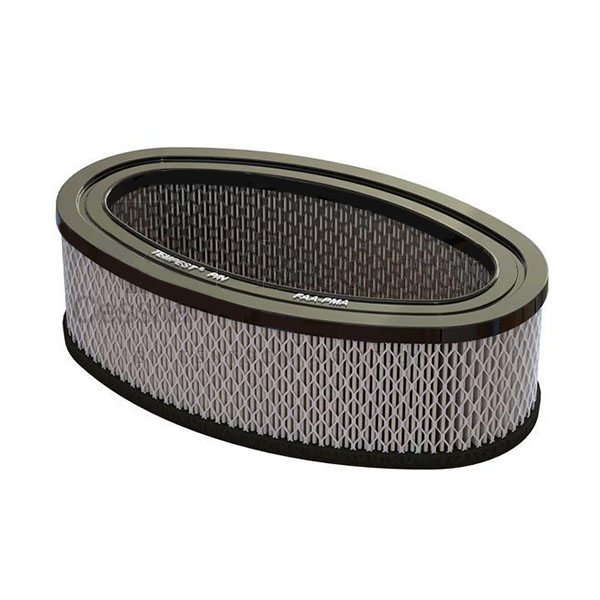

P617058	460-632	Oval Piper Filter PA28/PA34	08-07276	$71.95
P617053	460-630	Round Piper Filter PA28/PA44	08-07277	$70.95
P617774	460-629	Round Piper Filter PA23/32	08-07278	$59.95
