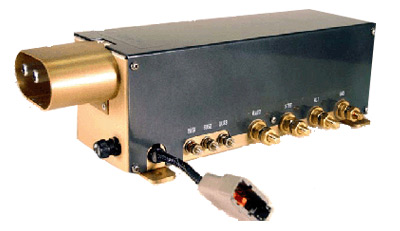

LAMAR MC10 MASTER ELECTRICAL CONTROL UNIT The Lamar MC10 is a master electrical control unit developed for 14V and 24V single engine experimental aircraft. It is designed to mount on the firewall or fuselage. It houses all the major electrical components except for the battery, starter, and alternator. The MC10 provides a greater degree of protection against moisture, dust and accidental electrical shorts along with the convenience of all the primary electrical components in one location. Features low installation cost, ease of installation and simplified troubleshooting and repair with several new performance and safety features. Starter The MC10 embodies the following functions: • Master (battery) (solenoid) control closing the master switch on pilot's panel connects the battery to the primary bus. • 3 aircraft bus outputs, protected via resetable circuit breakers. • Alternator Control; voltage regulation, overvoltage protection, field output over-load protection, alternator feeder fault protection • Starter control (solenoid) • Low voltage warning.(L model also includes overvoltage, over-current and reverse-current annunciation) • Battery charge/ discharge ammeter drive (current shunt) • Clock output (always-on) pro-tected with easily accesible external mounted fuse. • Ground power receptacle & control (solenoid) with reverse polarity protection. Description PN Price Buy Lamar PM1201-H EXP O/H Starter 08-01201 $294.95 Lamar NEW XT1260 Alternator Exper. 07-00837 $607.00 Lamar PM2401-H O/H Starter Exper. 08-02401 $308.95 Lamar XT2860 New Alternator 07-00839 $607.00 Lamar Master Control 14V Exp. 11-03295 $881.00 Lamar Master Control 28V Exp 11-03298 $994.95 Lamar AC14-EXP 28V 11-05041 $155.95 Lamar GC07-EXP Generator Control 11-05042 $1282.00 Lamar GC11-EXP Generator Control 11-05043 $1078.00 Lamar MC09-T1 Master Control Turbo 11-05055 $3500.00 LAMAR ELECTRICAL COMPONENTS LAMAR DESCRIPTION APPLICATIONS OUR P/N PRICE BUY A-00258-1 Switch, Alternator INOP Piper: PA23 Series, PA30, PA39, PA38, PA28 Series, PA32 Series, PA34-200T, PA34-220T, Maule*, Raytheon:A36, V358, F338, F33, F33A, F33C, E33a, V35A, 36 07-01146 $89.00 A-00258-2 Switch, Alternator INOP Piper: PA23 Series, PA31Series, PA34, PA31P, Twin Commander 700 Maule*, Raytheon: 57, E55., 5895B55, D55 07-01147 $85.00 B-00266-2 Overvoltage Relay, 28V, Piper Piper: PA23-235, PA23-250, PA31 Series, PA36 Series, Islander*: BN2A, BN2B, BN2T. BN2T-4, Trislander*: BN2A MK 11 Series 07-01148 $182.95 B-00286-1 Regulator, 28V, Parallel OP (twin) Piper:PA23-235, PA23-250, PA31, PA300, PA44-180/180T, PA31P, PA34-220T, Cessna*:421, 414, 402, 340, 310 07-01449 $282.95 B-00288-1 Regulator, 14V, Parallel OP (twin) Piper: PA23-235, PA23-250, PA30,PA39, PA34-200T, PA34-220T, PA44-180, PA44-180T, Gulfstream Aero* 07-01150 $236.95 B-00289-2 Overvoltage Relay, 14V Piper: PA18, PA30, PA39, PA23-235, PA23-250, PA28 Series, PA32 Series, PA34-220, PA34-220T, Beech*: 19A, B19, M19A, 23, A23, A23A, A23-19, A23-24, B23, C23, A24, A24R, B24R, C24R, Bellanca*: 14-19, 19-2, 19-3, 19-3A, 17-30, 31, 31TC, 17-30A, 31A, 31ATC, Citabria*: 70CAA, 7ECA, 7GCBC, 7KCAB, 1GCBC, 1KCAB, Commander*: 112, B, TC, TCA, Cessna*:175, 185, 188, Grumman*: AA-1, Lake*: LA-4, A, P, Maule*: M-5-180C, 235C, M-6-180, 235, M-7-235, MX-7-180, 235, Varga*: 2150A 07-01151 $172.95 B-00306-3 Regulator, 28V, Parrallel OP (twin) Piper: PA60, PA60-601, PA60-601P, PA60-602P, PA60-700P 07-01153 $249.95 B-00307-1 Voltage Regulator, 28V Twin Commander 700, 500s 07-01454 $220.95 B-00325-1 Timer, Pheumatic, 28V Piper: PA23 Series, PA31 Series, PA31T Series 07-01455 $114.95 B-00331-2 Voltage Regulator, Type 1, 14V Piper: PA38 11-04130 $154.95 B-00337-0 Overvoltage Relay, 28V Twin Commander 690C, 695, 695A, 690D, 695B 07-01456 $203.95 B-00337-1 Overvoltage Relay, 28V Twin Commander 700 07-01157 $203.95 B-00341-1 Time Delay Switch Piper: PA31 Series, PA42-720 07-01158 $209.95 B-00345-1 Thermostat Control Piper: PA31T, T1 07-01159 $378.95 B-00348-1 Time Delay Switch, Pulsed Piper: PA31T Series 07-01160 - NLA B-00353-1 Timer Module, Surface De-ice Piper: Pa31 Series, PA31P, PA42-720, PA42-1000 07-01161 $385.95 B-00363-1 Timer, Courtsey Light, Beech-28V Raytheon: E55, 58, 58TC, 58P, 38P, 38P-1, 38P-2, 390 07-01162 $190.95 B-00364-1 Timer Courtsey Light (15 min.) Piper: PA42-720, PA42-1000, PA46-350, PA31T Series 07-01163 $172.95 B-00364-2 Timer Courtsey Light (30 sec.) Piper PA 31 Series, PA46-310, PA46-350 07-01164 $172.95 B-00368-25 Alternator Control, 28V Load Experimental 11-03164 $217.95 B-00369-2 Timer (15 sec.) Piper: PA31T3 07-01166 $231.95 B-00371-1 Alternator Control, 14V Piper: PA 28 Series, PA32 Series, PA38, Bellanca*: 80CB, 8KCAB, Maule*: M-5-180C, 235C. M-7-235, MT-7-235, M-8-235, MX-7-180, MXT-7-160, 180, 235, Aviat*:Pitts S-2B, S2S, Zenair*: Zenith 2000 07-01167 $228.95 B-300371-25 Alternator Control, 14V Experimental 11-03163 $228.95 B-00372-1 Alternator Control,Load Balancing Raytheon: 58, E55, 95B55 07-01168 $565.00 B-00375-1 Monitor Low Voltage Twin Commander 690C, 690D, 695, 695A 07-01169 $79.00 B-00375-2 Monitor Low Voltage Piper: PA31P, PA31T Series, PA34 Series, PA46-310, PA46-350, PA31 Series 07-01170 $81.00 B-00378-4 Monitor Low Voltage, 14V Experimental 11-03166 $157.95 B-00378-5 Monitor Low Voltage, 28V Experimental 11-03167 $87.75 B-00380-1 Sensor-Alt Out, 28V Pulsed Raytheon: 58, E55, 95B55 B-00380-2 Sensor-Alt Out, 28V Pulsed Raytheon: 58 07-01171 $81.00 B-00382-1 Alternator Control, 28V Load Piper: PA31-350, PA34-220, PA46-310, PA46-350, PA31 07-01172 $338.95 B-00387-1 Voltage Regulator with Overvoltage Protection, 28V Raytheon: A36, F33A, B36TC, 58, V35B, F33C 07-01173 $316.95 B-00392-1 Alternator Control, 14V, Piper Piper: PA44-180, PA44-180T 07-01174 $490.95 B-00393-1 Motor Control Piper: PA46-310P, PA60-700P 07-01175 $506.00 B-00396-2 Dimmer Assembly, 14V/28V Experimental 11-03165 $163.95 B-00403-1 Voltage Regulator with Overvoltage Protection, 14V Raytheon: F33A, F33C, V35B, A36 07-01176 $326.95 * All astricked items are available through OEM only.
