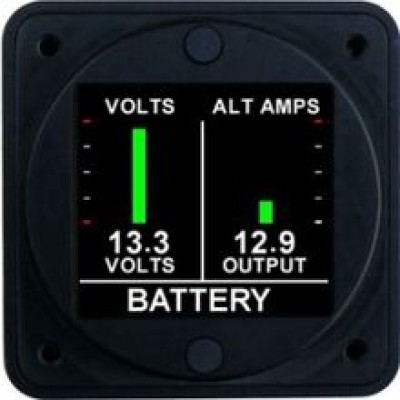

(Click image for a larger view) | The VA200 and VA202 are advanced, next generation voltmeter and ammeter
combinational instruments.
The ammeter unit of the VA200 may be used as either a normal ammeter,
indicating both charge and discharge current or a loadmeter, displaying the total
load on the alternator/generator.
The ammeter unit of the VA202 may be used as:- Left and right, normal ammeter, indicating both charge and discharge
current
- Left and right loadmeter, displaying the total load on both
alternators/generators.
- Main and auxiliary, normal ammeter, indicating both charge and
discharge current
- Single source, both ammeter and loadmeter
Functional displays in both instruments include:
- Real-Time analog data depiction and digital value display of bus voltage
and current
- Graphical trend display of both bus voltage and current data
Part numbers with suffix "K" include the necessary shunt/s |
