 Instruments - Davtron - 600 Series
Multi-Function
| |

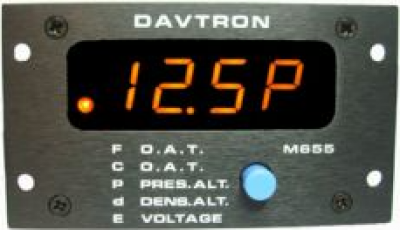

DAVTRON DENSITY/ PRESSURE/ ALTIMETER/ TEMPERATURE
MODEL 655 |
|
| |
| Pilot workload is reduced with five functions of Davtron's Model 655. Davtron’s Model 655 is a computer-based product that computes density altitude automatically. No longer does the pilot need to retrieve outside air temperature and pressure altitude, then enter this into a flight computer. The Model 655 measures outside air temperature, and accepts pressure altitude information from the blind encoder or encoding altimeter, then converts this information to a direct read-out of density altitude. The density altitude is computed using U.S. standard atmosphere tabulation. Take-off roll, maximum rate of climb, and fuel consumption are determined easily from density altitude and the aircraft’s flight manual.
Model 655-1
Model 655-2
Installation Eligibility - Beech Models 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33 and 35-A33
If your airframe is not listed for the unit you're installing you need to complete a 337 form and file with your local FSDO. Download FAA 337 Form
|
|
| |
|
|
|
- Density altitude: -10,000 to 70,000 ft.
- Pressure altitude: -1000 to 62,700 ft. (Depends on encoder range.
- Flashing annunciator character on incorrect encoder inputs.
- Temperature range: -55 °C to +100 °C ±2°C Typ. -67 °F to +212 °F
- Voltage range 10V to 32V
- Input voltage: 14 or 28 volts.
- Input current: .35 amps max.
- Weight: 5 oz.
- Warranty: 1 year
|
| Description |
Part No. |
Price |
Buy |
| DAVTRON DEN/PRESS ALT # 655-1 | 10-24515-1 | $274.95 |
|
| DAVTRON DEN/PRESS ALT # 655-2 | 10-24515-2 | $263.95 |
|
|
| Accessories |
Part No. |
Price |
Buy |
| DAVTRON PROBE 301 25FT | 11-04599 | $62.75 |
|
| DAVTRON PROBE 301 7FT | 11-04598 | $57.65 |
|
| DAVTRON NUMERIC DIGIT KW105G | 11-04611 | $37.50 |
|
| DAVTRON NUMERIC DIGIT KW115G | 11-04612 | $47.50 |
|
|
|
