 Instruments - Davtron - 800 Series
Clock
| |
| DAVTRON THREE-IN-ONE CHRONOMETER 811B |
|
| |
| Davtron Model 811B Three in One Chronometer features digital clock, flight time recorder, and an elapsed time meter. It consists of 3 independent 24 hour/6-digit (hours, minutes, seconds) solid state timing circuits. Bright incandescent display. The clock is set at the factory to accurate time (W.W.V.). Flight-time starts on takeoff, & elapsed time is controlled by the pilot. 2-1/4" clock mount. Wt: 7oz.

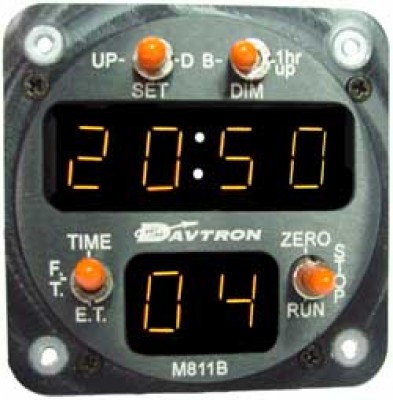

M811B

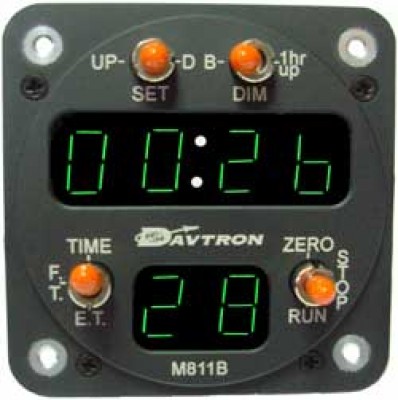

M811B with Night Vision Lighting
Download the product brochure here.
Installation Eligibility Bae Jetstream Models 3101, and 3201 Beech Models 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, and 35-A33 British Aerospace Model BAe/Avro 146 British Aerospace Model 125-700 DeHavilland Models Dash-8 Series 100(101,102,103) DeHavilland Models Dash-8 Series 300 (301,311) Falcon Models 10, 900EX, and 2000 Gates Learjet Models 24E, 24F, 25D, 25F, 35A, AND 36A IAI Models 1125WW Astra and Astra SPX Mystere Falcon Models 50, 200, and 900 Waco Model Classic WACO F5 and F5c If your airframe is not listed for the unit you're installing you need to complete a 337 form and file with your local FSDO.
Download FAA 337 Form |
|
| |
|
|
|
- Six digit display on all 3 functions
- Time function with 12 or 24 hour clock
- Flight Time Recorder: 24 hour
- Elapsed Time Meter: 24 hour
- Battery supplied with a typical two year operating life
- 6 volts 1 amp hr.
- Polaroid filter
- Input voltage: 14 volts
- Input current: .4 amps
- Maximum depth from mounting surface: 2.8"
- Weight: 7.5 oz.
- Crystal reference: .001% -40C to +50C
- Warranty: 1 year
|
| Description | Part No. | Price | Buy | 811B-12 CLOCK
12 HOUR | 11-05872 | $394.50 |
| 811B-12A
IS THE 811B-12 WITH THE GREY FACEPLATE | 10-03345 | $374.95 |
| 811B-24 CLOCK
24 HOUR | 10-24550-14 | $384.00 |
| 811B-24A
IS THE 811B-24 WITH THE GREY FACEPLATE | 11-05873 | $394.50 |
| 811BFTR24
IS THE 811B-24 WITH FLIGHT TIME RESET | 11-05874 | $398.95 |
| 811BFTR24A
IS THE 811BFTR24 WITH THE GREY FACEPLATE | 11-05875 | $381.95 |
| 811B-24-NVG
IS THE 811B-24 WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-03346 | $539.00 |
| 811B-24-NVG-15
IS THE 811B-24 WITH NIGHT VISION COMPATIBILITY W/ KW515-4F DISPLAYS (GREEN A) | 10-04723 | $524.00 |
|
|
| Description | Part No. | Price | Buy | | 811 MEMORY BATTERY PACK | 10-24560 | $17.90 |
| | 811B RESISTOR | 11-04607 | $3.95 |
| | 811 STANDARD FEMALE CONNECTOR | 11-04609 | $17.95 |
| | 811 INVERTING CONNECTOR | 11-04608 | $21.65 |
| | DAVTRON DIGITAL DISPLAY FOR MODEL 811B | 11-04613 | $38.25 |
|
|
|
