 Instruments - Directional Gyros - RC Allen

RC ALLEN 11D SERIES
VACUUM DIRECTIONAL GYRO
WITH HEADING BUG
AND AUTOPILOT OUTPUT


A 1/4"-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation.

A 1/4"-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation.

Meets of exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.

DIMENSIONSLength: 7.4 "
Height: 3.4"
Width: 3.4"
Weight: 3.0 Pounds

Model No. Description Part No. Price Buy

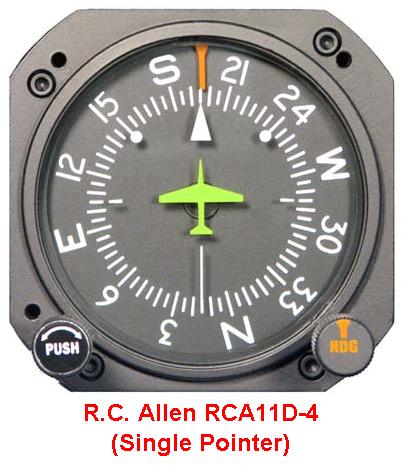

RCA11D-4Single Pointer, 400hz Autopilot with heading bug. Autopilot mating connector. Amphenol PN 126-223 or Winchester PN M5SH9C.
Autopilot pin out:
D:HDG SIG Input
B:HDG SIG Input Common
A:HDG SIG Output
E:HDG SIG Output Common
H: Spare
10-01117$1494.00

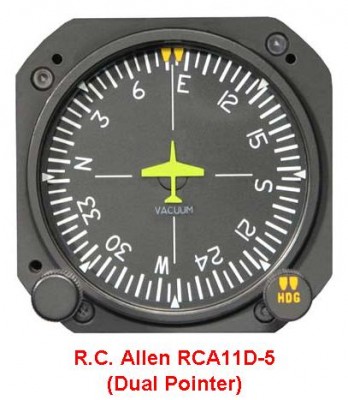

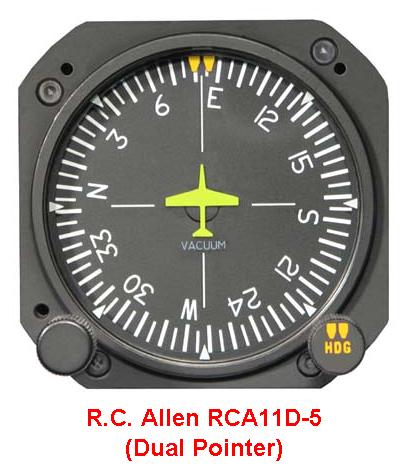

RCA11D-5Dual Pointer Autopilot with HEading Bug. Autopilot mating connector: Ampheonol PN 126-223 or Winchester PN M5SH9C
Autopilot pin out:
D: HDG SIG Input
B: HDG SIG Input Common
A: HDG SIG Output
E: HDG SIG Output Common
H: Spare
10-03430$1494.00
RCA11D-7With Heading bug only10-02931$1375.00
