RCA 15 SERIES GYRO WITH HEADING BUG
AND AUTOPILOT OUTPUT

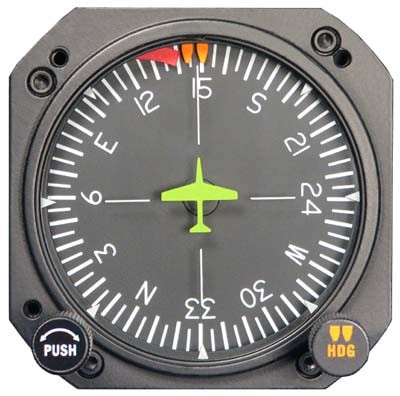

(Click image for a larger view)		RCA 15 Series Gyro heading Bug and Autopilot Output have a push to set knob, AC brush less motor, & power failure flag. These are unlit. Choose from 14 and 28 volt Directional Gyros with heading bug or 400HZ, 5K autopilot output. Autopilot output needs to be specified at the time of order.

Meets of exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.

  • Starting Current: @ 14 VDC 2.4A max.
  • Running Current: @ 14 VDC 1.2A.
  • Recommended Circuit Breaker: @ 14 VDC 3A
  • Starting Current: @ 28 VDC 1.4A max.
  • Running Current: @ 28 VDC .6A.
  • Recommended Circuit Breaker: @ 28 VDC 2A
  • Length: 7.4"
  • Height: 3.4"
  • Width: 3.4"
  • Weight: 3.0 pounds
Model No. Description Part No. Price Buy
RCA15AK-1614 Volt, 400Hz, 5K. Mating Connector MS3116E8-4S. Auto Pilot mating connector: Amphenol PN 126-223 or Winchester PN M5SH9C.
Connector pin out:
A: Ground Motor
B: +14 VDC Motor
C: Spare
D: Spare
Autopilot pin out:
D: HDG SIG input
B: HDG SIG Input Common
A: HDG SIG Output
E: HDG SIG Output Common
H: Spare		10-02530$2889.00
RCA15AK-1714 Volt, Heading Bug only. Mating Connector MS3116E8-4S
Connector pin out:
A: Ground Motor
B: +14 VDC Motor
C: Spare
D: Spare		10-02529$2738.00
RCA15BK-1628 Volt, 400HZ, 5K. Mating Connector MS3116E8-4S. Auto Pilot mating connector: Amphenol P/N 126-223 or Winchester P/N M5SH9C.
Connector pin out:
A: Spare
B:Spare
C:+28 VDC Motor
D:Ground Motor
Autopilot pin out:
D:HDG SIG INPUT
B:HDG SIG INPUT COMMON
A:HDG SIG OUTPUT
E:HDG SIG OUTPUT COMMON
H:SPARE		10-02533$2889.00
RCA15BK-1728 Volt, Heading Bug only. Mating Connector MS3116E8-4S
Connector pin out:
A: Spare
B: Spare
C: +28 VDC Motor
D: Ground Motor 		10-02532$2738.00
Accessories Part No. Price Buy
CONNECTOR MS3116E8-4S10-00791$24.95
Similar Items Part No. Price Buy
RC ALLEN 15AK-1 ELC DG LIT 1410-01681$2195.00
RC ALLEN 15AK-2 ELC DG 1410-01390$2089.00
RC ALLEN 15BK-1 ELC DG LIT 2810-01682$2195.00
RC ALLEN 15BK-2 ELC DG 2810-00501$2079.00
