  Instruments - Attitude Indicators - RC Allen

RC ALLEN
ELECTRIC ATTITUDE GYRO
RCA26 SERIES
AK(14V) AND BK(28V)

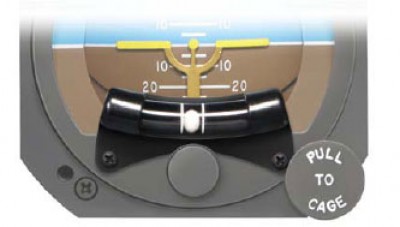

Pictured is the RCA26AK-1

The RCA26 series electric altitude gyro employs an electrically driven rotor to sense movement in the roll and pitch axis and transmits the information to the pilot through a pictorial presentation. They have a built in inverter which converts aircraft DC power to the required AC voltage and frequency. All units have a pull cage knob and a power failure flag. Slip indicator can be added upon request.

Mating connector (MS3116E8-4S) is also available.

ELECTRICAL REQUIREMENTS
DEMENSIONS

Starting Current @14 VDC: 2.4 A Max
Running Current @14 VDC:1.21 A Max
Starting Current @28 VDC: 1.40 A Max
Running Current@28 VDC: .62 A Max

Length: 8.14 in. max
Width: 3.38 in. max
Height: 3.38 in. max
Weight: 2.3 lbs.
Model No.
Description
Part No.
Price
Buy
RCA26AK-1
Standard look, 14 VDC, Lighted, Moveable pointer, Stationary roll dial. Connector Pin out: A:Ground Motor, B: +14 VDC Motor, C: Ground Lights, D: +14 VDC Lights.
10-00608
$2098.00 ($2286.82CAN)

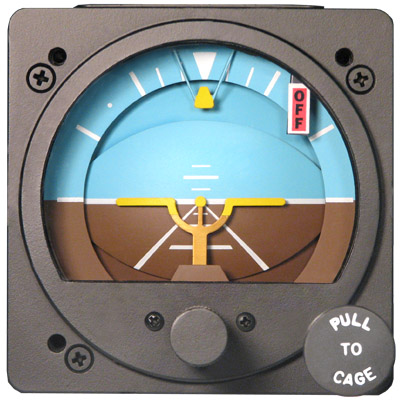

RCA26AK-2
Standard look, 14 VDC, Lighted, fixed pointer, moveable roll dial. Connector pin out: A: Ground Motor, B: Ground Lights, C: +14 VDC Motor, D: +14 VDC Lights
10-01683
$2093.00 ($2281.37CAN)
RCA26AK-2-8
Standard look, 8° Tilt, 14 VDC, Lighted, fixed pointer, moveable roll dial. Connector pin out: A: Ground Motor, B: Ground Lights, C: +14 VDC Motor, D: +14 VDC Lights
10-00392
$2070.00 ($2256.30CAN)

RCA26AK-3
Standard look, 14 VDC, Moveable pointer, sationary roll dial. Connector pin out: A: Ground Motor, B: +14 VDC Motor, C: Spare, D: Spare.
10-01118
$1989.00 ($2168.01CAN)
RCA26AK-4
Standard look, 14 VDC, Fixed Pointer, Moveable roll dial. Connector Pin out: A: Ground Motor, B: +14 VDC Motor, C: Spare, D: Spare
10-01392
$1989.00 ($2168.01CAN)

RCA26AK-4-8
Standard look, 8° Tilt, 14 VDC, Fixed Pointer, Moveable roll dial. Connector Pin out: A: Ground Motor, B: +14 VDC Motor, C: Spare, D: Spare
10-00391
$1960.00 ($2136.40CAN)
RCA26BK-2
Standard look, 28 VDC, Lighted, Moveable pointer, Stationary Roll Dial. Yellow airplane and pointer. Connector pin out.: A: GND Motor, B: GND Lights, C: +28VDC Motor, D: +28VDC Lights
10-01119
$2089.00 ($2277.01CAN)
RCA26BK-6
Standard look, 28 VDC, Fixed Pointer, Moveable Roll Dial. Yellow airplane and pointer. Connector pin out.: A: Ground Motor, B: Spare, C: +28 VDC Motor, D: Spare.
10-01393
$1960.00 ($2136.40CAN)
RCA26BK-8
Standard look, 28 VDC, Moveable pointer, Stationary Roll Dial. Connector pin out.: A: Ground Motor, B: Spare, C: +28 VDC Motor, D: Spare.
10-01120
$1960.00 ($2136.40CAN)
RCA26BK-9
Standard look, 28 VDC, Lighted, Fixed pointer, Moveable Roll Dial. Connector pin out.: A: Ground Motor, B: Ground Lights, C: +28 VDC Motor, D: +28 VDC Lights
10-00466
$2093.00 ($2281.37CAN)
RCA26BK-12
5° Tilt, 28 VDC, Lighted, Moveable pointer, fixed roll dial, blue/brown display w/ black roll dial, White pointer and airplane. Connector pin out: A: Ground Motor, B: Ground Lights, C: +28 VDC Motor, D: +28 VDC Lights
10-01122
$2070.00 ($2256.30CAN)
Accessories Part No. Price Buy
CONNECTOR MS3116E8-4S10-00791$24.95 ($27.20CAN)
RC ALLEN INCLINOMETER10-02586$149.95 ($163.45CAN)
