RC ALLEN 26EK SERIES GYRO
ELECTRIC ATTITUDE INDICATOR



The RCA26 Series is the top of the line and has been designed for precision and reliability.
The RCS26EK Series is a 12-30VDC instrument. You have a choice of a fixed or moveable pointer, and a 14 or 28 volt lighting.
Performance characteristics include roll indication of 360°. Pitch ± 30°. Pitch trim range ±7°. Slip Indicator can be added upon request.
Mating connector (MS3116E8-4S) is also available.

Pictured is the RCA26EK-11

ELECTRICAL REQUIREMENTS


DIMENSIONS

Starting Current @14 VDC: 2.4 A Max
Running Current @14 VDC:1.21 A Max
Starting Current @28 VDC: 1.4 A Max
Running Current@28 VDC: .62 A Max
Power Consumption 17 VA Max
Lighting 3 VA Max

  Length: 8.14 in. max
Width: 3.38 in. max
Height: 3.38 in. max
Weight: 2.3 lbs.

POWER FAILURE FLAG
ACTUATION RANGE


CIRCUIT BREAKER

Flag up @11VDC ± .5 VDC
Flag Down @ 10 VDC ± .5 VDC

  14VDC Input: 3 amps.
28VDC Input: 2 amps.

OPERATING TEMPERATURE: -30 TO +50 Degree Celsius

These instruments meet or exceed requirements of TSO C4c
and Aeronautical Standard AS396B

Model No.
Description
Part No.
Price
Buy
RCA26EK-6
12-30 VDC, Fixed Pointer, Unlighted, Orange Airplane and Pointer.
10-01328
$2075.00 ($2261.75CAN)
RCA26EK-7
12-30 VDC, Lighted, Orange Airplane and Pointer
10-01329
$2175.00 ($2370.75CAN)
RCA26EK-11

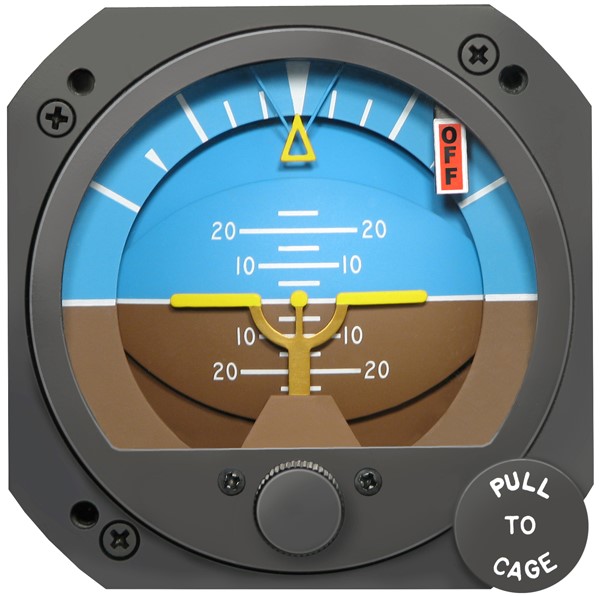

Fixed Pointer, unlit, with a yellow airplane and pointer. Tilt must be specified at the time of order. Pin out of connector. A: Ground, B; Spare, C: +12-30 VDC, D: Spare.
10-02524
$2175.00 ($2370.75CAN)
RCA26EK-12

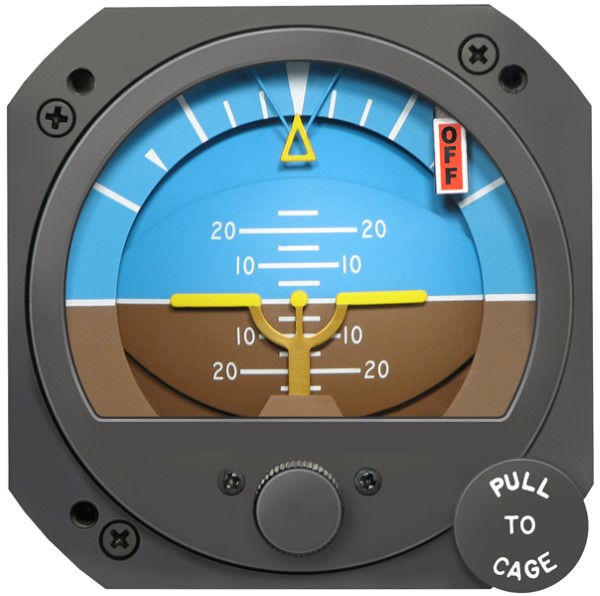

Fixed Pointer, lighted, with a yellow airplane and pointer. Voltage and tilt must be specified at time of order. Pin out of connector. A: Ground, B:Ground Lights, C: +12-30 VDC Motor, D: 0-28 VDC Lights.
10-02526
$2175.00 ($2370.75CAN)
RCA26EK-13

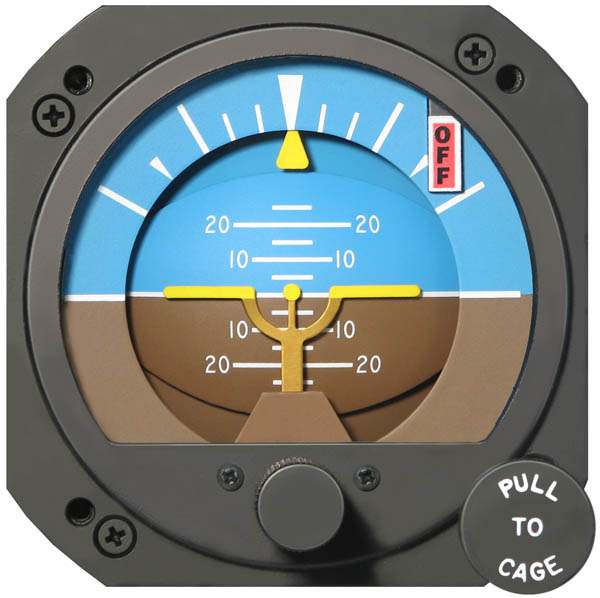

Moveable pointer, unlit, with a yellow airplane and pointer. Tilt must be specified at time of order. Pin out of connector. A; Ground, B: Spare, C: +12-30 VDC, D: Spare.
10-02527
$2175.00 ($2370.75CAN)
RCA26EK-14

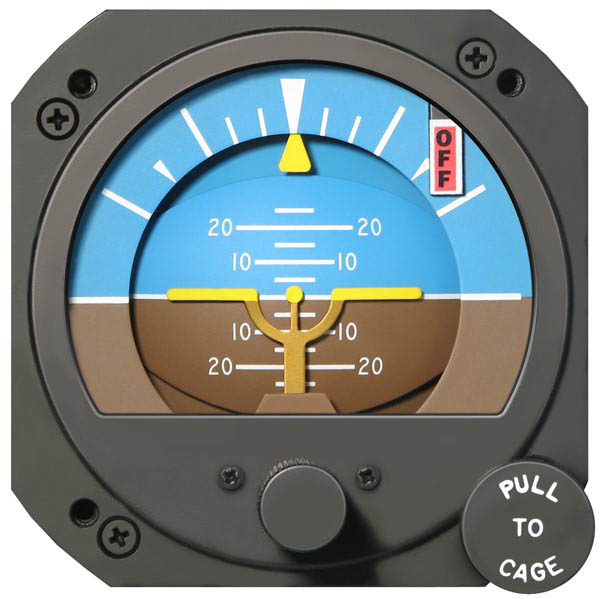

Moveable pointer, lighted, with a yellow airplane and pointer. Voltage and tilt must be specified at time of order. Pin out of connector. A: Ground, B:Ground Lights, C: +12-30 VDC Motor, D: 0-28 VDC Lights.
10-02528
$2285.00 ($2490.65CAN)
Accessories Part No. Price Buy
CONNECTOR MS3116E8-4S10-00791$24.95 ($27.20CAN)
RC ALLEN INCLINOMETER10-02586$149.95 ($163.45CAN)
