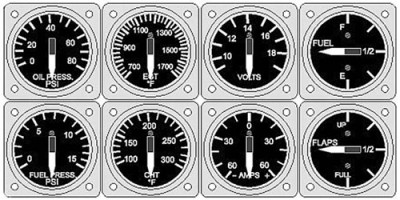

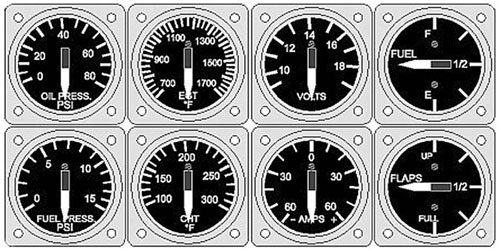

UMA 1-1/4” ENGINE INSTRUMENTS

Monitor your engine’s vitals with a full line of space saving 1-1/4” engine instruments with 240 degree analog sweep. These instruments allow you the opportunity to utilize panel space without compromising readability. No longer do you have to decipher cluster gauges or push buttons for readings or try to concentrate on flashing numbers. These premiere UMA instrument are electronic and can be powered from 14 or 28 volts. Signals are acquired from remote mounted sensors, processed and displayed on analog dials with easy to read markings. Each gauge uses rugged aircore meter movement for vibration resistance and repeatability. Each gauge can be placed in a 1-1/4” diameter hole and mounted behind the panel with (4) 6-32 screws. They can be cluster mounted as close as 11/2” centers.

ALL PART NUMBERS THAT BEGIN WITH THE LETTER "T" ARE TSO'd FOR CERTIFIED AIRCRAFT.

UMA #	Size & Type	Range/Sender Sender Range	Markings & Sweep	PN	Price	Buy
TO4 113V 130P 000	1 1/4" Oil Press	0-130 PSI (VDO)	B & W	10-00533	$181.95
TO4 1135 060P 000	1 1/4" Oil Press	0-60 PSI (Ashcroft)	B & W	10-00534	$157.95
TO4 1135 100P 000	1 1/4" Oil Press	0-100 PSI (Ashcroft)	B & W	10-00535	$181.95
TO4 1135 150P 000	1 1/4" Oil Press	0-150 PSI (Ashcroft)	B & W	10-00536	$179.95
TO4 1135 010B 000	1 1/4" Oil Press	0-10 Bar	B & W	10-00537	$181.95
TO4 112V 015P 000	1 1/4" Fuel Press	0-15 PSI (VDO)	B & W	10-00538	$181.95
TO4 112V 030P 000	1 1/4" Fuel Press	0-30 PSI (VDO)	B & W	10-00539	$181.95
TO4 112V 080P 000	1 1/4" Fuel Press	0-80 PSI (VDO)	B & W	10-00540	$181.95
TO4 1125 015P 000	1 1/4" Fuel Press	0-15 PSI (Ashcroft)	B & W	10-00541	$181.95
TO4 1125 030P 000	1 1/4" Fuel Press	0-30 PSI (Ashcroft)	B & W	10-00542	$181.95
TO4 1125 060B 000	1 1/4" Fuel Press	0-60 PSI (Ashcroft)	B & W	10-00543	$168.95
TO4 1125 100P 000	1 1/4" Fuel Press	0-100 PSI (Ashcroft)	B & W	10-00544	$168.95
TO4 1124 150B 000	1 1/4" Fuel Press	0-150 PSI (Ashcroft)	GA 59-115, RR@59-115	10-00545	$217.95
TO4 115V 015P 000	1 1/4" Water Press	0-15 PSI (VDO)	B & W	10-00546	$181.95
TO4 115V 030P 000	1 1/4" Water Press	0-30 PSI (VDO)	B & W	10-00547	$179.95
TO4 1155 015P 000	1 1/4" Water Press	0-15 PSI (Ashcroft)	B & W	10-00548	$181.95
TO4 1155 030P 000	1 1/4" Water Press	0-30 PSI (Ashcroft)	B & W	10-00549	$181.95
TO4 1145 2K0P 000	1 1/4" Hydraulic Press	0-2000 PSI (Ashcroft)	B & W	10-00550	$181.95
TO4 11A5 100P 000	1 1/4" Gearbox Oil Press	0-100 PSI (Ashcroft)	B & W	10-00551	$157.95
09 1100 0601 000	1 1/4" Flap Position IND	0-600	B & W	10-00553	$170.95
T12 113U 150C 000	1 1/4" Oil Temp	40-1550 0C	B & W	10-00555	$181.95
T12 113U 300F 000	1 1/4" Oil Temp	100-300 0F	B & W	10-00556	$181.95
T12 115U 150C 000	1 1/4" Water Temp	40-150 0C	B & W	10-00557	$181.95
T12 115U 300F 000	1 1/4" Water Temp	100-300 0F	B & W	10-00558	$181.95
T12 116U 150C 000	o1 1/4" CHT	40-150 0C	B & W	10-00559	$181.95
T12 116V 300F 000	1 1/4" CHT (VDO)	100-300 0F	B & W	10-00560	$181.95
T12 116J 530C 000	1 1/4" CHT	50-300 0C	B & W (Thermocouple)	10-00561	$181.95
T12 117K 1K7F 000	1 1/4" EGT	100-900 0C	B & W (Thermocouple)	10-00562	$181.95
T12 11AU 300F 000	1 1/4" Gearbox Temp	100-300 0F	B & W	10-00564	$148.95
T12 11T5 1K0C 000	1 1/4" Turbine Temp	0-1000 0C	B & W, 5V Input	10-00565	$157.95
T18 1125 1C10 000	1 1/4" Fuel Qty IND.	Empty to Full (cap 5V)	B & W (2700)	10-00566	$181.95
T18 1125 2C10 000	1 1/4" Fuel Qty IND.	Empy to Full (cap 5V)	B & W (1800)	10-00567	$181.95
T18 112F 1F10 000	1 1/4" Fuel Qty IND.	Empty to Full (float 240-30 ohms)	B & W (2700)	10-00568	$181.95
T18 112F 1F20 000	1 1/4" Fuel Qty IND.	Empty to Full (float 0-30 ohms)	B & W (2700)	10-00569	$181.95
T18 112F 1F30 000	1 1/4" Fuel Qty IND.	Empty to Full (float 0-90 ohms)	B & W (2700)	10-00570	$181.95
T18 112F 1F40 000	1 1/4" Fuel Qty IND.	Empty to Full (float 78-6 ohms)	B & W (2700)	10-00571	$181.95
T18 112F 1F50 000	1 1/4" Fuel Qty IND.	Empty to Full (float 10-180 ohms)	B & W (2700)	10-00572	$181.95
T18 112F 2F10 000	1 1/4" Fuel Qty IND.	Empty to Full (float 240-30 ohms)	B & W (1800)	10-00573	$181.95
T18 112F 2F20 000	1 1/4" Fuel Qty IND.	Empty to Full (float 0-30 ohms)	B & W (1800)	10-00574	$181.95
T18 112F 2F30 000	1 1/4" Fuel Qty IND.	Empty to Full (float 0-90 ohms)	B & W (1800)	10-00575	$181.95
T18 112F 2F40 000	1 1/4" Fuel Qty IND.	Empty to Full (float 78-6 ohms)	B & W (1800)	10-00576	$181.95
T18 112F 2F50 000	1 1/4" Fuel Qty IND.	Empty to Full (float 10-180 ohms)	B & W (1800)	10-00577	$181.95
15 11S0 P60A 000	1 1/4" Ammeter (2700) (w/shunt)	-60 to 60 A	B & W	10-00581	$193.95
15 11S0 P80A 000	1 1/4" Ammeter (2700) (w/shunt)	-80 to 80 A	B & W	10-00582	$193.95

Accessories	Part No.	Price	Buy
UMA INTERNAL LIGHTING OPTION (does not apply to 1-1/4", 2-1/4" Fuel Quantity Indicators)	11-07239	$49.95
UMA SPECIAL RANGE MARKINGS OPTION	10-02792	$95.50
