Landing Gear - Axles and Axle Nuts - Homebuilders

ACS HOMEBUILDERSMAIN AXLES

AXLES - BOLT-ON TYPE

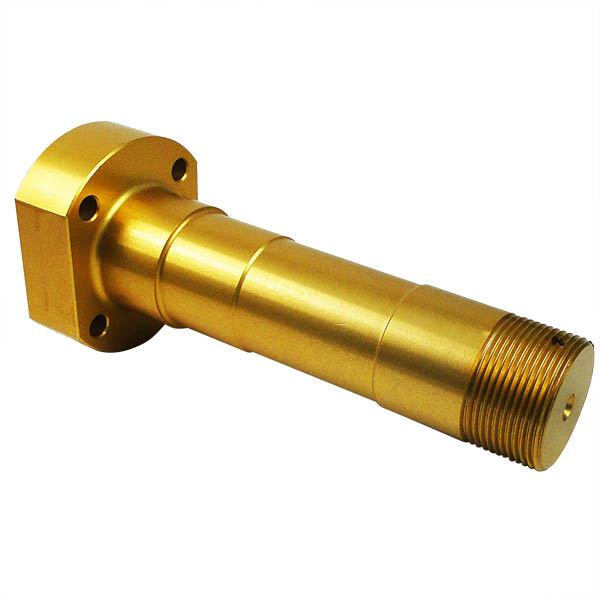

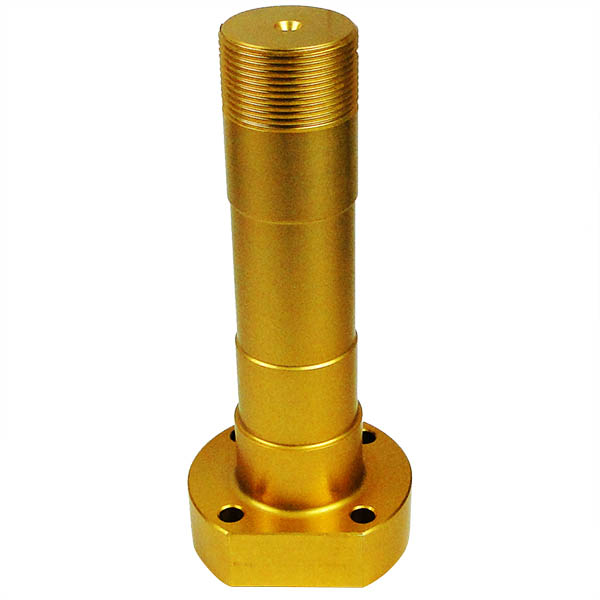

	500 X 5 AXLE P/N 11701 $42.50
	Machined from 2024T3 aluminum. Gold anodized per specification MIL-A-8625C, Type II for improved corrosion resistance. Length 5-3/4". Mounting bolt pattern is four equally spaced 1/4" dia. holes on 1-15/16" dia. bolt circle. Thread size: 1-1/4 x 16.
	500 x 5 AXLE P/N 11701-2 $44.75
	For 199-152 heavy duty discs (as used in Cozy). Same as #11701 axles above except 6" long and without undercut between bearings.

SPACERS FOR 500 X 5 AXLE

P/N 11716 $4.95

Two required per axle when used with Cleveland wheels. Not required on 600x6 size.

EXTRA WIDE SPACERS FOR 500 X 5 AXLE

P/N 11716-2 $6.25

7/16" wide as used on 199-152 heavy duty discs. One required per axle with P/N 11716 (Use Axle # 11701-2)

600 X 6 AXLE

P/N 11702 $65.25

Similar to 500 x 5 size but 1-1/2" dia. x 6-1/4" long. Two 5/16" dia. and two 3/8" dia. mounting holes on 2-1/4" dia. bolt circle. Thread size: 1-1/2 x 16.

9" Long with 5/8 x18 thread.

AXLES - WELD-ON TYPE
	500 X 5 AXLE P/N 11703-1 $31.75
	For use on welded type gear. Fabricated from 1-1/4" O.D. x .120 wall 4130N steel tubing. Precision ground for proper bearing fit. One end threaded 1-1/4 x 12 for round axle nut. 12" long.
	600 X 6 AXLE P/N 11704-1 $34.75
	For use on welded type gear. Fabricated from 1-1/2" O.D. x .120 wall 4130N steel tubing. Precision ground for proper bearing fit. One end threaded 1-1/2 x 16 for round axle nut. 12" long. DISCOUNTS (ALL SIZES): LESS 10% ON 6, 15% ON 12 (ASSORTED)

	AXLE NUTS
	The castle-type nuts are made of 4140 alloy steel per Military Standard Drawing MS21025 as required on certificated aircraft. Many being offered are made of mild steel. The round axle nuts are made of mild steel and are acceptable on all aircraft using this type of nut

MFG	Nut Type	Thread	Axle Type	PN	Price	Buy
Matco	Castle	5/8-18	Matco	06-11815	$2.35
Bild	Castle	1-1/4-16	Cessna	06-11800	$11.75
Bild	Castle	1-1/2-16	Cessna	06-11900	$12.90
ACS	Round	1-1/4-12	Piper	11725	$8.90
ACS	Round	1-1/2-16	Piper	11726	$8.95
Grove	Round	1-1/4-12	Piper	06-00937	$15.50
