GROVE WHEELS & BRAKES

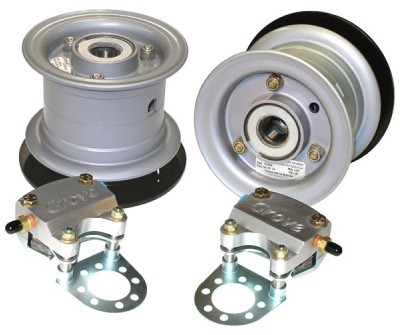

These 4" wheels are manufactured to the same exacting standards as the Grove 5" & 6" wheels. Manufactured from aerospace grade aluminum. They feature genuine Timken tapered roller bearing with felt grease seals. • 40-1 wheel has 2-3/4" tire bead width. • 40-3 wheel has 2-1/4" tire bead width. Grove Kit Number 40-101 shown Grove Kit No. Wheel No. Static Load Rating Pounds Kinetic Energy Ft-LBs Disc Thickness Inches Braking Torque Inch-LBS Caliper Number Piston Diameter Inches Brake Pad Number Axle Dia. Inches Weight Pounds (see Ref 1) PN Price Per Set (see Ref 2) Buy 40-101 40-3A 700 72,000 0.160 1,384 39-1 1x1.250 66-106 .75 4.05 06-00858 $440.95 40-102 40-1A 700 72,000 0.160 1,832 39-2 1x1.438 66-106 .75 4.16 06-00859 $429.95 50 Series - Grove's basic 5" wheel 51 Series - Lighter weight version of the 50 series 55,56 & 57 Series - Same wheel as the 50 series, but with heavier discs for greater kinetic energy and larger calipers for greater braking torque Available in Aluminum or Magnesium Grove Kit Number 57-124 shown Grove Kit No. Wheel No. Static Load Rating Pounds Kinetic Energy Ft-LBs Disc Thickness Inches Braking Torque Inch-LBS Caliper Number Piston Diameter Inches Brake Pad Number Axle Dia. Inches Weight Pounds (see Ref 1) PN Price Per Set (see Ref 2) Buy 50-101 50-1A 1,250 118,164 0.190 2,364 30-1 1x1.50 66-106 1.25 7.10 06-00094 $596.00 50-201 50-1M 1,250 118,164 0.190 2,364 30-1 1x1.500 66-106 1.25 6.10 06-00860 $595.00 51-101 51-1A 800 118,164 0.190 2,364 30-1 1x1.500 66-106 1.25 6.60 06-00589 $558.00 51-201 51-1M 800 118,164 0.190 2,364 30-1 1x1.500 66-106 1.25 5.60 06-00862 $639.75 55-112 51-1A 1,250 162,315 0.250 3,286 31-2 2x1.250 66-111 1.25 7.60 06-00863 $628.00 55-212 55-1M 1,250 162,315 0.250 3,283 31-2 2x1.250 66-111 1.25 6.45 06-00864 $617.00 56-113 56-1A 1,250 205,146 0.313 3,283 31-3 2x1.250 66-111 1.25 7.90 06-00095 $613.00 56-213 56-1M 1,250 205,146 0.313 3,283 31-3 2x1.250 66-111 1.25 6.80 06-00867 $698.00 57-124 57-1A 1,250 246,175 0.375 4,340 32-4 2x1.438 66-111 1.25 8.30 06-00096 $722.00 57-224 57-1M 1,250 246,175 0.375 4,340 32-4 2x1.438 66-111 1.25 7.20 06-00870 $723.00 60 Series - Grove's basic 6" wheel for 1-1/2" axles 61 Series - Lighter weight version of the 60 series 65 Series - Same as the 61 series, but for use with 1-1/4" axles 66 Series - Same as the 60 series but with heavier discs for greater kinetic energy and larger calipers for greater braking torugue Grove Kit Number 66-152 Shown Available in Aluminum or Magnesium Grove Kit No. Wheel No. Static Load Rating Pounds Kinetic Energy Ft-LBs Disc Thickness Inches Braking Torque Inch-LBS Caliper Number Piston Diameter Inches Brake Pad Number Axle Dia. Inches Weight Pounds (see Ref 1) PN Price Per Set (see Ref 2) Buy 60-162 60-1A 1,750 186,792 0.250 5,052 36-2 1x2.000 66-105 1.50 10.50 06-00101 $839.00 60-262 60-1M 1,750 186,792 0.250 5,052 36-2 1x2.000 66-105 1.50 9.20 06-00798 $768.00 61-111 61-1A 1,200 168,934 0.190 3,946 31-1 2x1.250 66-111 1.50 9.20 06-00590 $759.00 61-211 61-1M 1,200 168,934 0.190 3,946 31-1 2x1.250 66-111 1.50 8.10 06-00799 $786.00 65-207 65-1M 1,250 168,935 0.190 3,868 30-7 1x1.750 66-106 1.25 7.50 06-00879 $750.00 65-211 65-1M 1,250 168,934 0.190 3,946 31-1 2x1.250 66-111 1.25 7.62 06-00881 $759.00 65-222 65-5M 1,250 186,792 0.250 5,216 32-2 2x1.438 66-111 1.25 7.92 06-00883 $768.00 66-152 60-1A 1,750 186,792 0.250 7,734 35-2 2x1.750 66-106 1.50 11.15 06-00885 $865.00 66-154 60-5A 1,750 280,188 0.375 7,734 35-4 2x1.750 66-106 1.50 11.82 06-00886 $891.00 66-252 60-1M 1,750 186,792 0.250 7,734 35-2 2x1.750 66-106 1.50 10.10 06-00888 $901.00 66-254 60-5M 1,750 280,188 0.375 7,734 35-4 2x1.750 66-106 1.50 10.80 06-00890 $883.00 67-174 67-1A 2,200 280,188 0.375 7,734 37-4 2x1.750 66-105 1.50 14.25 06-00892 $1159.00 67-274 67-1M 2,200 280,188 0.375 7,734 37-4 2x1.750 66-105 1.50 12.50 06-00894 $1314.00 Note: Braking torque calculated at 600 psi brake line pressure. Ref 1: Weight for one wheel, disc and caliper assembly Ref 2: Set includes two wheel assembly
