 Landing Gear - Wheel and Brake Kits - Matco - Diecast - Application Chart

COMPLETE LISTING OF

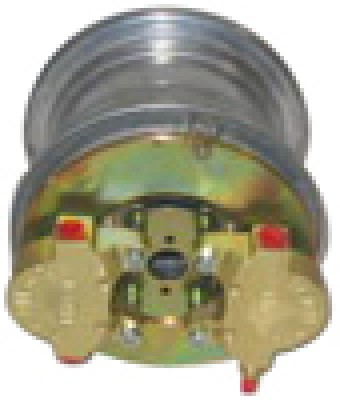

MATCO DIECAST WHEELS

Note: Our Prices Include 2 Wheels and 2 Brakes (Set)

*BB=Ball TRB=Taper Roll


Matco
Part No. 		Aircraft
Spruce
Part No.		Bearing
Axle Diameter*		Load
Limit
(lbs.)		Static
Capacity
(lbs.)		Brake
Reline
Kit
Weight
(lbs.)
Tire
Size
Tire
Type
W50CC 06-00470 0.625BB 2000 660 BRL-2 4.57 5" 11.0X4.05
W50CC.62D 06-00471 0.625BB 2000 660 BRL-3 4.82 5" 11.0X4.05
W50CC.75 06-00472 0.75BB 2000 660 BRL-2 4.57 5" 11.0X4.05
W50CC.75D 06-00473 0.75BB 2000 660 BRL-3 4.82 5" 11.0X4.05
W50CCD.75 06-00474 0.75BB 2000 660 2 BRL-2 5.35 5" 11.0X4.05
W50CCD.62 06-00475 0.625BB 2000 660 2 BRL-2 5.35 5" 11.0X4.05
W51CC 06-00476 0.625BB 2000 660 BRL-2 4.57 5" 5.00-5
W51CC.62D 06-00477 0.625BB 2000 660 BRL-3 4.82 5" 5.00-5
W51CC.75 06-00478 0.75BB 2000 660 BRL-2 4.57 5" 5.00-5
W51CC.75D 06-00479 0.75BB 2000 660 BRL-3 4.82 5" 5.00-5
W51CCD.75 06-00480 0.75BB 2000 660 2 BRL-2 5.35 5" 5.00-5
W51DCC.62 06-00481 0.625BB 2000 660 2 BRL-2 5.35 5" 5.00-5
W60CC 06-00482 0.625BB 2000 660 BRL-2 5.55 6" up to 6.00-6*
W60CC.75 06-00483 0.75BB 2000 660 BRL-2 5.55 6" up to 6.00-6*
W600CC 06-00484 0.625BB 2000 660 BRL-2 5.85 6" any 6 "
W600CC.75 06-00485 0.75BB 2000 660 BRL-2 5.85 6" any 6 "
W60CCD.62 06-00486 0.625BB 2000 660 2 BRL-2 5.55 6" up to 6.00-6*
W60CCD.75 06-00487 0.75BB 2000 660 2 BRL-2 5.55 6" up to 6.00-6*
W600CCD.62 06-00488 0.625BB 2000 660 2 BRL-2 5.85 6" any 6 "
W600CCD.75 06-00489 0.75BB 2000 660 2 BRL-2 5.85 6" any 6 "
W60CC.75R 06-00490 0.75TRB 2000 1185 BRL-2 5.85 6" up to 6.00-6*
W600CC.75R 06-00491 0.75TRB 2000 1185 BRL-2 6.15 6" any 6 "
W60CCD.75R 06-00492 0.75TRB 2000 1185 2 BRL-2 6.25 6" up to 6.00-6*
W600CCD.75R 06-00493 0.75TRB 2000 1185 2 BRL-2 6.55 6" any 6 "
W80CC-Z 06-00494 0.625BB 2000 660 BRL-1 8.75 4.80-8
Matco PN Part No. Price Buy
W50CC06-00470$469.95
W50CC.62D06-00471$539.00
W50CC.7506-00472$469.95
W50CC.75D06-00473$539.00
W50CCD.7506-00474$595.00
W50CCD.6206-00475$595.00
W51CC06-00476$469.95
W51CC.62D06-00477$539.00
W51CC.7506-00478$539.00
W51CC.75D06-00479$539.00
W51CCD.7506-00480$595.00
W51DCC.6206-00481$595.00
W60CC06-00482$469.95
W60CC.7506-00483$469.95
W600CC06-00484$489.95
W600CC.7506-00485$489.95
W60CCD.6206-00486$595.00
W60CCD.7506-00487$595.00
W600CCD.6206-00488$595.00
W600CCD.7506-00489$595.00
W60CC.75R06-00490$489.95
W600CC.75R06-00491$565.00
W60CCD.75R06-00492$616.00
W600CCD.75R06-00493$623.00
W80CC-Z06-00494$485.95
