MATCO WHEELS & BRAKES

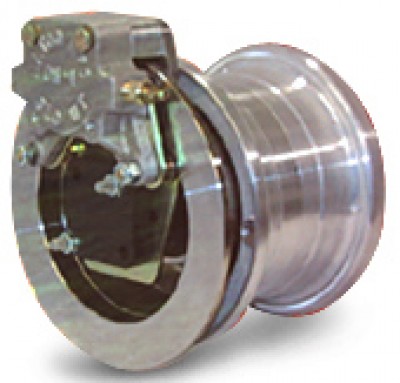

These custom-made, low-profile wheels with hydraulic brakes, are specially designed for light homebuilts. Wheels are cast using Almag 35 (MIL-A-10935, 36, 37), a high purity virgin magnesium-aluminum alloy. All models are of the same basic design and all kits below include 2 wheels and 2 brakes, ready to install. Average weight is 5.75 lbs. per wheel and wheel width is 4.5". Prices are per set (2 wheels, 2 brakes) Other suppliers offer them individually.   Wheel Size Popular Application Bearing Size Tire Used Part No. Price Buy 4-inch W40R 3/4" roller bearing Goodyear/ McCreary 06-02210 $512.00 5-inch (Lancair) W50S 1-1/4" x 4.56" axle Lamb 06-01660 $456.95 5-inch (Vari-Eze) W50L 1-1/4" x 5.75 " axle Lamb 06-01860 $456.95 5-inch W51S 1-1/4" x 4.75 " axle Goodyear/ McCreary 06-01960 $456.95 5-inch W51L (Mustang IIL) 1-1/4" x 5.75 " axle Goodyear/ McCreary 06-01710 $423.00 5-inch W51LT (High Perf.) Cozy MkIV 1-1/4" axle 3.084 bearing spc. Goodyear/ McCreary 06-00079 $555.00 6-inch Falco W60 Requires tube w/bend 1-1/4" x 4.75 " Any 06-02160 $432.00 6-inch Avid Flyer/ Murphy Aviation W62 Req. tube w/bend axle 3/4" roller bearing Any 06-02110 $432.00 Matco Tube with 90 deg. bend Use with 06-02160 or 06-02110 06-02111 $33.25 6-inch Gold Ltwt. External Caliper Brake 1-1/4" taper 600 x 6 06-00135 $549.00 5-inch Berkut, LongEZ 1-1/4" 11.0 x 4.0-5 06-00411 $544.00 5-inch W51LXT, Glasair III 1-1/4" 500-5 06-00412 $664.00 6-inch W600XT, Velocity, Seawind, Aercomp 1-1/2" Any 6" Tire 06-00413 $680.00 ONE SET OF MATCO BRAKE & WHEEL MATCO mfg produces a superior 6" inch wheel and brake assembly for use with aircraft requiring less than 660 lbs per wheel. Wheel sold separately. Prices are per set (1 wheel, 1 brake) Wheel Size Dimension Part No. Price Buy 6-inch Internal Caliper Diecast WHLW60CC.625 Click For Image The W60CC.625 is a 6" inch wheel with 4.38 inch width with an additional 1.75 inch caliper spacing. Bearing spacing is 3 inches and axle spacing is 1 inches. The total weight of this wheel and brake assembly is 5.05 pounds. The bearing axle diameter is 0.625 inches. 06-00938 $219.95 6-inch Internal Caliper Diecast WHLW60CCD.75 Click For Image The W60CCD.75 is a 6" inch wheel with 4.38 inch width with an additional 1.75 inch caliper spacing. Bearing spacing is 3 inches and axle spacing is 1 inches. The total weight of this wheel and brake assembly is 5.55 pounds. The bearing axle diameter is 0.75 inches. 06-00939 $208.95
