FLYTIES TIE-DOWN KIT

FlyTies Tie Downs Rated "Top Choice" by Aviation Consumer
FlyTies® unique design allows quick insertion and quick removal using the easy-out extraction tool provided. Rugged, die-cast steel rods are 3/8" x 14" for deeper penetration into harder ground. Cumulative load capacity is 3,600 lbs. Kit includes 3 ea. Delrin hubs, 9 ea. steel rods, 3 ea. 3/8" x 12 ' ropes, easy-out extraction tool, and rugged compact canvas tote bag. Complete kit weighs only 6 lbs. (less than 1 gal of Avgas) and has a lifetime warranty.

Dedication to Aviation Business	Designed by pilots-for pilots. In business for 9 years with its sole purpose being to perfect tie down stake technology.
Ease of Removal from Ground	Special extraction tool (provided) that allows quick and easy “straight out” removal. No side loading. Little effort exerted on operator even in hard soils.
Safety	Small footprint. Small surface area on the ground. (less than 3” in dia.)
Length of Stakes	14 inches
Type of Steel	Each stake is die-cast steel. High tinsel strength. Higher resistance to bending than heat treated or cold roll process.
Eyebolt	1 1/4 inch structural forged steel eyebolt with 5/16 inch shank. Rated for 1500 lbs.
Rope	Three strand polyester. Non-moisture absorbent. #1 recommendation by Aviation Consumer for rope of choice for pilots.
Hub	Strong, impact resistant, lightweight Delrin. Same material used on the space shuttle. Also, hockey pucks.
Ground Holding Area	By design, rods are directed down and OUTward to reach out to the maximum ground area possible.
Weight	Only 6 lbs. (Less than one gallon of Avgas)

Easy to assemble
Self cleaning action
Use in most unpaved surfaces
Long ropes for even the highest general aviation wings
Heavy duty canvas tote bag
Corrosion resistant
Weighs only 6 lbs.
Lifetime warranty

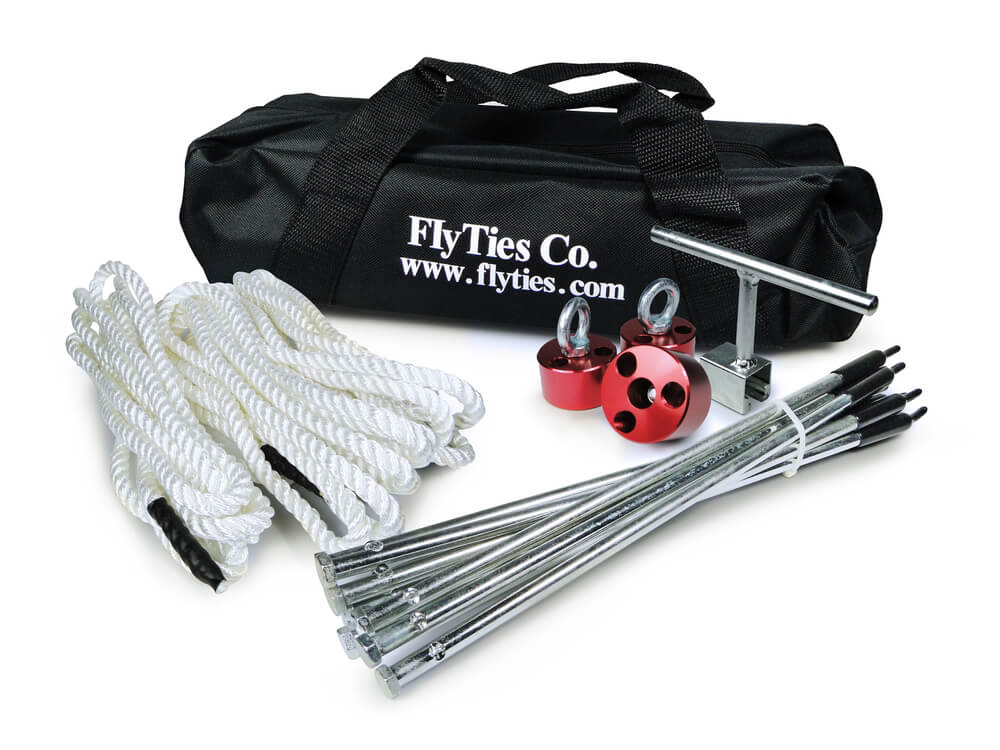

3 ea. Delrin hubs w/ forged steel eyebolt
9 ea. 3/8" dia. x 14" steel stakes
1 ea. extractor tool
1 ea. heavy duty canvas tote bag
1 ea. set of instructions
3 ea. polypropelyne ropes

Description	Part No.	Price	Buy
FLYTIES TIE-DOWN KIT	13-22751	$89.95
