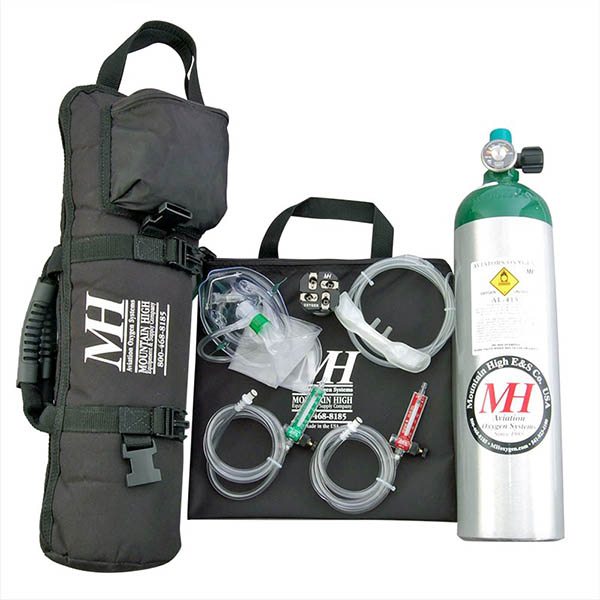

(Click image for a larger view) | The XCP is a low-cost, high-duration multi-place oxygen system. With the A3 and Oxymizer cannula each person will use at most 1.0 liter/min. at 18,000 ft. This makes it easy to calculate your cylinder life time. Example: If you have 415 liters and four persons and are to cruise at 18,000 ft., you would divide 415 by 4 which equals 103 min. per person. The flow rate at 18,000 ft. is typically only 3/4 (0.750) liter/ minute with the Oxymizer cannula.
However, 1.0 liter/min. isused as a worst-case scenario and for calculation conven- ience. The XCP delivery system consists of:
(1) XCP quad- port regulator with self-sealing outlets
(4) XCP face masks for use w/ the A4 flowmeter or nasal congestion
(4) Nelson A3 flowmeter/regulators with 3 feet of high quality tubing w/ CPC connectors and 4 Oxymizer® type "M" nasal cannulas
(1) Oxygen cylinder (AL-415 or AL-682)
(1)TuffPack padded fabric carry/strapping case for cylinder and equipment
XCP system comes w/ the A3 flowmeter/regulator. It has an alti- tude/flow scale calibrated for the unique Oxymizer oxygen- conserving cannula. The scale is marked in 2,000 ft. incre- ments for VFR flight levels up to 18,000 ft. You can operate the XCP in IFR flight levels with the optional A4 flowmeter/ regulator and associated F1 face masks. This will, use much more oxygen. All systems are shipped empty.
XCP Carry-on Systems Man-Hour Service Time
With The Nelson A3 Flowmeter and Oxymizer Cannula
|
|
|
|
|
|
|
|
|
|
|
Per-
sons |
10,000 ft. MSL |
14,000 ft. MSL |
18,000 ft. MSL |
|
XCP180 |
XCP415 |
XCP682 |
XCP180 |
XCP415 |
XCP682 |
XCP180 |
XCP415 |
XCP682 |
| 1 |
10:00 |
23:00 |
37:53 |
05:27 |
12:35 |
22:40 |
03:51 |
08:51 |
14:34 |
| 2 |
05:00 |
11:30 |
18:56 |
02:43 |
06:17 |
10:20 |
01:55 |
04:25 |
07:16 |
| 3 |
03:00 |
07:40 |
12:37 |
01:49 |
04:11 |
06:52 |
01:16 |
02:58 |
04:51 |
| 4 |
02:30 |
05:45 |
09:28 |
01:22 |
03:08 |
05:10 |
00:57 |
02:12 |
03:38 |
|
