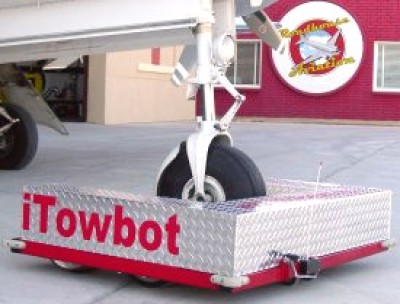

The iTowBot's loading sequence is as easy as driving the unit directly under the nosewheel of your aircraft. The iTowbot is engineered so that when the aircraft loads, the weight of the loaded aircraft does not inhibit its zero-turn capability. This allows the operator to articulate the aircraft in a manner that places it ahead of all other towing equipment.
Releasing the aircraft is just as easy. A foot-operated release allows the operator to unlock the swivel carriage and merely back out from beneath the nosewheel. Now the operator can simply drive the unit back to its spot in the hangar....no tugging, pushing or rolling up extension cords required!
Tulsa TowBots offers a precision, ruggedly built towing machine that will allow the user to position aircraft in close quarters with ease. The iTowBot has the ability to rotate the aircraft inside of its own wingspan. With its hybrid zero-turn capability and fully-articulating self-locking carriage, turn limits of the aircraft nose wheel cannot be exceeded. The powerful 24VDC motors are regulated for smooth starts and stops while delivering the power you need to put your aircraft asset out on the ramp or back in the hangar.
The iTowBot was specifically designed to provide adequate distance for the operator to tow an aircraft while stepping back to visually clear the areas around the aircraft. The operator should exercise caution in selecting the vantage point from which to operate the iTowBot.

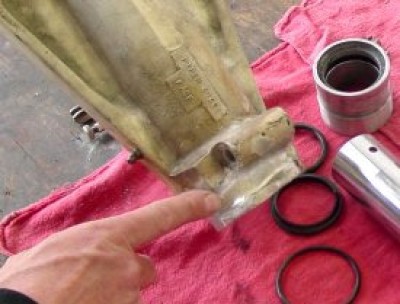

This is a picture of the nosewheel strut damage caused by exceeding the turn limits with a conventional tug. This cannot happen with the iTowBot, since the front wheel remains stationery while the iTowBot is free to turn through 360°. With its hybrid zero-turn capability and fully-articulating self-locking carriage, turn limits of the aircraft nose wheel cannot be exceeded.
The DX2.0 transmitter is designed to provide bulletproof 2.4 GHz spread spectrum radio link. With the DX2.0 DSM system there are no worries of frequency clip or radio interference from noisy motors or no reason to be concerned that someone may turn on a radio on your channel. The unit is user-friendly and offers many features and functions that the operator may desire. The receiver is bound to the transmitter at our facility prior to shipment so that the receiver will only recognize its specific transmitter that comes with your iTowBot. During the binding process, the motor fail safe positions are also set to further provide another level of safety.
Features:
Measures 38" Wide x 46" Long x 12" High
Powerful Reversible 24 Volt DC Motors
Rugged Steel Construction
Powder-Coated Frame
Virtually Zero Maintenance
Easy Ergonomic Remote Control Handset
Max Towing Speed 1.7 Feet Per Second
Overvoltage Thermally Protected
Tows Aircraft up to 15,000+ Pounds Gross Weight
Trouble Free Cast Iron Rims with Non-Marking Moldon Wheels
Solid State Heavy Duty Fully Articulating Motor Control
Hybrid Zero Turn Capability about Stationary Nosewheel
Built in Interference Protection Featuring Spektrum's New 2.4 Ghz Technology
Equipped with Solid State Battery Charger/Maintainer
Also available with built-in 24V Auxiliary Power Plug (APU) & Power Cord
The following YouTube videos show the iTowBot with a variety of aircraft. Click on the link of your choice.

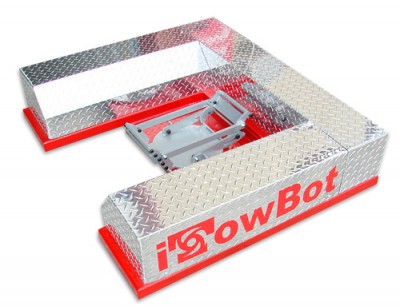

STANDARD UNIT
iTowBot is powered by 24 volts, capable of towing a 15,000 lb gross weight aircraft. Standard model comes with Standard Single Wheel Carriage. Carriage Swivels as well as iTowBot. Compatible with Options: TB8100, TB8200, TB8300
TOWBOTS STANDARD MODEL NO APU
PN 13-05252 $7499.00

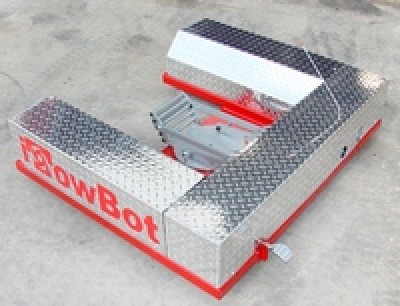

STANDARD UNITWITH APU
The iTowBot is now available with a built-in 24-Volt Auxiliary Power Plug and Power Cord for starting aircraft or running accessories on the ramp or in the hangar.
Compatible with Options: TB8100, TB8200, TB8300
TOWBOTS STANDARD MODEL WITH APU
PN 13-05253 $8499.00
DUAL WHEEL CARRIAGE
WITHOUT APU
iTowBot is powered by 24 volts, capable of towing a 15,000 lb gross weight aircraft. TB2000 has the Duel Nose Wheel Carriage. Carriage stays in fixed position within the iTowbot which can turn 360 degrees.
Compatible with Options: TB8100, TB8200 requires TB8400 (must be ordered together), TB8400, TB8500
TOWBOT DUAL WHEEL NO APU TB2000
PN 13-06896 $7695.00
DUAL WHEEL CARRIAGE
WITH APU
TowBot is powered by 24 volts, capable of towing a 15,000 lb gross weight aircraft. TB2000 has the Duel Nose Wheel Carriage. Carriage stays in fixed position within the iTowbot which can turn 360 degrees.
Compatible with Options: TB8100, TB8200 requires TB8400 (must be ordered together), TB8400, TB8500
TOWBOT DUAL WHEEL APU TB2100
PN 13-06897 $8695.00
WHEEL PANT UNITS
The Wheel Pant iTowBot is now available with a special carriage for supporting nose wheels with wheel pants. The iTowBot has been retrofitted with an electrically-actuated mechanism to grip the nose wheel and lift it from the hangar floor. It's perfect for fixed gear aircraft. No more damage to wheel pants while attempting to attach towbars to the landing gear. This unit is compatible with many helicopters as well. This unit is capable of towing 15,000 lb aircraft. Compatible with Options: TB8100
TOWBOT WHEEL PANT NO APU TB3000
PN 13-06898 $7495.00
WHEEL PANT UNITS WITH APU
The iTowBot is now available with a built-in 24-Volt Auxiliary Power Plug and Power Cord for starting aircraft or running accessories on the ramp or in the hangar. The built-in APU option is priced at only $1,000 in addition to the cost of your iTowBot. This option has to be ordered at the time of manufacturing.
Compatible with Options: TB8100
TOBOT WHEEL PANT APU TB3100
PN 13-06899 $8495.00
HEAVY DUTY ITOWBOTS
SINGLE WHEEL CARRIAGE
The Heavy Duty iTowBot incorporates gear reduction and is 36 volts to increase the capability of moving aircraft weighing up to 30,000 pounds. Single Wheel Carriage for Single Nose Wheel or Tail Dragger Aircraft.
Compatible with Options: TB8100, TB8200, TB8300
HEAVY ITOWBOTS SINGLE WHEEL CARRIAGE
PN 13-05734 $7999.00
HEAVY DUTY iTOWBOTS
SINGLE WHEEL CARRIAGE WITH APU
Heavy Duty iTowBot, Single Wheel Carriage with APU Plug and Power Cord. The iTowBot is now available with a built-in 36-Volt Auxiliary Power Plug and Power Cord for starting aircraft or running accessories on the ramp or in the hangar.
Up to 30,000lb and compatible with Options: TB8100, TB8200, TB8300
HEAVY ITOWBOTS SINGLE
WHEEL CARRIAGE APU
PN 13-05735 $8999.00
HEAVY DUTY
ITOWBOTS DUAL WHEEL CARRIAGE
The Heavy Duty iTowBot incorporates gear reduction and is 36 volts to increase the capability of moving aircraft weighing up to 30,000 pounds. Dual Nose Wheel Carriage. Compatible with Options: TB8100, TB8200 requires TB8400 (must be ordered together), TB8400, TB8500
TOBOTS HEAVY DUTY
DUAL WHEEL NO APU
PN 13-06901 $8195.00
HEAVY DUTY iTOWBOTS DUAL WHEEL CARRIAGE WITH APU
Heavy Duty iTowBot, Dual Nose Wheel Carriage with APU Plug and Power Cord. The iTowBot is now available with a built-in 36-Volt Auxiliary Power Plug and Power Cord for starting aircraft or running accessories on the ramp or in the hangar.
TOWBOT HEAVY DUTY WHEEL WITH APU
PN 13-06902 $9195.00
